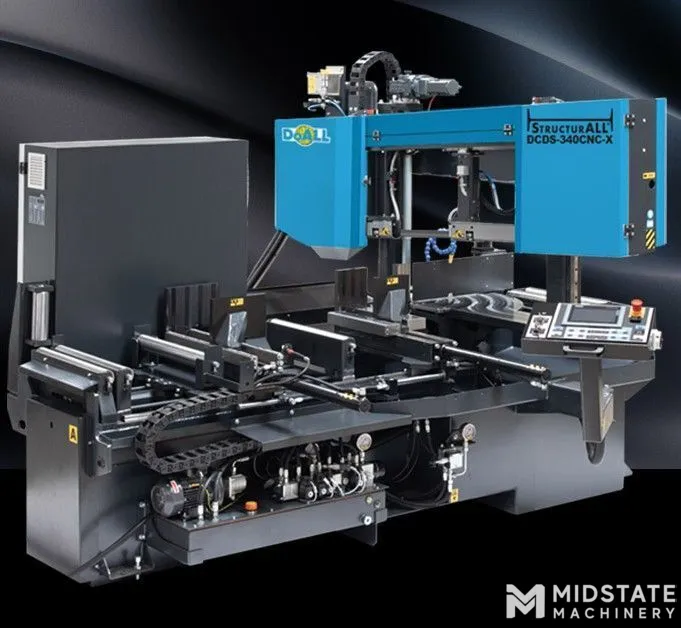

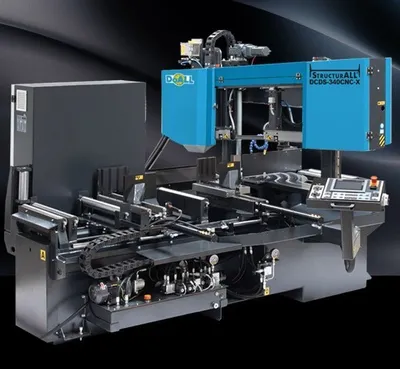

DOALL DCDS-340CNC-X StructurALL 13.2" x 19.5", New in 2027

General Specifications:
Rectangle Capacity at 90° 13.2 x 19.5 "(335mm x 495mm)
Round Capacity at 90° 13.75" (349mm)
Rectangle Capacity at 45° 13.2 x 14.9" (335mm x 379)
Round Capacity at 45° 13.75" (349")
Rectangle Capacity at 60° 9 x 13.2" (229mm x 335mm)
Round Capacity at 60° 9" (229mm)
Blade Drive Motor 4 hp (3kW)
Blade Speeds 65-328 fpm (20-100mpm)
Blade Size (LxWxGage) 188 x 1-1/4 x 0.042"
(4787.2 x 31.75 x 1.067 mm)
Auto Index Stroke Length 0.12-38" (3-965mm)
Max Nesting Capacity at 90° 7 x 13.7" (178 x 349mm)
Floor Space Required (LxWxH) 120 x 124 x79" *(3048 x 3150 x
2008mm)
Weight 4,704 lbs (2134kg)
Controller Type Siemens
