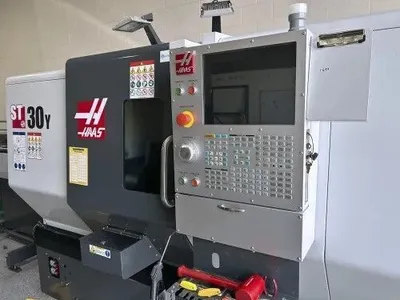

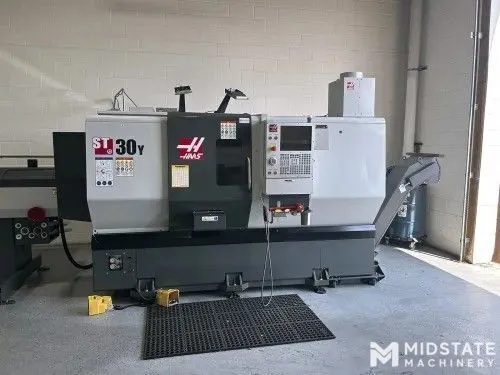

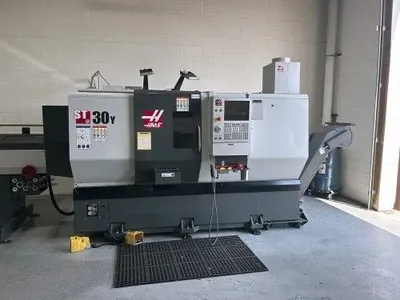

HAAS ST-30Y CNC Lathe, New: 2020

CHUCK SIZE 10"
MAXIMUM CUTTING DIAMETER 13.75"
MAXIMUM CUTTING LENGTH 32.5"
MAXIMUM BAR CAPACITY 3.00"
MAXIMUM PART SWING 21.0"
X-AXIS TRAVEL 9.40"
Y-AXIS TRAVEL ±2.00" / 4.00" total
Z-AXIS TRAVEL 32.50"
X-AXIS RAPID TRAVERSE 472 IPM
Y-AXIS RAPID TRAVERSE 472 IPM
Z-AXIS RAPID TRAVERSE 945 IPM
MAIN SPINDLE SPEED 3,400 RPM
MAIN SPINDLE MOTOR 30 HP
MAXIMUM SPINDLE TORQUE 300 ft-lb @ 500 RPM
SPINDLE NOSE A2-6
SPINDLE BORE 3.50"
C-AXIS Full interpolated C-axis
C AXIS POSITIONING ±0.01°

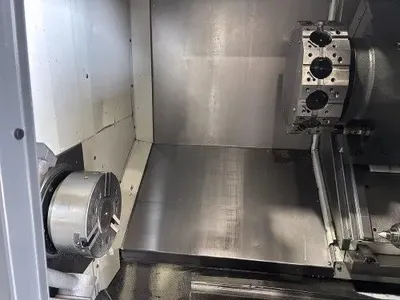

TURRET 12-Station BMT65
LIVE TOOLING SPEED 4,000 RPM standard
COOLANT CAPACITY 55 Gallons
MACHINE WEIGHT Approx. 11,340 lbs
CONTROL Haas Next Generation Control

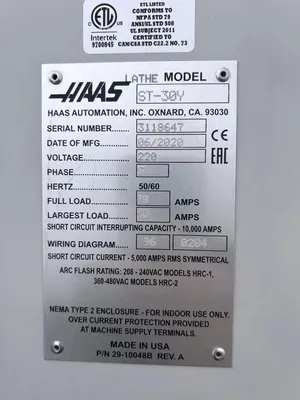

ELECTRICAL 220V / 3 Phase / 50-60 Hz
FULL LOAD 70 Amps
