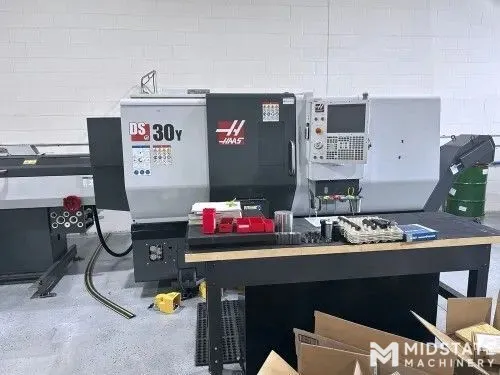

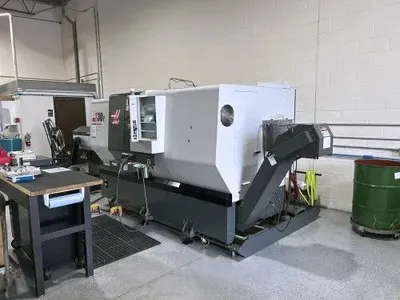

HAAS DS-30Y CNC Lathe, New: 2019

MAIN CHUCK SIZE 10"
SUB-SPINDLE CHUCK SIZE 8.3"
MAXIMUM PART SWING 21.0"
MAXIMUM CUTTING DIAMETER 13.75"
MAXIMUM CUTTING LENGTH 32.5"
MAXIMUM BAR CAPACITY 3.00"
DISTANCE BETWEEN CENTERS 32.5"
X-AXIS TRAVEL 9.40"
Y-AXIS TRAVEL ±2.00" (4.00" total)
Z-AXIS TRAVEL 32.50"
MAIN SPINDLE SPEED 4,500 RPM
MAIN SPINDLE MOTOR 30 HP
MAIN SPINDLE TORQUE 275 ft-lb @ 500 RPM
MAIN SPINDLE NOSE A2-6
MAIN SPINDLE BORE 3.50"
MAIN SPINDLE C-AXIS Full Interpolated C-Axis
C AXIS POSITIONING ±0.01°
SUB-SPINDLE SPEED 4,000 RPM
SUB-SPINDLE MOTOR 15 HP
SUB-SPINDLE TORQUE 100 ft-lb @ 870 RPM
SUB-SPINDLE NOSE A2-5
SUB-SPINDLE BORE 2.31"
SUB-SPINDLE C-AXIS Full Interpolated C-Axis
MAXIMUM SYNCHRONIZED SPEED 4,000 RPM
TURRET CAPACITY 12 Stations
TURRET TYPE BMT65
LIVE TOOLING SPEED 4,000 RPM
LIVE TOOLING DRIVE RATIO 1:1
COOLANT CAPACITY 55 Gallons
