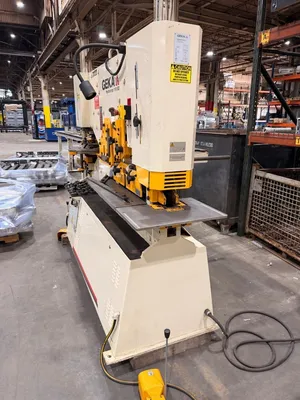

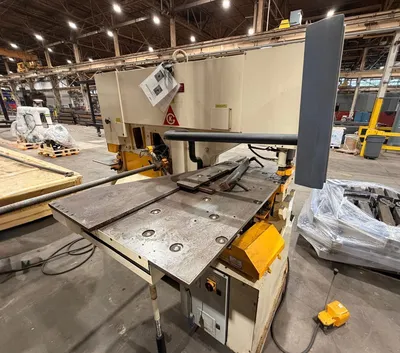

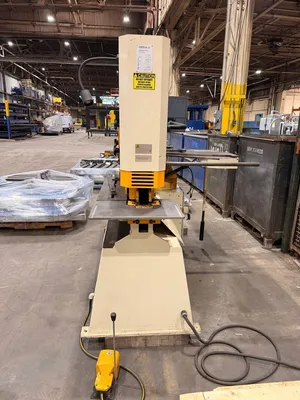

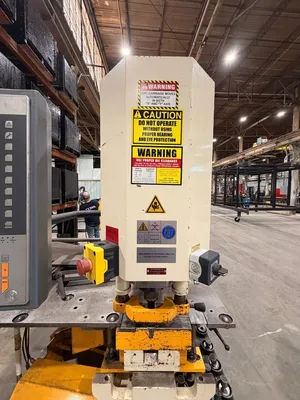

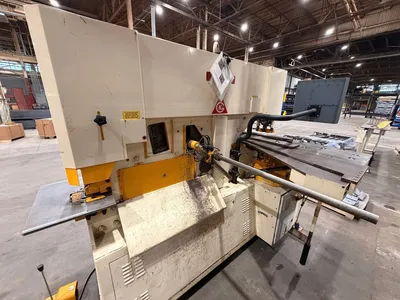

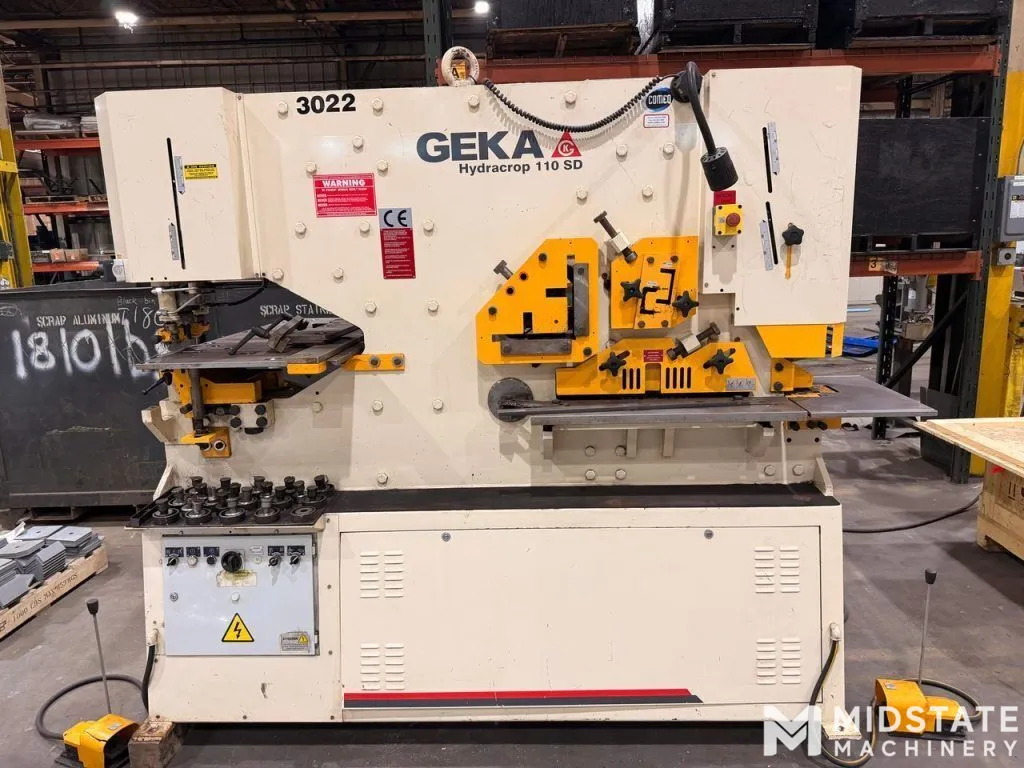

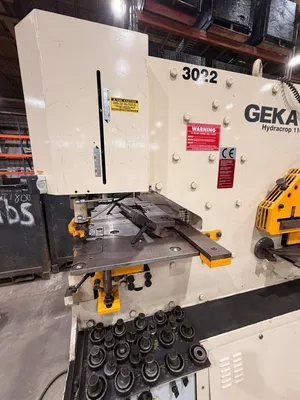

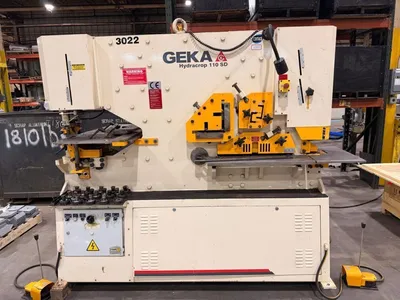

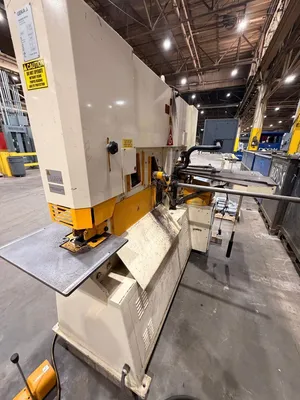

GEKA HYDRACROP 110/180 SD Hydraulic CNC Ironworker, New in 2017
Have one to sell?
ConditionUsed
1 available
GEKA HYDRACROP 110/180 SD Hydraulic CNC Ironworker, New in 2017
General Specifications:
Tonnage Capacity, Punch End: 110 Ton
Tonnage Capacity, Angle Shear: 180 Ton
Throat Depth: 24″
Stroke Length: 3-5/32″
Working Height: 45-1/8″
Flat Shear Blade Length: 24″

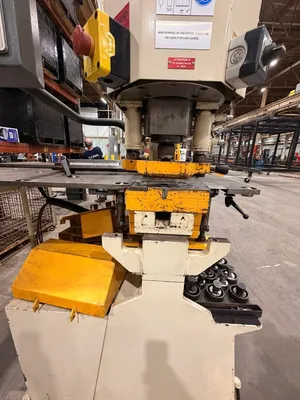

Punching Capacity: 1-1/2″ Diameter Thru 3/4″ Plate
Shearing Capacity, Flat Bars: 24″ x 5/8″
Shearing Capacity, Flat Bars: 16″ x 3/4″
Angle Shearing Capacity, 90°: 6-1/2″ x 6-1/2″ x 1/2″
Angle Shearing Capacity, 45°: 3″ x 3″ x 5/16″
Shearing Capacity, Round Bars: 2″
Shearing Capacity, Square Bars: 2″

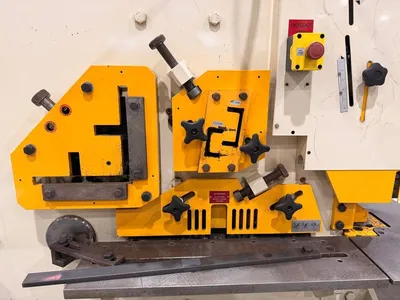

Notching Capacity, Width: 2″
Notching Capacity, Depth: 3-1/2″
Notching Capacity, Plates: 1/2″
Motor HP: 7.5

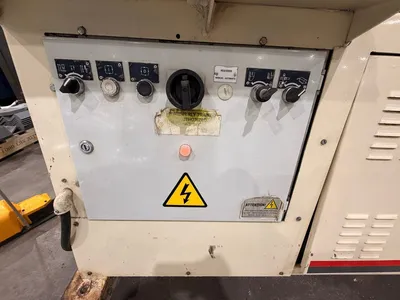

Electrical: 220/440V(Wired 440)/3PH

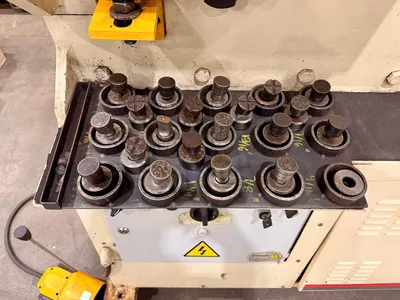

Misc tooling

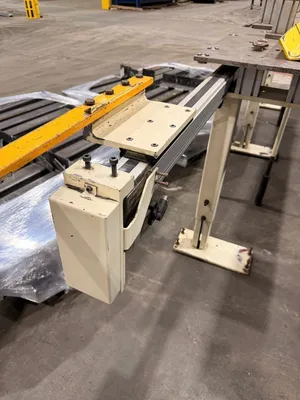

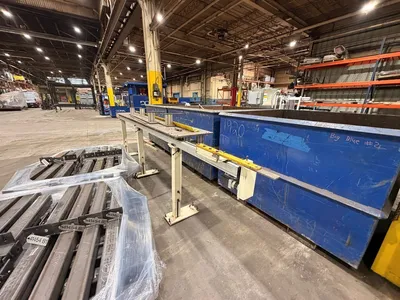

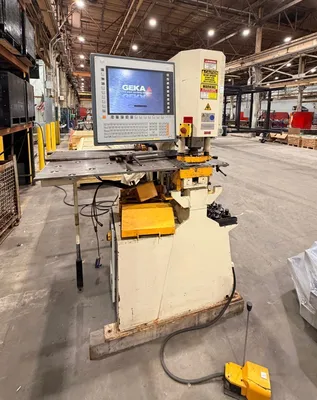

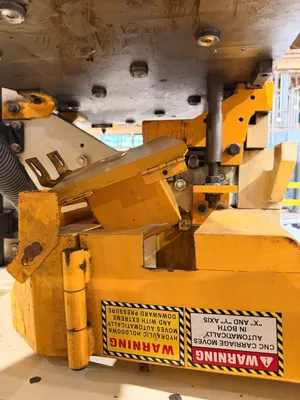

CNC feeder/ positioner (Semi-Paxy CNC Automatic Positioner)
Features and specifications for the Semi-Paxy CNC Automatic Positioner
Basic features:
Support chassis
Two servo motor-driven positioning carriages

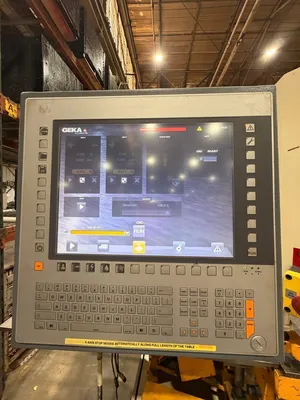

Touch screen

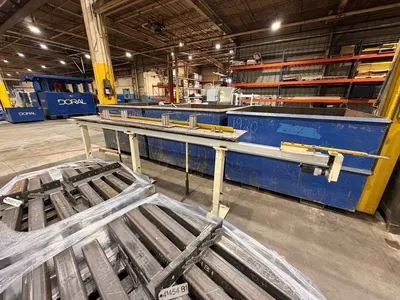

Conveyor assembly consisting of independent servo drives along each axis, spindle and encoder units
Maximum Widths according to Model:
HYDRACROP or PUMA (20″ throat) = 15 3/4″ Y Gauging.
HYDRACROP Models 110SD and 165 SD = 20″Y Gauging.
PUMA (30″ throat) = 25 5/8″ Y Gauging.
GEKA HYDRACROP 110/180 SD Hydraulic CNC Ironworker, New in 2017
Imperial
| Tonnage | 121.254 T |
| Angle (L1) | 5.98" |
| Angle (L2) | 5.98" |
| Angle (T) | 0.5118" |
| Throat | 24" |
General Specifications:
Tonnage Capacity, Punch End: 110 Ton
Tonnage Capacity, Angle Shear: 180 Ton
Throat Depth: 24″
Stroke Length: 3-5/32″
Working Height: 45-1/8″
Flat Shear Blade Length: 24″
Punching Capacity: 1-1/2″ Diameter Thru 3/4″ Plate
Shearing Capacity, Flat Bars: 24″ x 5/8″
Shearing Capacity, Flat Bars: 16″ x 3/4″
Angle Shearing Capacity, 90°: 6-1/2″ x 6-1/2″ x 1/2″
Angle Shearing Capacity, 45°: 3″ x 3″ x 5/16″
Shearing Capacity, Round Bars: 2″
Shearing Capacity, Square Bars: 2″
Notching Capacity, Width: 2″
Notching Capacity, Depth: 3-1/2″
Notching Capacity, Plates: 1/2″
Motor HP: 7.5
Electrical: 220/440V(Wired 440)/3PH
Misc tooling
CNC feeder/ positioner (Semi-Paxy CNC Automatic Positioner)
Features and specifications for the Semi-Paxy CNC Automatic Positioner
Basic features:
Support chassis
Two servo motor-driven positioning carriages

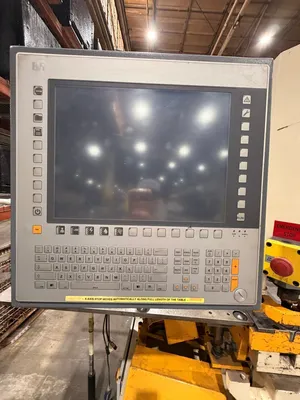

Touch screen
Conveyor assembly consisting of independent servo drives along each axis, spindle and encoder units
Maximum Widths according to Model:
HYDRACROP or PUMA (20″ throat) = 15 3/4″ Y Gauging.
HYDRACROP Models 110SD and 165 SD = 20″Y Gauging.
PUMA (30″ throat) = 25 5/8″ Y Gauging.
