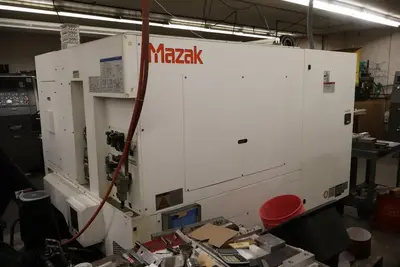

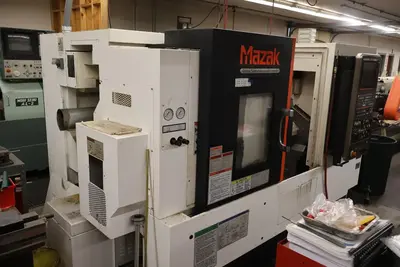

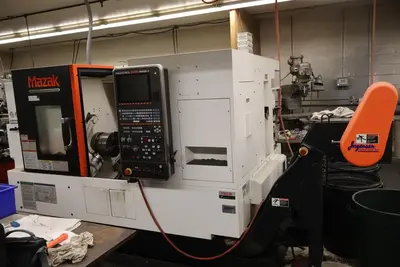

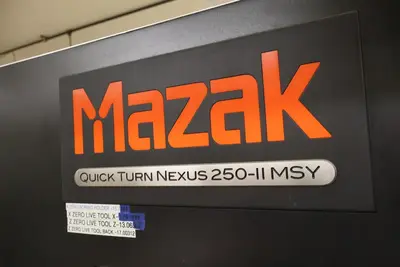

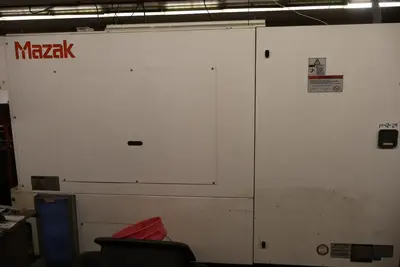

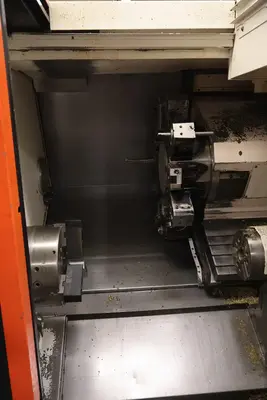

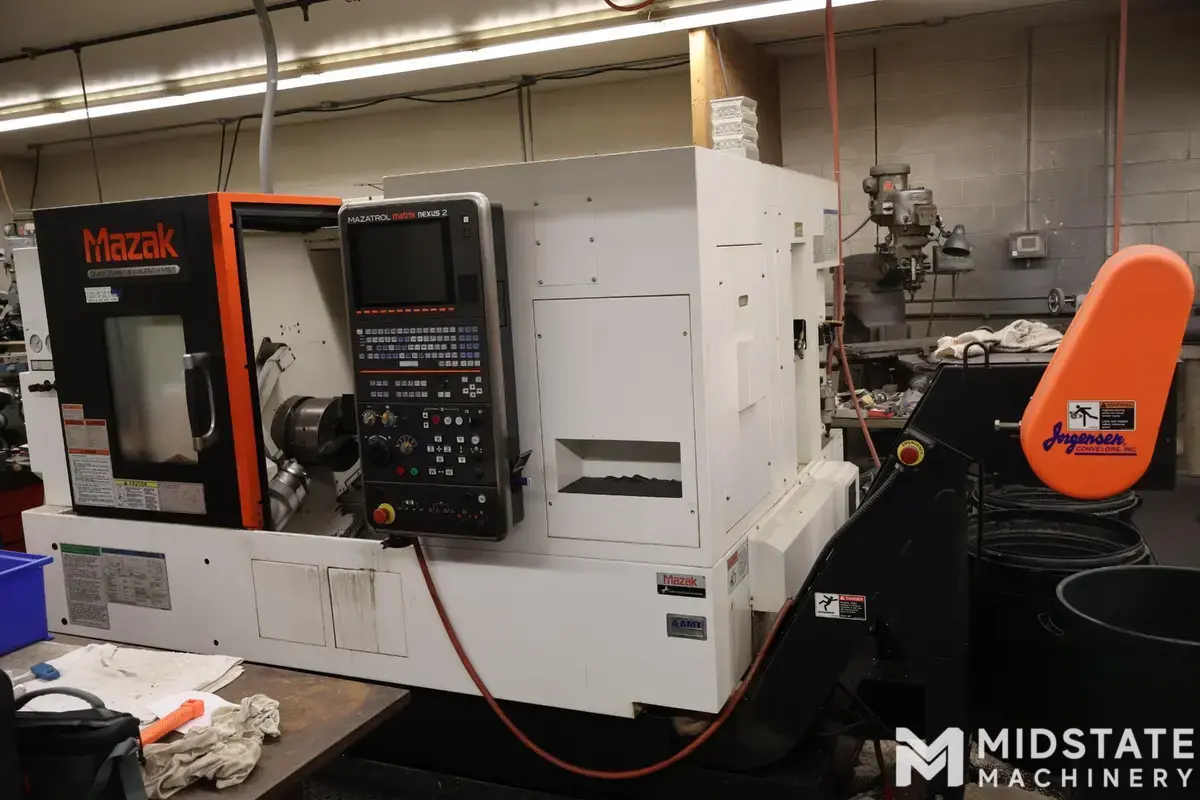

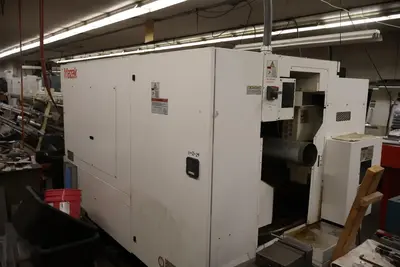

MAZAK QUICK TURN NEXUS 250-II MSY CNC Turning Center w/Sub-Spindle, New in 2014

General Specifications:

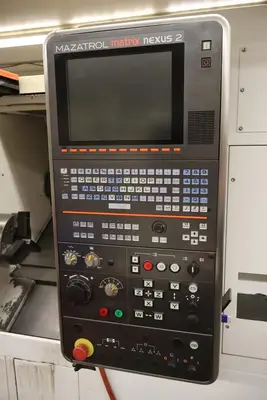

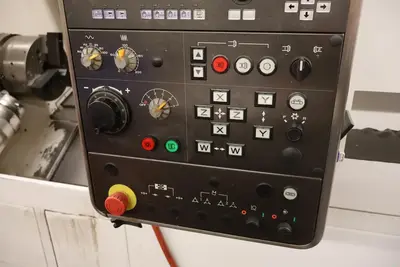

CNC Controls: Mazak Matrix Nexus 2
Supports Conversational Mazatrol & EIA/ISO Programming
Tool Presetter (tool eye)
Max. Swing Over Bed: 26.57"
Max. Turn Diameter: 14.96"
Max. Turn Length: 21.27"
Max. Bar Capacity: 3.03"
Chuck Size: 10"
...C-Axis Indexing: 0.0001° Increments
...Axis Travels:
......X-Axis: 9.05"
......Y-Axis: 2.00"
......Z-Axis: 22.63"
...Main Spindle Specs:
......Max. Speed: 4,000 RPM
......Bore: 3.58"
......Nose: A2-8
...Sub-Spindle Specifications:
......Chuck Size: 6"
......Speed: 6,000 RPM
......Power: 15 HP

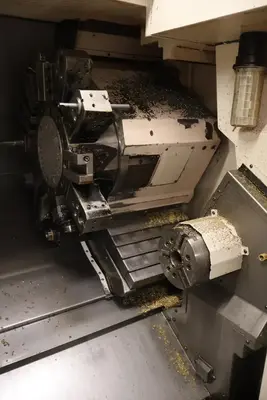

...Turret & Live Tooling (Milling)

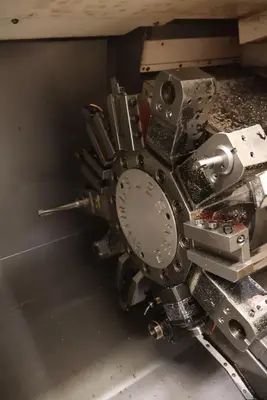

......12-Position VDI Turret
......Rotary/Live Tool Speed: 4,500 RPM
......Rotary Tool Power: 7.5 HP

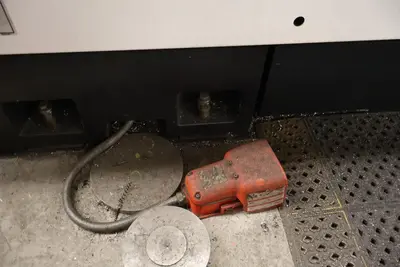

...Foot Pedal

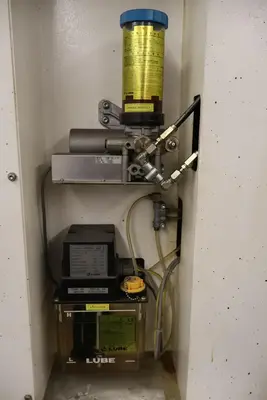

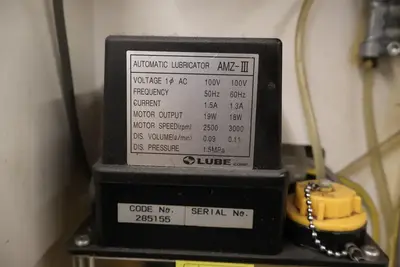

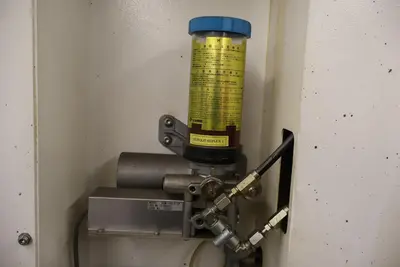

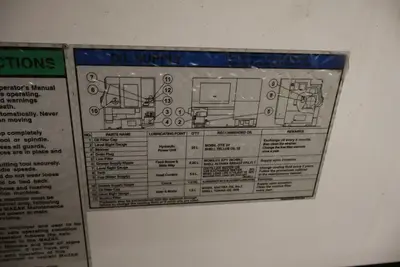

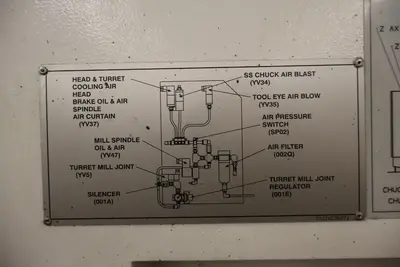

...Auto-Industrial Lubrication System

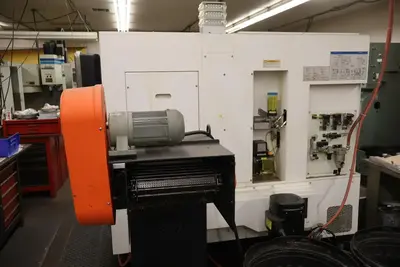

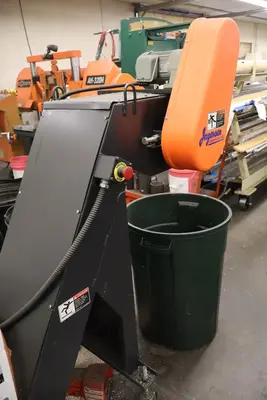

...Chip Conveyor

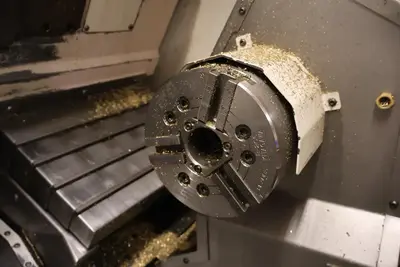

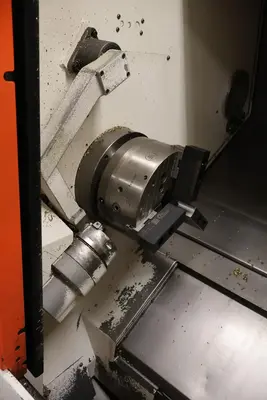

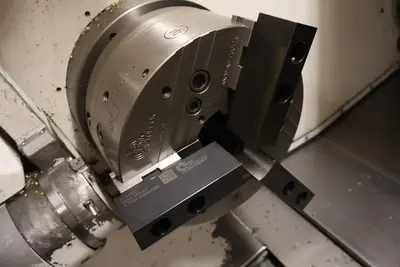

...3-Jaw 10" Quick-Change Power Chuck
...3-Jaw, 6" Sub-Spindle Chuck
......Kitagawa B-200 Series Power Chuck"
......1.77" Through-Hole

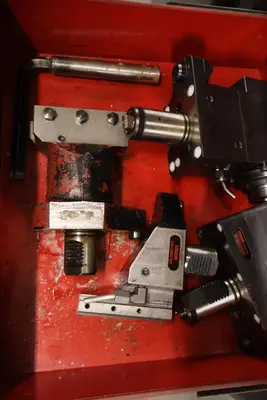

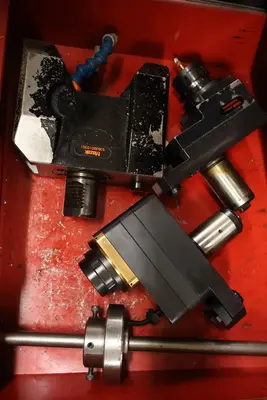

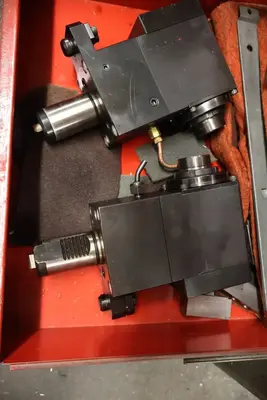

...Live and Static Tool Holders
...Manuals

CNC Unit Dimensions (approx.) 119" x 73" x 72"
Scrap Conveyor Dimensions (approx.): 50" x 24" x 64"
CNC Unit Weight (approx.): 12,600 lbs.
