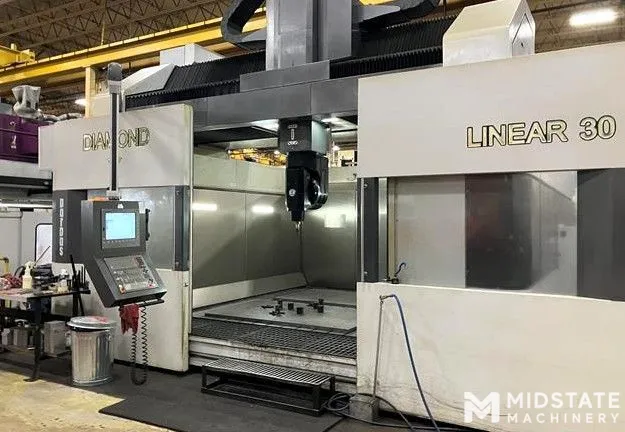

PARPAS DIAMOND LINEAR 30 5-Axis CNC Gantry Machining Center, New in 2014
Have one to sell?
ConditionUsed
1 available
PARPAS DIAMOND LINEAR 30 5-Axis CNC Gantry Machining Center, New in 2014.
Heidenhain TNC 640 Control.
Dual Chip Conveyor.
Through Spindle High Pressure Coolant.
General Specifications:
CAPACITY:
X-Axis, Longitudinal 118.11”
Y-Axis, Transversal Travel 102.36”
Z-Axis, Vertical Travel 55.11"
C-Axis, Ram Rotation .001 Degrees
C-Axis, Ram Range +/- 370 Degree
A-Axis, Head Sweep +/- 110 Degrees
Work Table 122.04" x 110.23"
Spindle Speeds 20,000 RPM
Spindle taper HSK-63-A
Spindle Motor 52 HP
Feed Rates 236.232"
Approximate Machine Dimensions 296.4" x 259.84" x 226.9"
Heidenhain TNC 640 CNC Control
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
PARPAS DIAMOND LINEAR 30 5-Axis CNC Gantry Machining Center, New in 2014.
Heidenhain TNC 640 Control.
Dual Chip Conveyor.
Through Spindle High Pressure Coolant.
Imperial
| X | 118.11" |
| Y | 102.36" |
| Z | 55.12" |
| Power | 52 hp |
| RPM | 20,000 RPM |
| Taper | HSK-63-A |
| Control | CNC (Heidenhain 640) |
General Specifications:
CAPACITY:
X-Axis, Longitudinal 118.11”
Y-Axis, Transversal Travel 102.36”
Z-Axis, Vertical Travel 55.11"
C-Axis, Ram Rotation .001 Degrees
C-Axis, Ram Range +/- 370 Degree
A-Axis, Head Sweep +/- 110 Degrees
Work Table 122.04" x 110.23"
Spindle Speeds 20,000 RPM
Spindle taper HSK-63-A
Spindle Motor 52 HP
Feed Rates 236.232"
Approximate Machine Dimensions 296.4" x 259.84" x 226.9"
Heidenhain TNC 640 CNC Control
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
