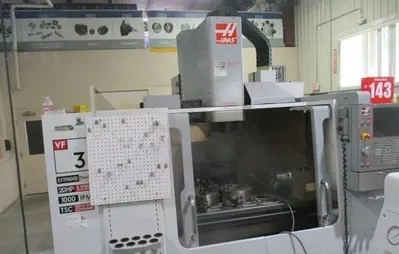

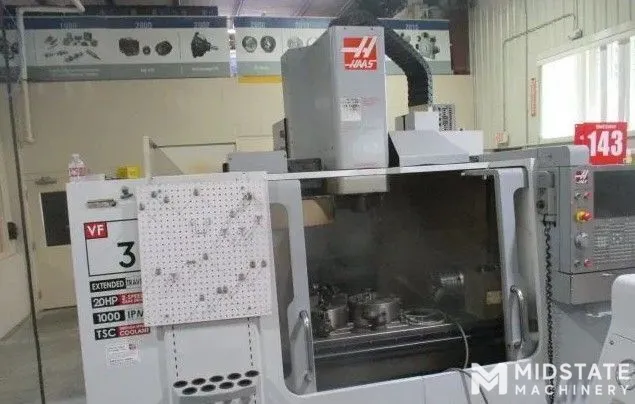

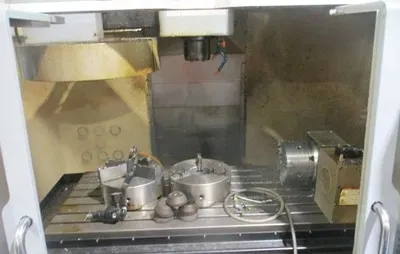

HAAS VF-3YT CNC Vertical Machining Center, New in 2007
Have one to sell?
ConditionUsed
1 available
HAAS VF-3YT CNC Vertical Machining Center, New in 2007
General Specifications:
Table Size: 54" x 24"
Table Load: 4,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: BT40
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 710 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30
Tool Diameter (Full / Large, Adjacent Empty): 4"
Tool Length: 13"
Tool Weight: 30 lb
Machine Dimensions: 124” L x 106” W x 109"
Machine Weight: 16,500 lbs

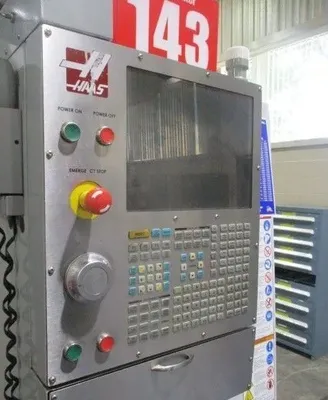

Haas CNC Control

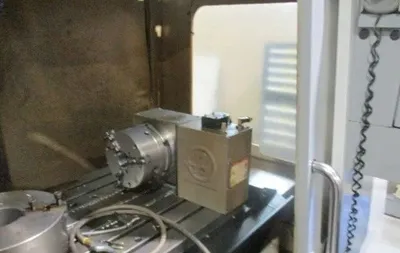

4th Axis Table
Coolant Thru Spindle
Programmable Coolant
Chip Auger
HAAS VF-3YT CNC Vertical Machining Center, New in 2007
Imperial
| X-Axis | 40" |
| Y-Axis | 26" |
| Z-Axis | 25" |
| Power | 30 hp |
| RPM | 7,500 RPM |
| # ATC | 30 |
| Taper | CT 40 |
| Table-W | 25" |
| Table-L | 54" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Dimensions | 124” L x 106” W x 109’’ H |
| Weight | 16,500 lbs |
General Specifications:
Table Size: 54" x 24"
Table Load: 4,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: BT40
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 710 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30
Tool Diameter (Full / Large, Adjacent Empty): 4"
Tool Length: 13"
Tool Weight: 30 lb
Machine Dimensions: 124” L x 106” W x 109"
Machine Weight: 16,500 lbs
Haas CNC Control
4th Axis Table
Coolant Thru Spindle
Programmable Coolant
Chip Auger
