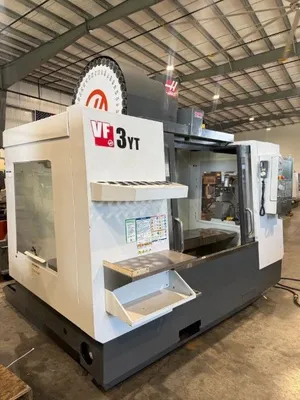

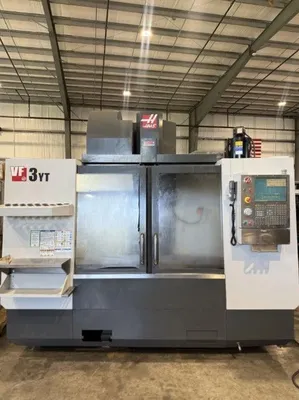

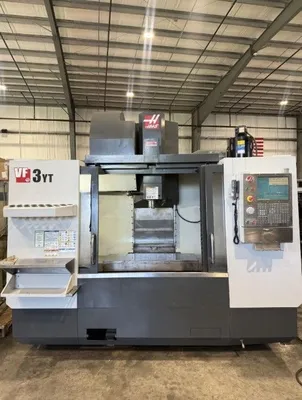

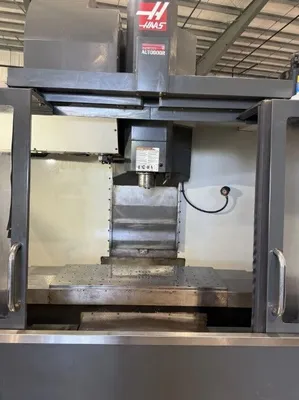

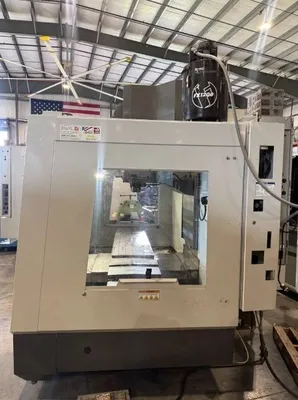

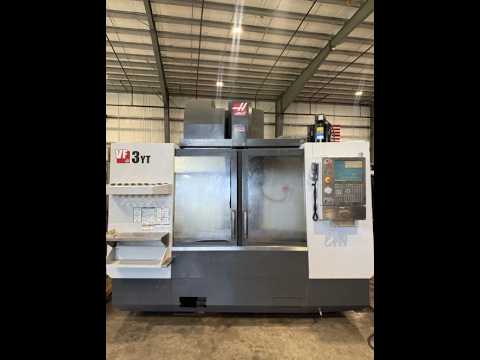

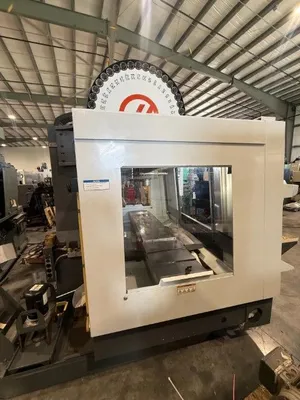

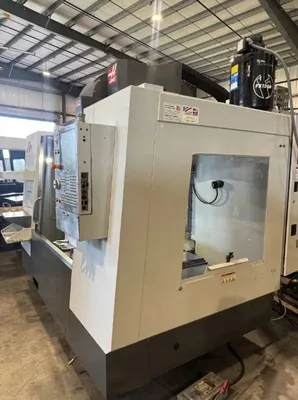

HAAS VF-3YT CNC Vertical Machining Center, New in 2010
Have one to sell?
ConditionUsed
1 available
HAAS VF-3YT CNC Vertical Machining Center, New in 2010
Wired for 4th/5th Axis
General Specifications:

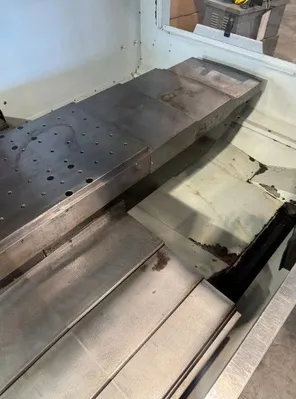

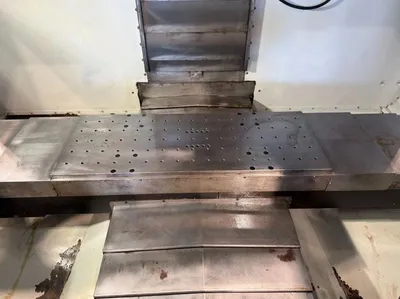

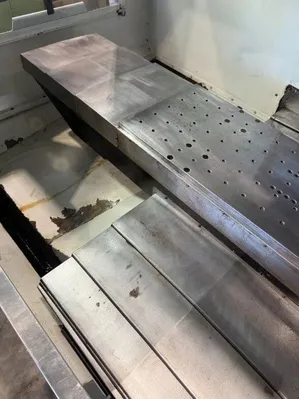

Table Size: 54" x 24"
Table Load: 4,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"

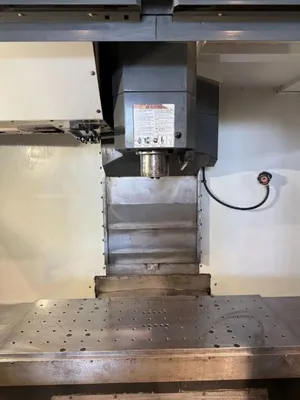

Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 10,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: BT40
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 710 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30
Tool Diameter (Full / Large, Adjacent Empty): 4"
Tool Length: 13"
Tool Weight: 30 lb
Haas CNC Control w/ Manual Pulse Generator
Royal FX1200 Mist Collector
USB Drive
RS-232 Port
Rigid Tapping
Rotation & Scaling
DNC
M19 Spindle Orientation
Macros
Quick Code
Pre-Orient Tap
Advanced Tool Management
Expanded Memory
Renishaw Probing & (Less Probe)

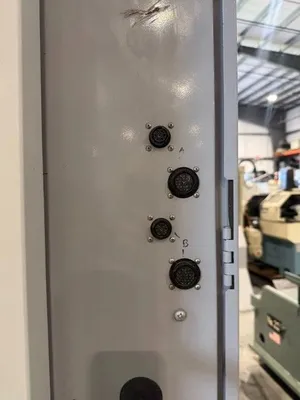

Prewired for the 4th axis 5th Axis

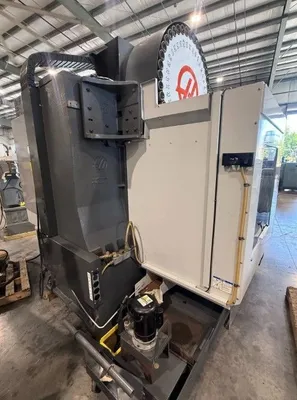

Side mount tool changer 30 tool capacity
Auto Door option
Automatic lubrication system

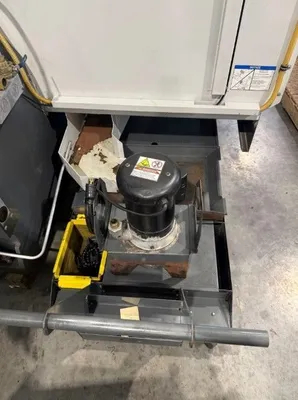

External coolant pump and tank

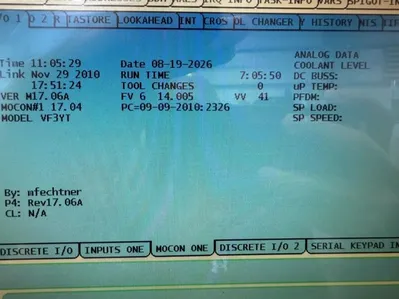

Machine hours- Battery dies and reloaded software and lost the original hour meters
Machine is wired for 360-480 volt operation / 3 phase / 60 H.Z
HAAS VF-3YT CNC Vertical Machining Center, New in 2010
Wired for 4th/5th Axis
Imperial
| X-Axis | 40" |
| Y-Axis | 26" |
| Z-Axis | 25" |
| Power | 30 hp |
| RPM | 10,000 RPM |
| # ATC | 30 |
| Taper | CT 40 |
| Table-W | 25" |
| Table-L | 54" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Dimensions | 124” L x 106” W x 109’’ H |
| Weight | 16,500 lbs |
General Specifications:
Table Size: 54" x 24"
Table Load: 4,000 lbs
X-Axis Travel: 40"
Y-Axis Travel: 26"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"
Spindle Speed: 10,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: BT40
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 710 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30
Tool Diameter (Full / Large, Adjacent Empty): 4"
Tool Length: 13"
Tool Weight: 30 lb
Haas CNC Control w/ Manual Pulse Generator
Royal FX1200 Mist Collector
USB Drive
RS-232 Port
Rigid Tapping
Rotation & Scaling
DNC
M19 Spindle Orientation
Macros
Quick Code
Pre-Orient Tap
Advanced Tool Management
Expanded Memory
Renishaw Probing & (Less Probe)
Prewired for the 4th axis 5th Axis
Side mount tool changer 30 tool capacity
Auto Door option
Automatic lubrication system
External coolant pump and tank
Machine hours- Battery dies and reloaded software and lost the original hour meters
Machine is wired for 360-480 volt operation / 3 phase / 60 H.Z
