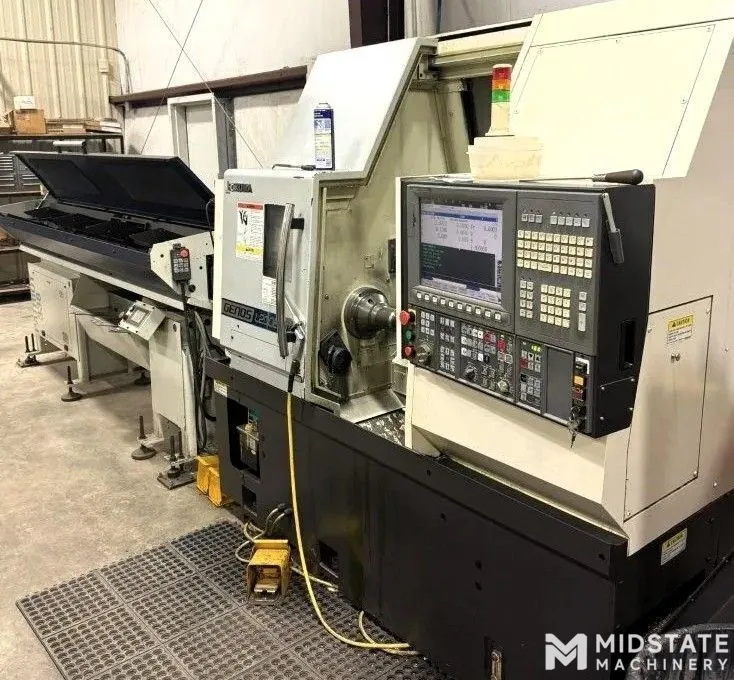

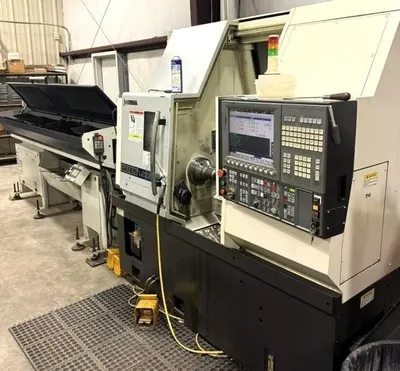

OKUMA GENOS L300E-MY CNC Multi-Axis Turning Center, New in 2013
Have one to sell?
ConditionUsed
1 available
OKUMA GENOS L300E-MY CNC Multi-Axis Turning Center, New in 2013.
Live Milling.
Y-Axis.

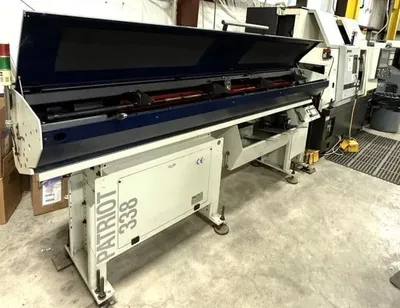

8' Edge Patriot 338 Barfeed.
General Specifications:
MAX CUTTING DIAMETER 7.87"
MAX CUTTING LENGTH 14.96"
DISTANCE BETWEEN CENTERS 21"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL ±1.57" to ±1.96"
Z-AXIS TRAVEL 15.75"
C-AXIS INDEXING 360°
BAR CAPACITY 1.7"
SPINDLE BORE 2.6"
SPINDLE NOSE A2-6
SPINDLE MOTOR 15 hp
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 393 in/min.
RAPID TRAVERSE RATE - Z-AXIS 984 in/min.

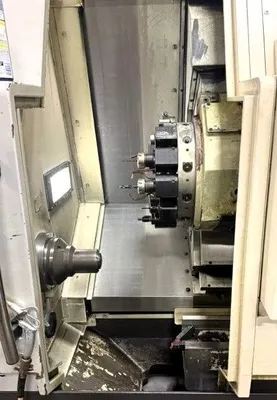

TURRET CAPACITY 12 POSITION
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM

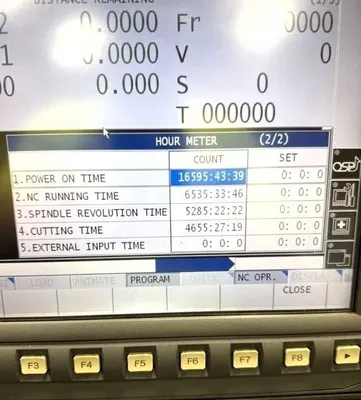

*4,655 Hours*
Okuma OSP-P300L-R CNC Control
Live Milling
Y-Axis
8' Edge Patriot 338 Barfeed
16C Collet
8" 3-Jaw Hydraulic Chuck (like new)
Programmable Tailstock
Touch Setter (removeable)
Chip Conveyor
Coolant System
220V
**Live Tool Holders Included: (2) Axial, (2) Radial
**Tooling Included: 16C Collet Set (3/16-1 5/8"), Hard Jaws & Soft Jaws
**Original Owner
**As of August 2026- Cutting Time: 4,655 Hours
**Machine cut primarily 303 Stainless Steel & Brass
OKUMA GENOS L300E-MY CNC Multi-Axis Turning Center, New in 2013.
Live Milling.
Y-Axis.
8' Edge Patriot 338 Barfeed.
Imperial
| Machining Length | 21" |
| Chuck Size | 8" |
| Bar Capacity | 1.7" |
| Power | 15 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 7.87" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Control | CNC (OSP-P300LR) |
General Specifications:
MAX CUTTING DIAMETER 7.87"
MAX CUTTING LENGTH 14.96"
DISTANCE BETWEEN CENTERS 21"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL ±1.57" to ±1.96"
Z-AXIS TRAVEL 15.75"
C-AXIS INDEXING 360°
BAR CAPACITY 1.7"
SPINDLE BORE 2.6"
SPINDLE NOSE A2-6
SPINDLE MOTOR 15 hp
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 393 in/min.
RAPID TRAVERSE RATE - Z-AXIS 984 in/min.
TURRET CAPACITY 12 POSITION
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM
*4,655 Hours*
Okuma OSP-P300L-R CNC Control
Live Milling
Y-Axis
8' Edge Patriot 338 Barfeed
16C Collet
8" 3-Jaw Hydraulic Chuck (like new)
Programmable Tailstock
Touch Setter (removeable)
Chip Conveyor
Coolant System
220V
**Live Tool Holders Included: (2) Axial, (2) Radial
**Tooling Included: 16C Collet Set (3/16-1 5/8"), Hard Jaws & Soft Jaws
**Original Owner
**As of August 2026- Cutting Time: 4,655 Hours
**Machine cut primarily 303 Stainless Steel & Brass
