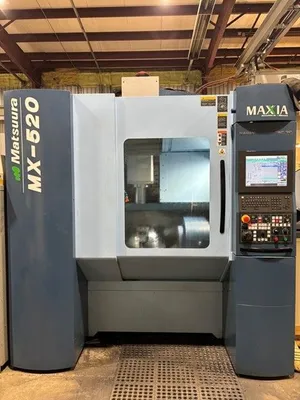

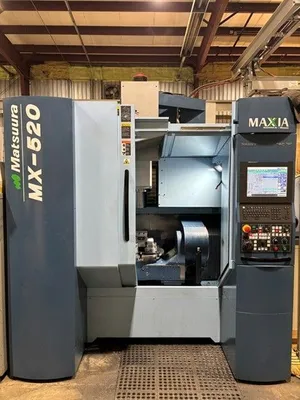

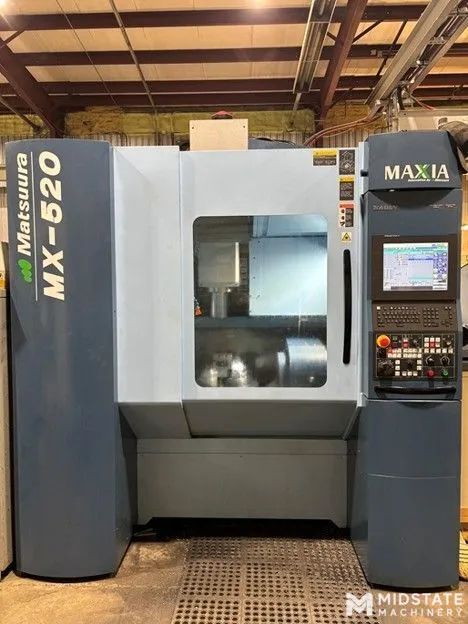

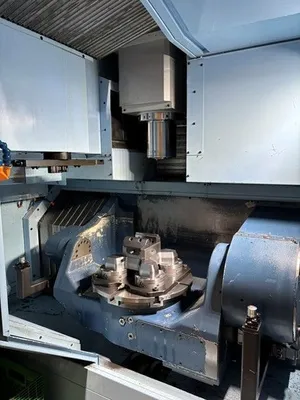

MATSUURA MX-520 High Precision 5-Axis Vertical Machining Center

Manufacturer MATSUURA
Model MX-520
Year 2019
Condition Used
Stock Number 500-1824
X 24.8"
Y 22.05"
Z 20.08"
# axis 5
Rpm 12,000 RPM
# atc 60
Taper Cat 40 - Big Plus
Hours 11,050 hrs
Table size 500 mm
X travel 630 mm
Y travel 560 mm
Z travel 510 mm
Spindle taper Cat 40 - Big Plus
Max spindle speed 20,000 RPM
Spindle motor 25 HP
Atc tool capacity 60 tools
Rapid traverse x 30 m/min
Rapid traverse y 30 m/min
Rapid traverse z 30 m/min
Max table load 200 kg
5-axis capable Yes

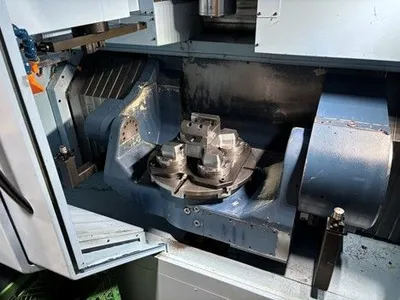

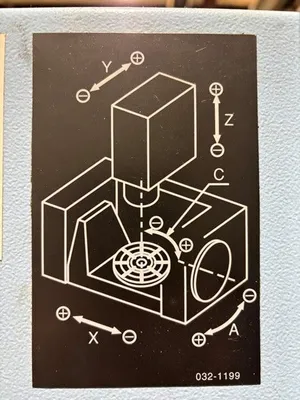

Axis configuration Trunnion (Table/Table)
Simultaneous axes 5-Axis Simultaneous (Full)
Trunnion / rotary table diameter 500 mm
A-axis travel -125 Deg to +10 Deg
C-axis travel Full 360 Deg
Rotary table max load 200 kg

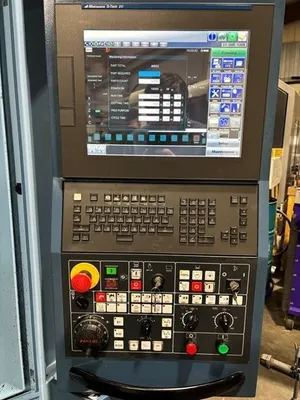

Cnc control Matsuura G-Tech 31i
Coolant type Flood, Through Spindle, Bed Wash, High
Pressure
Coolant pressure 300 psi
Machine weight 9,500 kg
Description
Equipped With (subject to buyer verification):

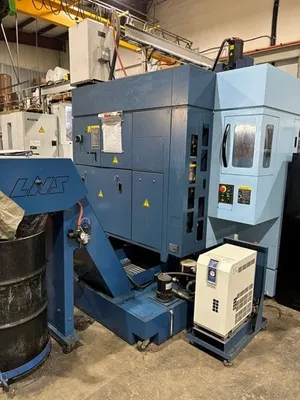

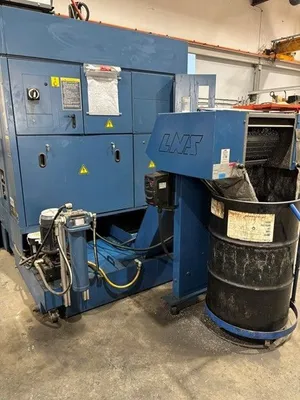

Rear Discharge Chip Conveyor

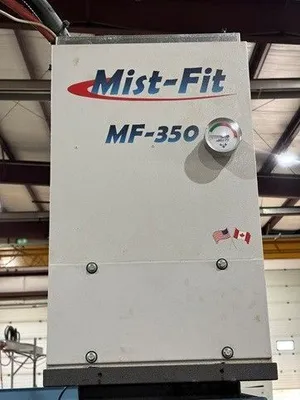

Mist-Fit (MF-350) Coolant Mist Extractor,

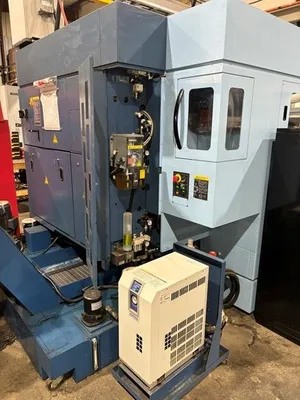

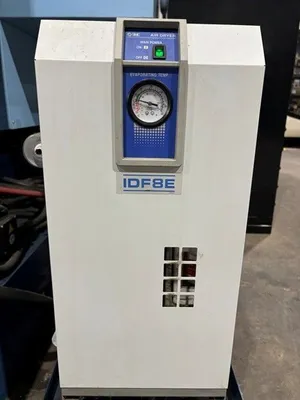

SMC - Air Drying Unit - External,

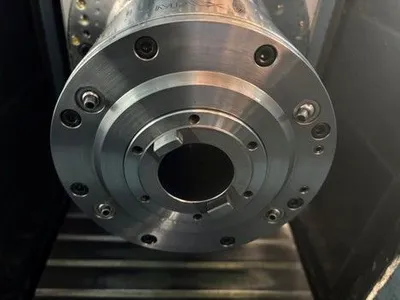

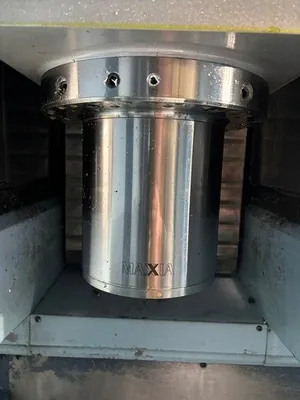

20,000rpm Spindle, 20-25 HP, 108Nm Torque,
Glass Scales for all 5 Axes - X, Y, Z, B, C,
Renishaw RMP-60 In Process Measurement Probe,

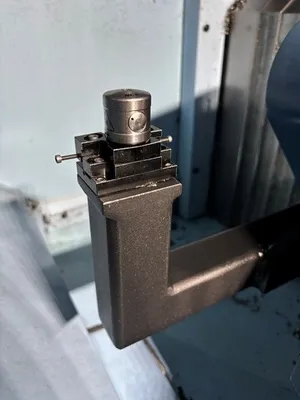

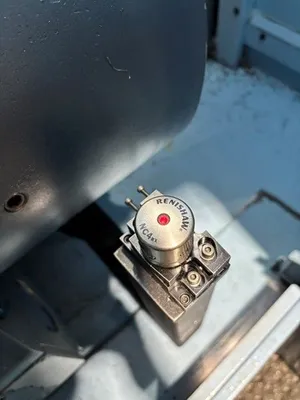

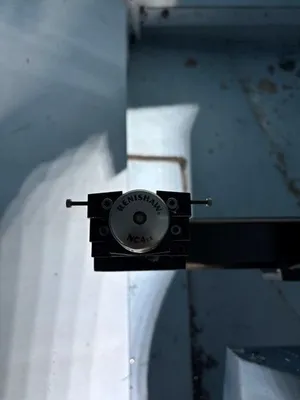

Renishaw NC-4 Laser Tool Breakage/Measurement System,

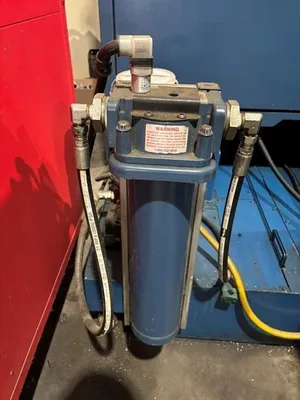

High Pressure NOP Coolant Pump at 300PSI with 20 Microns filtration,
eZ-5 Kinematic Function - Including Calibration Sphere
