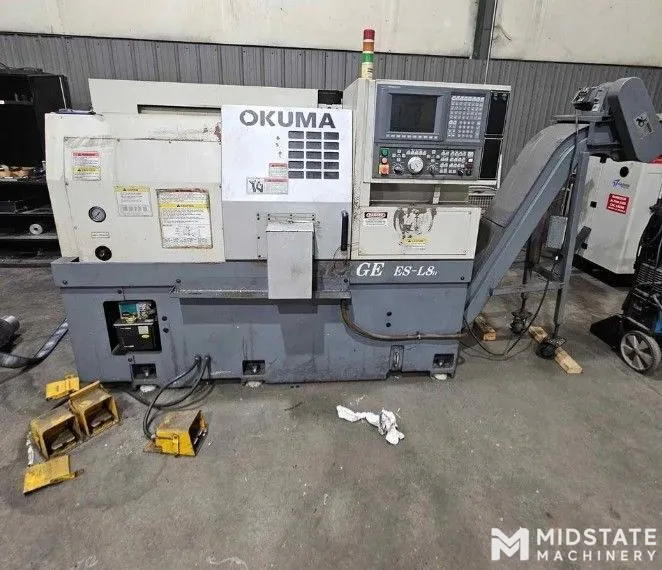

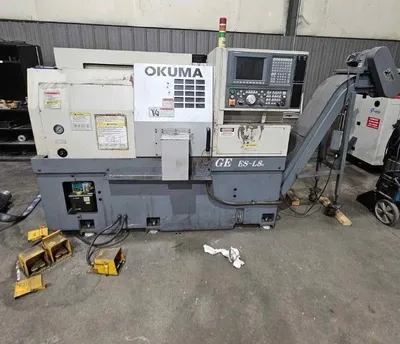

Okuma ES-L8II CNC Turning Center, New in 2004
Have one to sell?
ConditionUsed
1 available
Okuma ES-L8II CNC Turning Center, New in 2004
General Specifications:
X-Travel: 6.10"
Z-Travel: 20.47"
Distance Between Centers: 25"
Max Swing Over Bed: 17.72"
Max Turning / Cutting Length: 19.68"
Max Cutting / Turning Diameter: 8.27"
Bar Capacity: 2.04"
Chuck Size: 8.0"
Spindle Bore: 2.44"
Spindle Speed: 4,200 RPM
Spindle Motor: 10 HP
Spindle Nose: A2-6

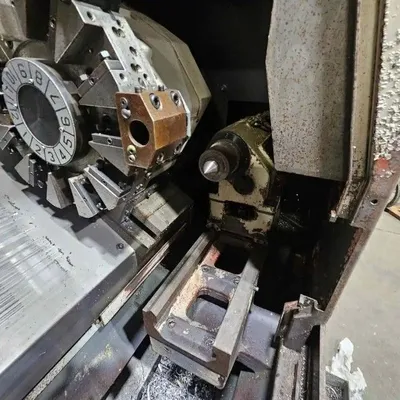

Turret Tool Positions: 12

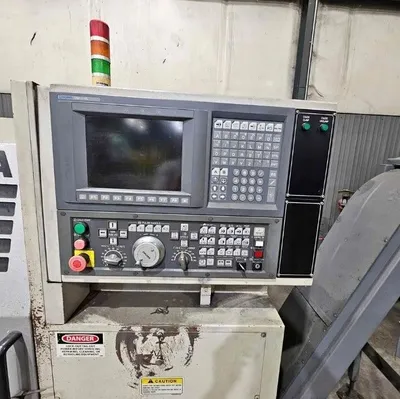

OSP-U10L CNC Control
Tailstock

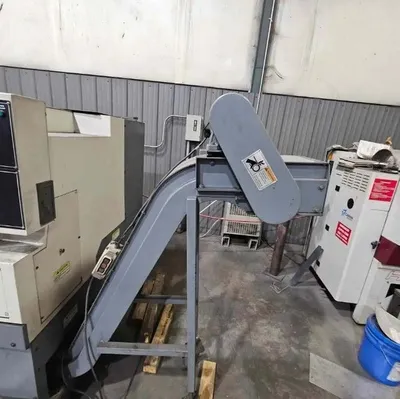

Chip Conveyor
Parts Catcher
Okuma ES-L8II CNC Turning Center, New in 2004
Imperial
| Swing | 17.72" |
| Machining Length | 19.6" |
| Chuck Size | 8" |
| Bar Capacity | 2" |
| Power | 10 hp |
| Max RPM | 4,200 RPM |
| Tailstock | Yes |
| Control | CNC (USP-U10L) |
General Specifications:
X-Travel: 6.10"
Z-Travel: 20.47"
Distance Between Centers: 25"
Max Swing Over Bed: 17.72"
Max Turning / Cutting Length: 19.68"
Max Cutting / Turning Diameter: 8.27"
Bar Capacity: 2.04"
Chuck Size: 8.0"
Spindle Bore: 2.44"
Spindle Speed: 4,200 RPM
Spindle Motor: 10 HP
Spindle Nose: A2-6
Turret Tool Positions: 12
OSP-U10L CNC Control
Tailstock
Chip Conveyor
Parts Catcher
