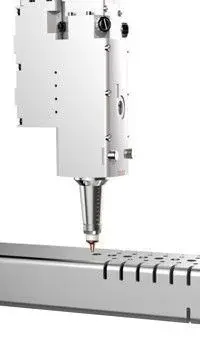

BODOR K3 30ft 6KW Tube Laser *NEW*
Have one to sell?
ConditionUsed
1 available

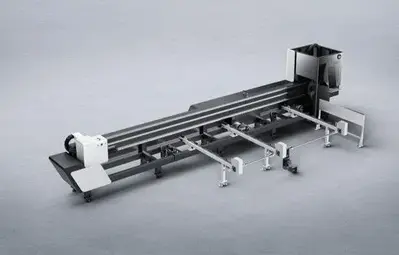

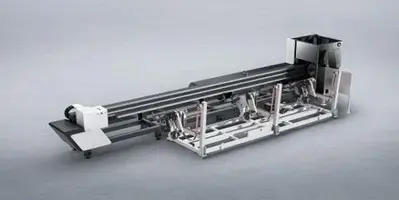

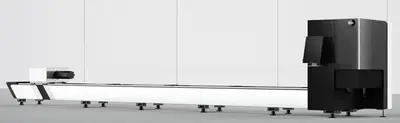

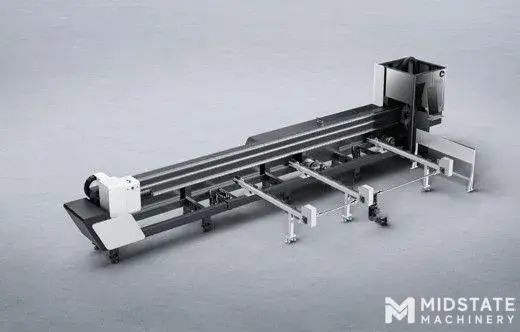

BODOR K3 30ft 6KW Tube Laser
1000W Power
****Lead time for K3 6 kW: 30 Days*****

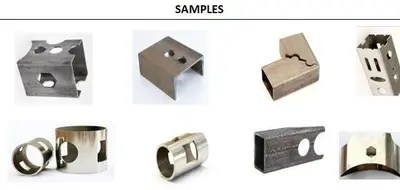

Tube cross-sectional shapes: Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes
General Specifications:
Length 50.98'
Width 7.66'
Height 9.35'
Cutting area X 6 m
Cutting area Y 0.4 m
Cutting area Z 0.4 m
Max. simultaneous positioning speed 2,362.2"
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014) 0.001181 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014) 0.002"
Max. workpiece weight 1102.31 lb
Machine weight 15432.4 lb
Power 1000 w
Control CNC
Dimensions 50.984 x 7.661 x 9.350 ft
Weight 15432.36 lb
Tube size range
Round tube: Φ0.98-Φ14.01 in
Square tube: Φ0.98-Φ14.01 in
Rectangular tube:
14.01 in ≥ side length ≥ 0.98 in
Maximum machinable tube length: 30 ft
K3 Laser Power Price
"K3 30ft tube laser

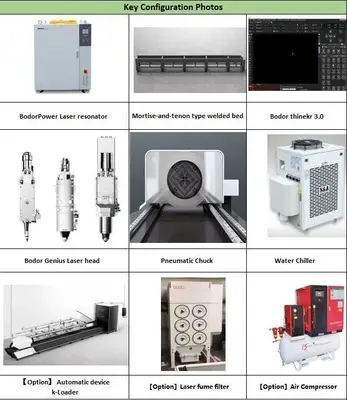

BodorThinker Control system. BodorPower Laser source. BodorGenius Laser head." 12kw
K-Loader 1 Set Included
Dust Collector 1 Set Included
Air compressor 1 Set Included
One year onsite service 1 Set Included
Freight&Tariff Included
Installation & Training Cost Included
Payment Terms "30% down payment required to initiate production.
60% before shipping.
10% due within 7 days after installation and training is completed.
Warranty: 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
BODOR K3 30ft 6KW Tube Laser
1000W Power
****Lead time for K3 6 kW: 30 Days*****
Tube cross-sectional shapes: Round, square, rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes
Imperial
| Sheet-W | 0.4 m |
| Sheet-L | 6 m |
| Wattage | 1000 w |
| IPM | 30 mpm |
| X - Axis | 6 m |
| Y-Axis | 0.4 m |
| Z - Axis | 0.4 m |
| Dimensions | 50.984 x 7.661 x 9.350 ft |
| Weight | 15432.36 lb |
General Specifications:
Length 50.98'
Width 7.66'
Height 9.35'
Cutting area X 6 m
Cutting area Y 0.4 m
Cutting area Z 0.4 m
Max. simultaneous positioning speed 2,362.2"
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014) 0.001181 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014) 0.002"
Max. workpiece weight 1102.31 lb
Machine weight 15432.4 lb
Power 1000 w
Control CNC
Dimensions 50.984 x 7.661 x 9.350 ft
Weight 15432.36 lb
Tube size range
Round tube: Φ0.98-Φ14.01 in
Square tube: Φ0.98-Φ14.01 in
Rectangular tube:
14.01 in ≥ side length ≥ 0.98 in
Maximum machinable tube length: 30 ft
K3 Laser Power Price
"K3 30ft tube laser
BodorThinker Control system. BodorPower Laser source. BodorGenius Laser head." 12kw
K-Loader 1 Set Included
Dust Collector 1 Set Included
Air compressor 1 Set Included
One year onsite service 1 Set Included
Freight&Tariff Included
Installation & Training Cost Included
Payment Terms "30% down payment required to initiate production.
60% before shipping.
10% due within 7 days after installation and training is completed.
Warranty: 5 years laser head, 5 years laser source, 5 years control system.
Water Chiller/Transformer included.
