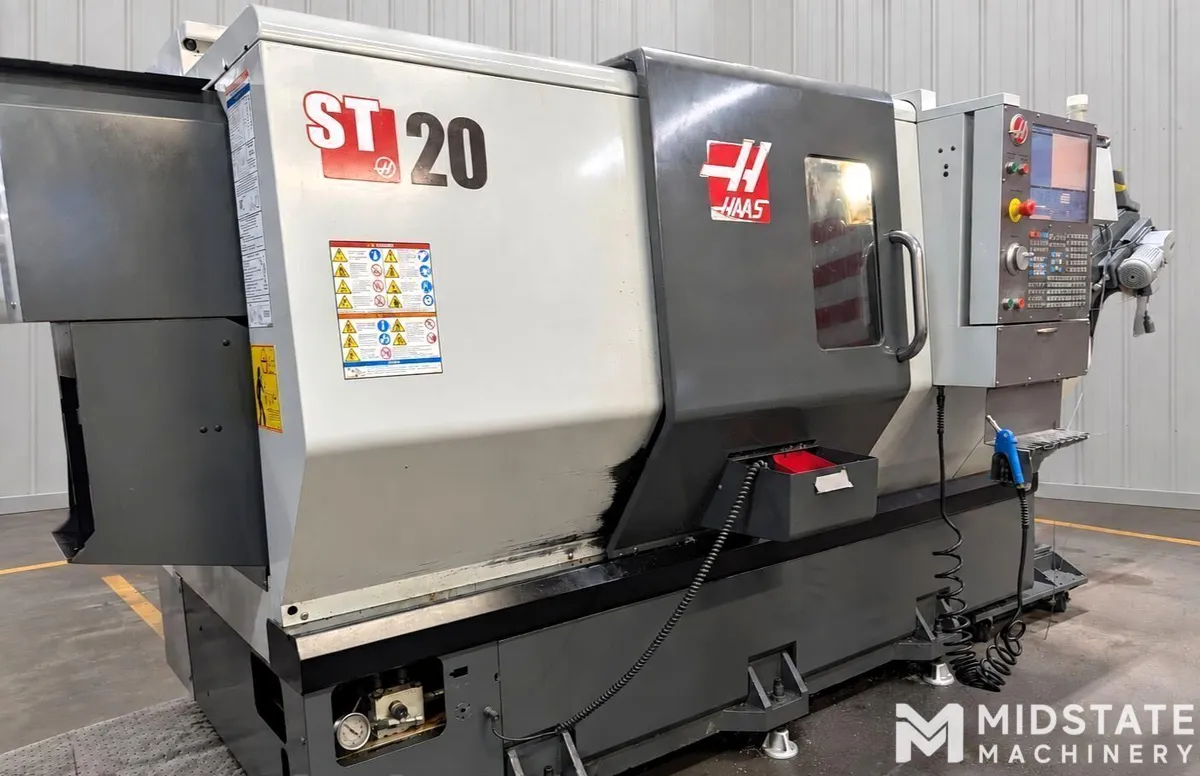

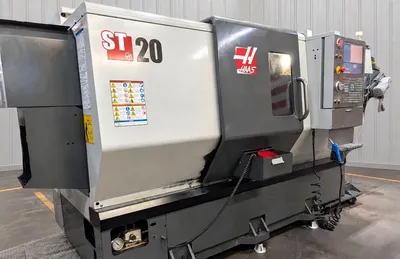

HAAS ST-20M CNC Turning Center, New in 2013

General Specifications:
Swing 21"
Machining Length 22.5"
# Axis 3
Chuck Size 10"
Bar Capacity 2"
Power 20 hp
Max RPM 4,000 RPM
Turning Dia 11.8"
Tailstock No
Live Tooling Yes
Sub Spindle No

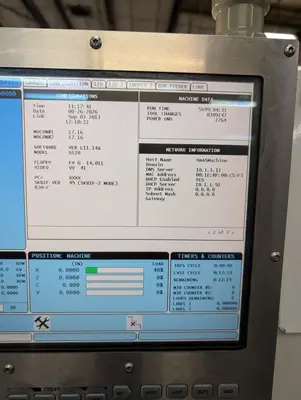

Control CNC (Haas CNC Control)
Dimensions 142.5 inch × 90 inch × 92 inch High
Weight 8,820 lbs Approx.

Features:

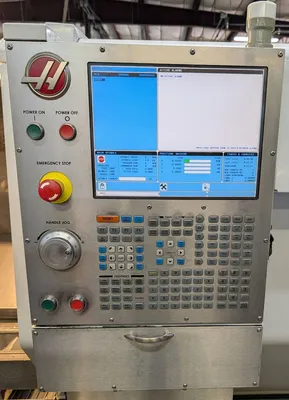

Haas CNC Control
A2-6 Spindle Nose
Rigid Tapping
Coolant Tank
Note: Tool Holders Are Not Included With The Machine

Capacity:
Maximum Turning Diameter: 11.80 inch
Maximum Swing Over Bed: 21.0 inch
Maximum Turning Length: 22.5 inch
Maximum Bar Capacity: 2.00 inch

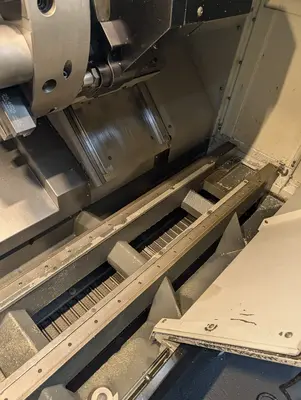

Travels:
X-Axis Travel: 8.4 inch
Z-Axis Travel: 22.5 inch

Feedrate:
Rapid Traverse X-Axis: 945 IPM
Rapid Traverse Z-Axis: 945 IPM

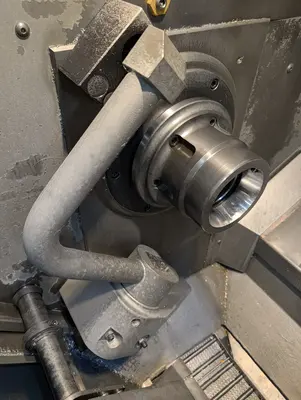

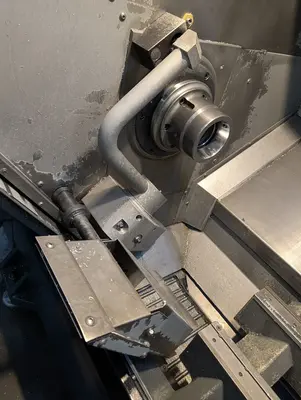

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5 inch
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

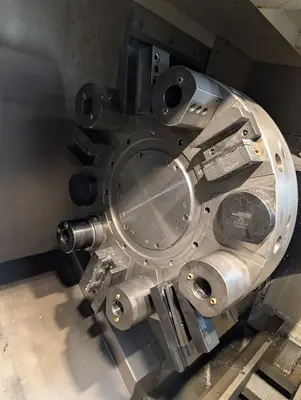

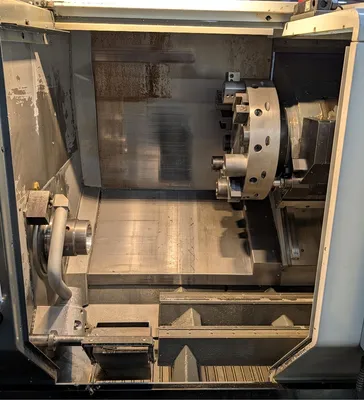

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: VDI 40 (Live Tool)

General:
Air Requirement: 4 scfm @ 100 psi

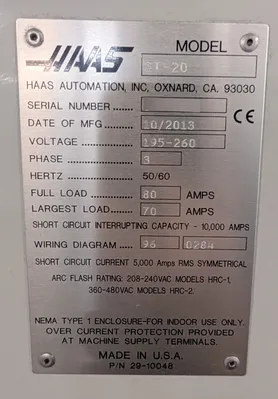

Power Source: AC 195V – 260V / 3-Phase / 50/60 Hz
Machine Dimensions: 142.5 inch × 90 inch × 92 inch High
Machine Weight: 8,820 lbs Approx.
