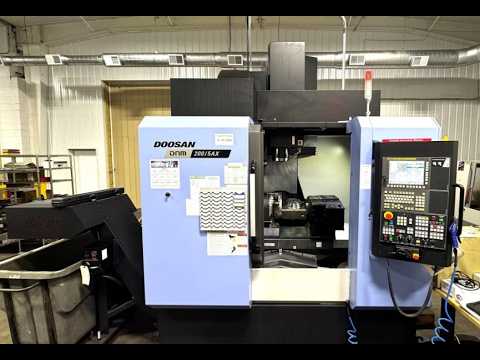

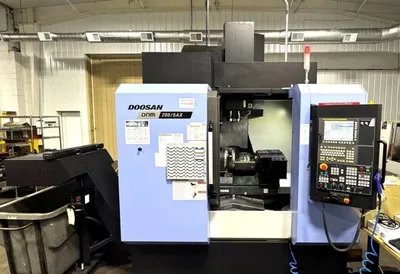

Doosan DNM-200/5AX 5-axis Vertical Machining Center, New in 2017
Have one to sell?
ConditionUsed
1 available
Doosan DNM-200/5AX 5-axis Vertical Machining Center, New in 2017
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Travels
X-Axis Travel: 15.7"
Y-Axis Travel: 17.1"
Z-Axis Travel: 19.7"
A-Axis Rotation: +30 -120 Degrees
C-Axis Rotation: 360 Degrees
Feed Rates (X, Y, Z): 1,417 IPM
Cutting Feedrate: 1 - 590 IPM
Table
Rotary Table Diameter: 7.87"
Maximum Table Capacity: 88 lbs
Tool Capacity
Tool Positions: 40
Standard Spindle
Spindle Taper: CAT40 - BP
Spindle Power: 15 / 25 hp
Spindle Speed: 12,000 RPM
Spindle Torque: 86 ft-lbs
Power Transmission Type: Direct Drive
Machine Dimensions:
Machine Weight: 12,500 lbs
Hours (8/26): 3,728

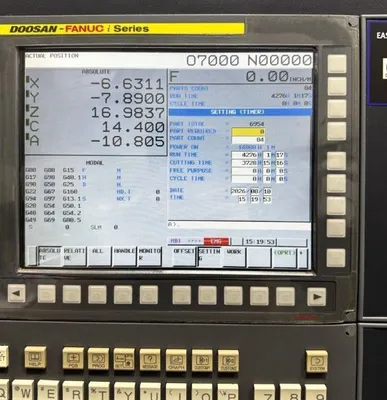

Doosan-Fanuc Series i CNC Control

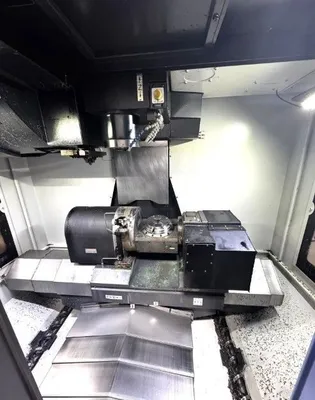

Built-in 5th Axis Trunnion Rotary Table (3+2)
230 PSI Through Spindle Coolant
Renishaw Work Probe, Tool Setter & RMI
Chip Conveyor
Coolant Tank with Oil Skimmer
Doosan DNM-200/5AX 5-axis Vertical Machining Center, New in 2017
Imperial
| X | 15.75" |
| Y | 17.13" |
| Z | 19.69" |
| # Axis | 5 |
| Power | 25 hp |
| RPM | 12,000 RPM |
| # ATC | 5 |
| Taper | #40 |
| Control | CNC (Fanuc i-Series) |
| Dimensions | 97"D x 130"W x 110"H (with head all the way down) |
| Weight | 12,500 lbs |
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
General Specifications:
Travels
X-Axis Travel: 15.7"
Y-Axis Travel: 17.1"
Z-Axis Travel: 19.7"
A-Axis Rotation: +30 -120 Degrees
C-Axis Rotation: 360 Degrees
Feed Rates (X, Y, Z): 1,417 IPM
Cutting Feedrate: 1 - 590 IPM
Table
Rotary Table Diameter: 7.87"
Maximum Table Capacity: 88 lbs
Tool Capacity
Tool Positions: 40
Standard Spindle
Spindle Taper: CAT40 - BP
Spindle Power: 15 / 25 hp
Spindle Speed: 12,000 RPM
Spindle Torque: 86 ft-lbs
Power Transmission Type: Direct Drive
Machine Dimensions:
Machine Weight: 12,500 lbs
Hours (8/26): 3,728
Doosan-Fanuc Series i CNC Control
Built-in 5th Axis Trunnion Rotary Table (3+2)
230 PSI Through Spindle Coolant
Renishaw Work Probe, Tool Setter & RMI
Chip Conveyor
Coolant Tank with Oil Skimmer
