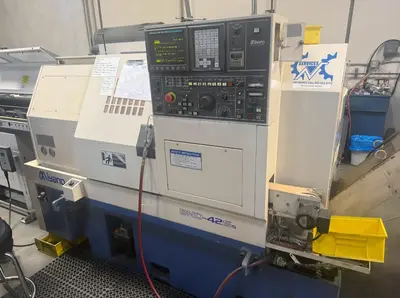

Miyano BND-42S5 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Miyano BND-42S5 CNC Turning Center
C-Axis, Live Tools, Sub-Spindle
Max. bar capacity 1-5/16"
Max. turning length 4.92"
Max. turret tool stations 12
X-axis slide travel 5.51"
Z-axis slide travel 11.02"
Tool shank size sq. 0.79"
Tool hole diameter 0.98"
Max. no. of revolving tools 6
Main spindle speed range 170-5,000 RPM
Spindle motor 10 HP
Machine weight 8,400 lbs.

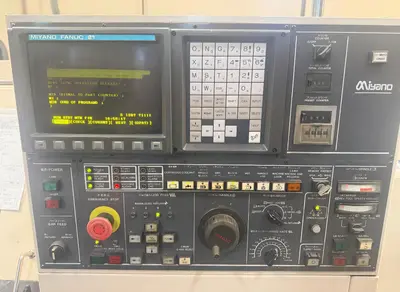

Fanuc 21T Control
Chip Conveyor
Live Tool
C-Axis
Sub-Spindle
Parts Catcher
Parts Conveyor
Misc. Live Tool Holders
Misc. OD & ID Tool Holders
(barfeed not included)
Miyano BND-42S5 CNC Turning Center
C-Axis, Live Tools, Sub-Spindle
Max. bar capacity 1-5/16"
Max. turning length 4.92"
Max. turret tool stations 12
X-axis slide travel 5.51"
Z-axis slide travel 11.02"
Tool shank size sq. 0.79"
Tool hole diameter 0.98"
Max. no. of revolving tools 6
Main spindle speed range 170-5,000 RPM
Spindle motor 10 HP
Machine weight 8,400 lbs.
Fanuc 21T Control
Chip Conveyor
Live Tool
C-Axis
Sub-Spindle
Parts Catcher
Parts Conveyor
Misc. Live Tool Holders
Misc. OD & ID Tool Holders
(barfeed not included)
