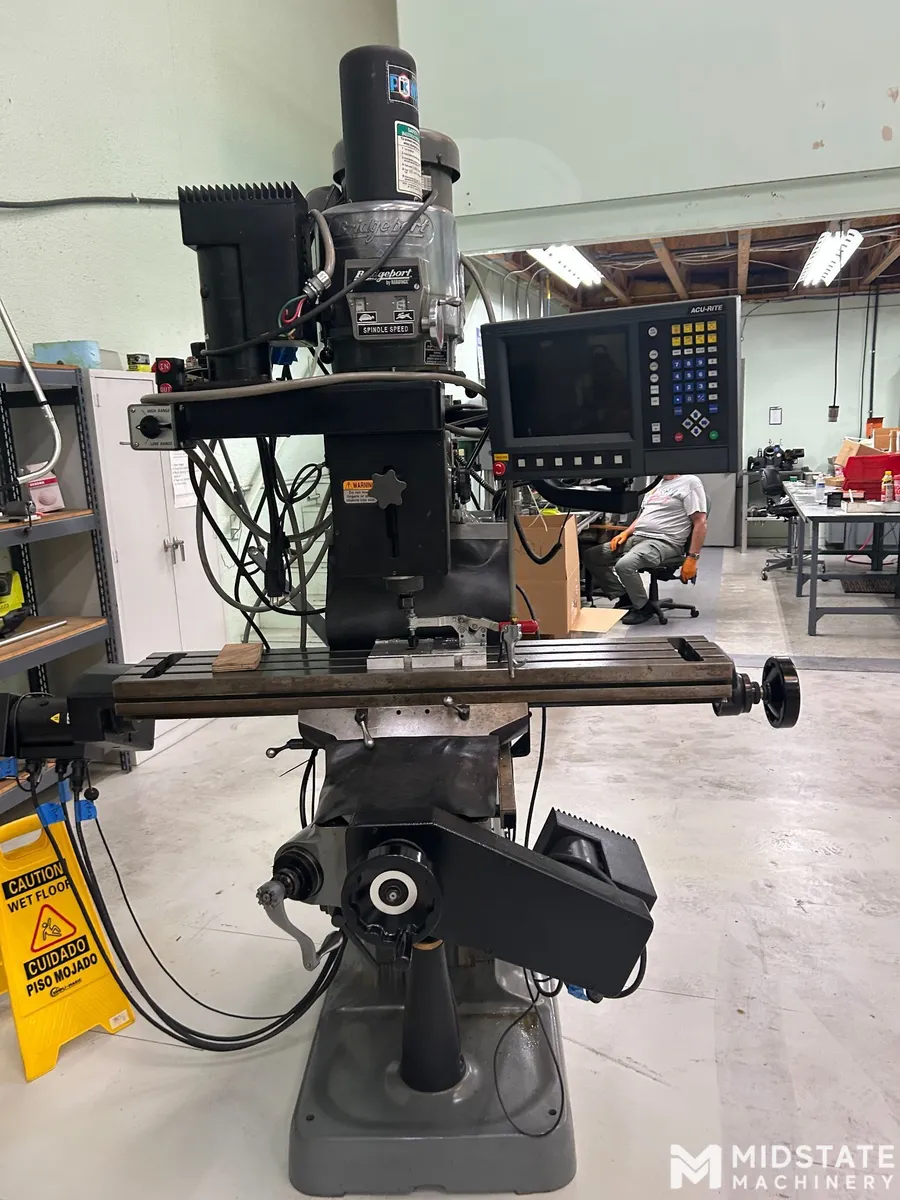

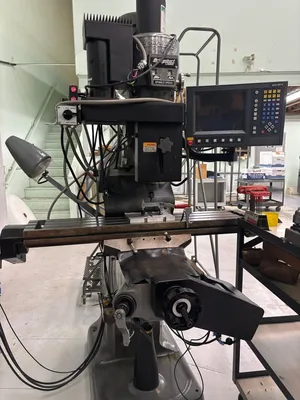

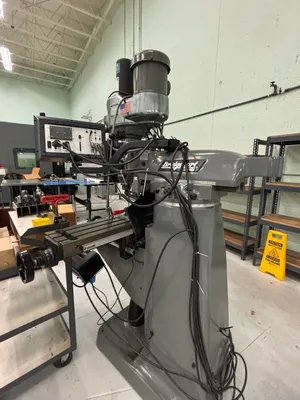

Bridgeport EZ Trak Vertical CNC Mill

Table Size: 9″ x 48″
T-Slots: 3 @ 2.5″ (0.625″ size)
Table Travel – X Axis: 30″
Saddle Travel – Y Axis: 12″
Quill Travel: 5″
Quill Travel w/3rd Axis: 4.5″
Ram Travel: 12″
Knee Travel – Z Axis: 16″
Throat Distance: 6.75″ – 18.75″
Table To Spindle Nose Gage Line: 2.5″ – 18.25″

Spindle Speeds Bridgeport EZ Trak:
– Hi: 500 – 4200 RPM
– Low: 60 – 500 RPM

Spindle Diameter: 1.875″
Quill Diameter: 3.375″
Spindle Taper: R-8

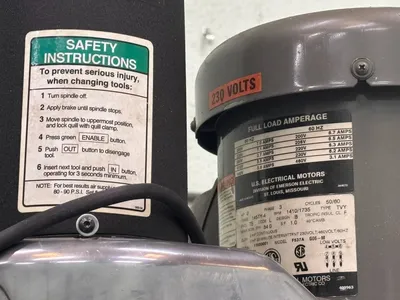

Spindle Motor: 3 HP (2HP Continuous)
Positioning – Auto or Manual (X,Y): 100 IPM
Feedrate Range (X,Y): 0.1 – 100 IPM
Increments – Minimum: 0.0001"

Positioning:
Accuracy: ±0.001″
Repeatability: ±0.0008″
Resolution – Input/Servo/Display: 0.0001″

Dimensions – Approximate: 96″L x 86″W x 90″H
Weight – Approximate: 2900 Lbs.
