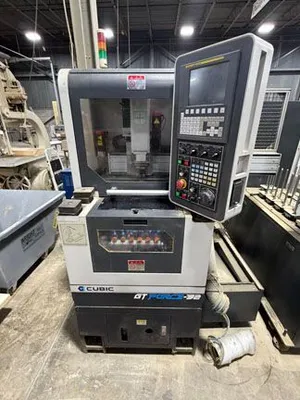

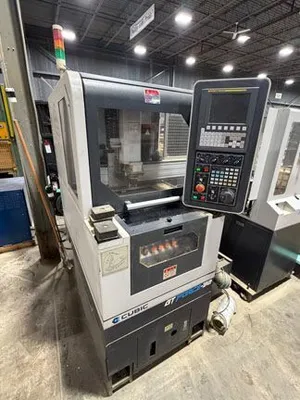

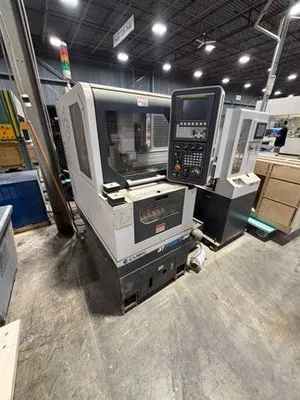

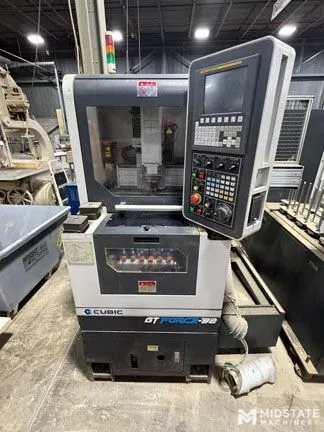

Cubic GT Force-32 Compact Gang Tool Lathe, New in 2017
Have one to sell?
ConditionUsed
1 available
Cubic GT Force-32 Compact Gang Tool Lathe, New in 2017
General Specifications:
Turning Diameter w/
-5c Collet: 1-1/16"
-Dead-Length Collet Chuck: ø 1-3/16"
-High Precision Air Chuck: ø 3 -5/32"
-5” Hydraulic 3-Jaw Chuck: ø 3 -5/32"
-Diaphragm Chuck: 3 -5/32"
-Turning Length: 2.36"
Spindle
Through Hole: 1.77"
Draw Tube: 1.38"
Motor Power: 7.5 HP
Spindle Speed: 6,000 RPM
Axis
X-Axis Stroke: 8.27"
Z-Axis Stroke: 7.87"
X-Axis Servo Motor: 1 HP
Z-Axis Servo Motor: 1 HP
X/Z Axis Rapid Speed: 787 IPM
Tools
Number of Tools: 6 (2OD / 4ID)
Turning Tool: 0.63"
Drill Shank: 3/4"
Machine Dimensions: 31.5" x 66" x 70.8"
Machine Weight: 3,792 lbs
Fanuc 0i-TF CNC Control

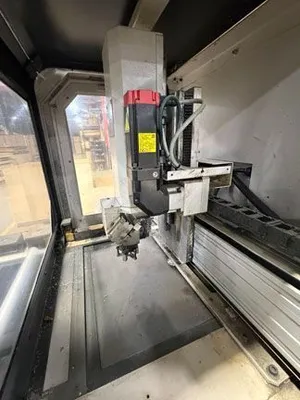

Epson N2 6-Axis Folding Robot Arm

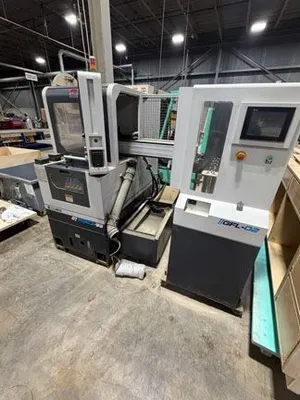

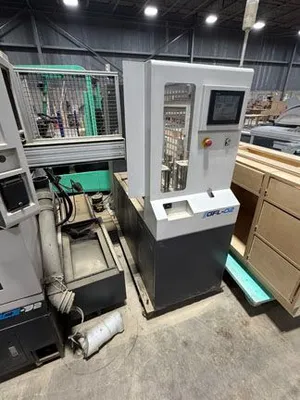

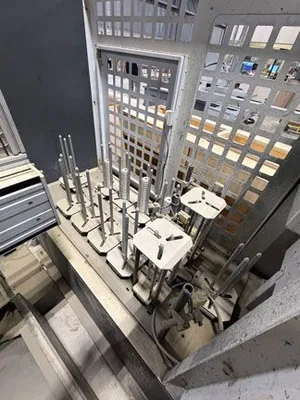

12 Station Rotary Stacker
Cubic GT Force-32 Compact Gang Tool Lathe, New in 2017
Imperial
| Machining Length | 2.36" |
| Chuck Size | 5" |
| Bar Capacity | 1.77" |
| Power | 7.5 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 3.14" |
| Control | CNC (Fanuc 0i-TF) |
| Dimensions | 31.5" x 66" x 70.8" |
| Weight | 3,792 lbs |
General Specifications:
Turning Diameter w/
-5c Collet: 1-1/16"
-Dead-Length Collet Chuck: ø 1-3/16"
-High Precision Air Chuck: ø 3 -5/32"
-5” Hydraulic 3-Jaw Chuck: ø 3 -5/32"
-Diaphragm Chuck: 3 -5/32"
-Turning Length: 2.36"
Spindle
Through Hole: 1.77"
Draw Tube: 1.38"
Motor Power: 7.5 HP
Spindle Speed: 6,000 RPM
Axis
X-Axis Stroke: 8.27"
Z-Axis Stroke: 7.87"
X-Axis Servo Motor: 1 HP
Z-Axis Servo Motor: 1 HP
X/Z Axis Rapid Speed: 787 IPM
Tools
Number of Tools: 6 (2OD / 4ID)
Turning Tool: 0.63"
Drill Shank: 3/4"
Machine Dimensions: 31.5" x 66" x 70.8"
Machine Weight: 3,792 lbs
Fanuc 0i-TF CNC Control
Epson N2 6-Axis Folding Robot Arm
12 Station Rotary Stacker
