Fanuc Robodrill Alpha D21SIB5 Drilling and Tapping Machine, New in 2021
Have one to sell?
ConditionUsed
1 available
Fanuc Robodrill Alpha D21SIB5 Drilling and Tapping Machine, New in 2021
Like New! Installed in 2024 - Two hours / 24k RPM spindle
General Specifications:
X-Axis Travel: 300 mm (11.8")
Z-Axis Travel: 330 mm (13")

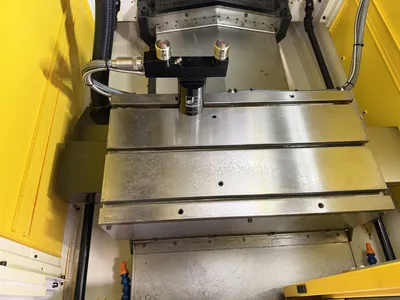

Table Size: 500 x 300 mm (19.7" x 11.8")
Max Table Load: 100 kg (220 lb)
Spindle Speed: 24,000 RPM
Spindle Motor Power: 11 kW (15 hp) standard
Spindle Taper: BBT30
Tool Change Time: 0.7 sec (tool-to-tool), 1.3 sec (chip-to-chip)
Rapid Traverse Rate: 54 m/min (2,125 ipm)
Positioning Accuracy: ±0.003 mm (±0.00012")
Repeatability: ±0.002 mm (±0.00008")

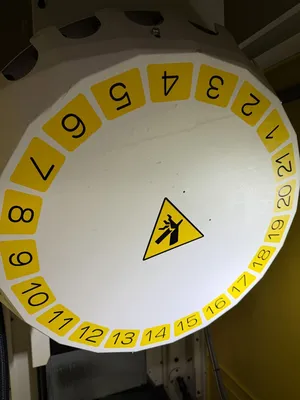

Tool Capacity: 21
Machine Dimensions: 68.9" x 63"
Machine Weight: 7,716 lbs

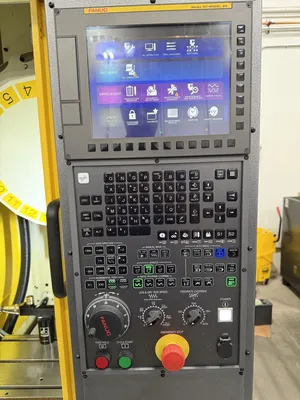

Fanuc 31i-B5 Plus CNC Control
24,000 RPM
Renishaw Probe Kit

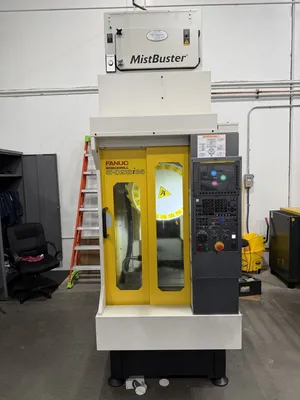

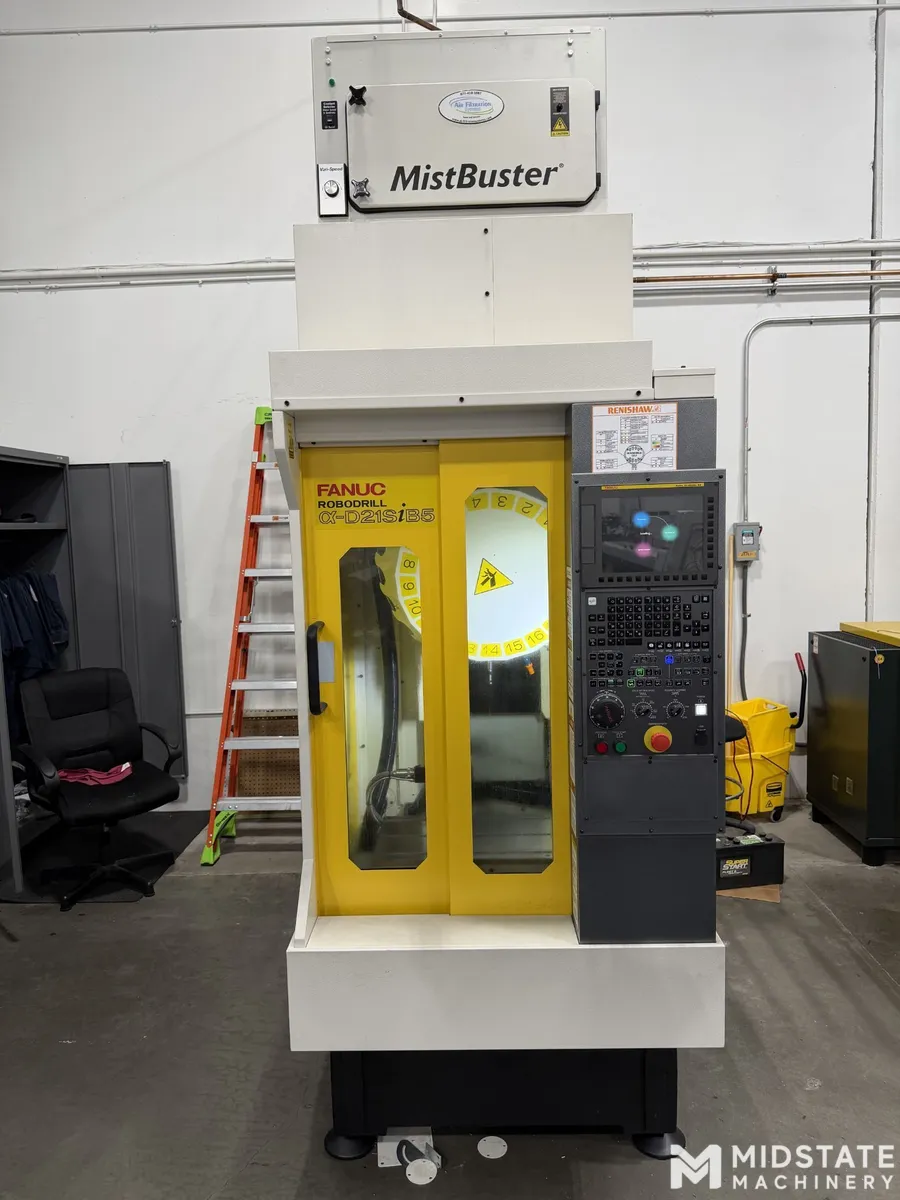

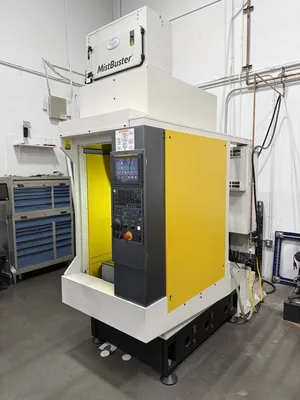

Mist Buster Mist Collector
CTS Ready (Plumbed for Through Spindle Coolant)
Bed flush and wash down pumps

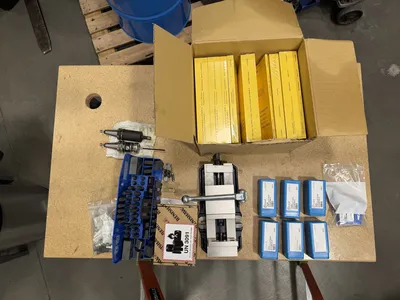

6 misc tools
Vice included

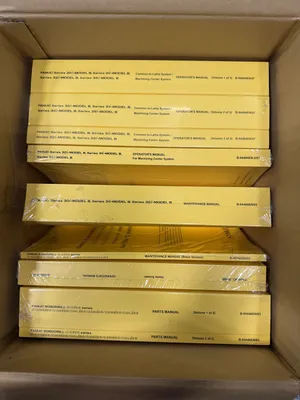

All Available Tooling and Manuals
Fanuc Robodrill Alpha D21SIB5 Drilling and Tapping Machine, New in 2021
Like New! Installed in 2024 - Two hours / 24k RPM spindle
Imperial
| X-Axis | 11.8" |
| Y-Axis | 11.8" |
| Z-Axis | 13" |
| Power | 15 hp |
| RPM | 24,000 RPM |
| # ATC | 21 |
| Taper | BBT30 |
| Control | CNC (FANUC 31i-B5) |
| Dimensions | 68.9" x 63" |
| Weight | 7,716 lbs |
General Specifications:
X-Axis Travel: 300 mm (11.8")
Z-Axis Travel: 330 mm (13")
Table Size: 500 x 300 mm (19.7" x 11.8")
Max Table Load: 100 kg (220 lb)
Spindle Speed: 24,000 RPM
Spindle Motor Power: 11 kW (15 hp) standard
Spindle Taper: BBT30
Tool Change Time: 0.7 sec (tool-to-tool), 1.3 sec (chip-to-chip)
Rapid Traverse Rate: 54 m/min (2,125 ipm)
Positioning Accuracy: ±0.003 mm (±0.00012")
Repeatability: ±0.002 mm (±0.00008")
Tool Capacity: 21
Machine Dimensions: 68.9" x 63"
Machine Weight: 7,716 lbs
Fanuc 31i-B5 Plus CNC Control
24,000 RPM
Renishaw Probe Kit
Mist Buster Mist Collector
CTS Ready (Plumbed for Through Spindle Coolant)
Bed flush and wash down pumps
6 misc tools
Vice included
All Available Tooling and Manuals
