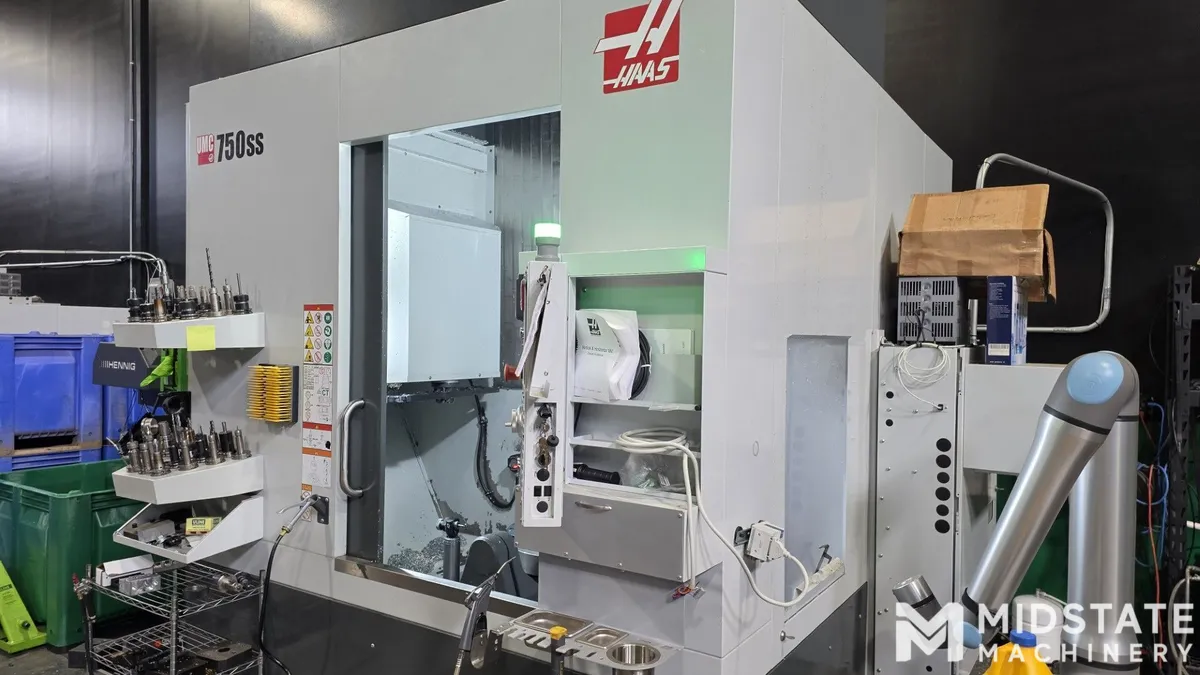

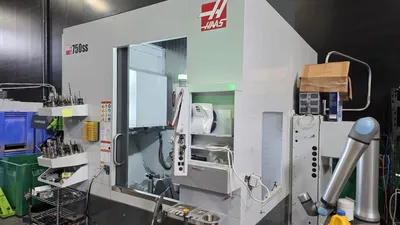

HAAS UMC-750SS Universal Machining Center
Have one to sell?
ConditionUsed
1 available
HAAS UMC-750SS Universal Machining Center
New: 2022
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 50 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Haas Next Gen CNC Control
50+1 Automatic Tool Changer
12,000 RPM Spindle
Henning CFD Chip Conveyor
300 PSI Through Spindle Coolant
Through Table Air
Wifi Camera
Mist Condensor
Auto Coolant Refill
Chip Basket Filter
Auxilary Coolant Filter
Electrical Cabinet AC Cooler
Macros
Rotation & Scaling
Rigid Tapping
Tool Center Point Control and Dynamic Work Offsets
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
Fourth Axis
Fifth Axis
Max Memory: 1 GB
Wireless Networking
Compensation Tables
HAAS UMC-750SS Universal Machining Center
New: 2022
Imperial
| X axis | 30" |
| Y axis | 20" |
| Z axis | 20" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 40 |
| Taper | CT or BT 40 |
| Table-W | 19.7" |
| Table-L | 24.8" |
| Dimensions | 160" x 96" x 110" |
| Weight | 19,100 LBS |
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 50 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
Haas Next Gen CNC Control
50+1 Automatic Tool Changer
12,000 RPM Spindle
Henning CFD Chip Conveyor
300 PSI Through Spindle Coolant
Through Table Air
Wifi Camera
Mist Condensor
Auto Coolant Refill
Chip Basket Filter
Auxilary Coolant Filter
Electrical Cabinet AC Cooler
Macros
Rotation & Scaling
Rigid Tapping
Tool Center Point Control and Dynamic Work Offsets
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
Fourth Axis
Fifth Axis
Max Memory: 1 GB
Wireless Networking
Compensation Tables
