HAAS ST-40 CNC Turning Center, New in 2018
Have one to sell?
ConditionUsed
1 available

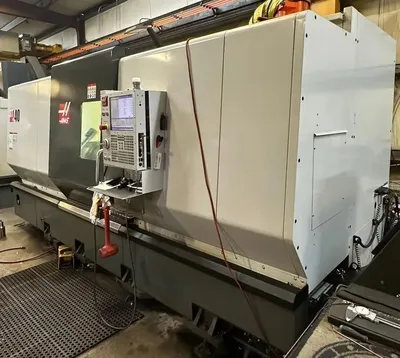

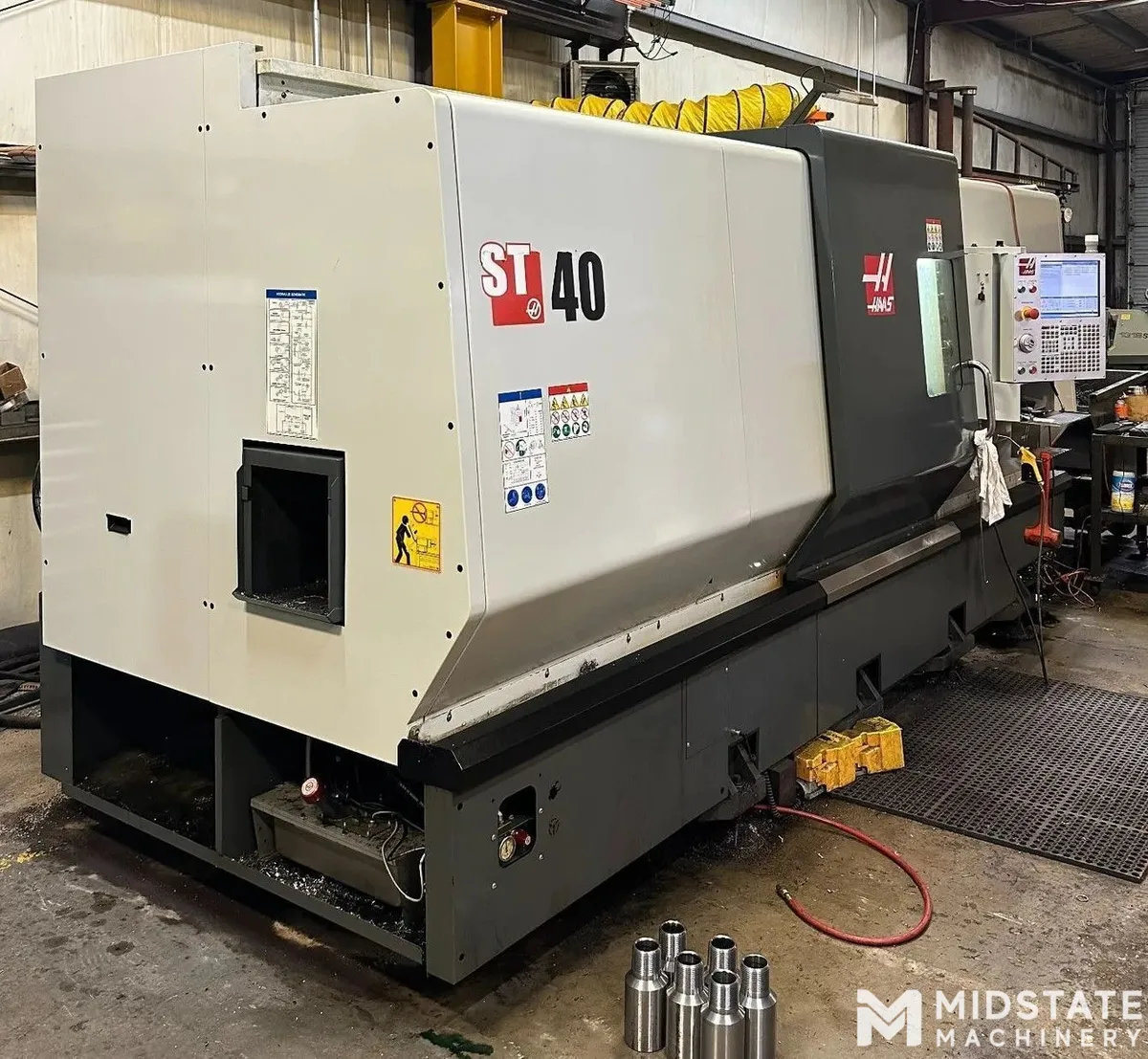

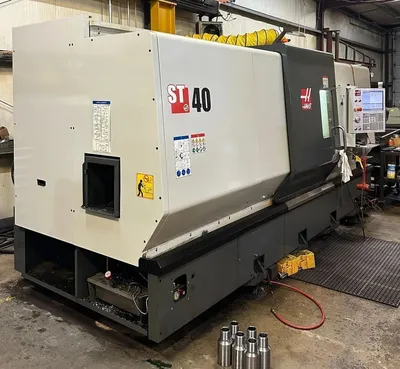

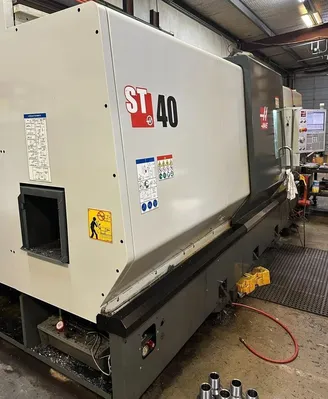

HAAS ST-40 CNC Turning Center, New in 2018.
15" Chuck.
General Specifications:
Swing 34.5"
Machining Length 1,118 mm
Chuck Size 15"
Bar Capacity 4"
Power 40 hp
Max RPM 2,400 RPM
Turning Dia 25.5"
Tailstock No

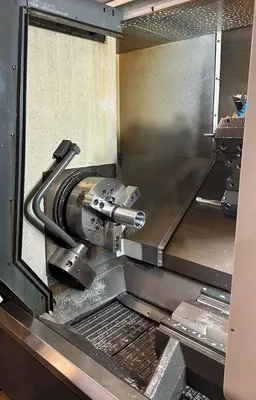

15" 3-Jaw Hydraulic Chuck
2,400 rpm 2-Speed A2-8 Spindle
Extra-Performance Spindle Option 55 hp
4" Bar Capacity
Tool Pre-Setter
34.5" Max Turning Dia
44" Max Turning Length
34.5" Max Swing
17" X-Axis Travel
44" Z-Axis Travel

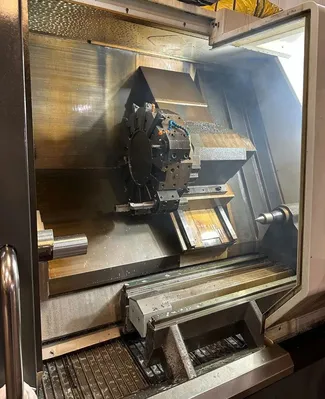

12 Station BOT Turret
300 psi High Pressure Coolant
Remote Jog Handle
Rigid Tapping
710 IPM Rapids X & Z Axis
Ethernet / Wifi / 1 GB Memory
HAAS Connect
Media Display M-Code
User Definable Macros
Visual Part Programming
Extended Tool Pocket
High Intensity Lighting
95 Coolant Tank and Pump

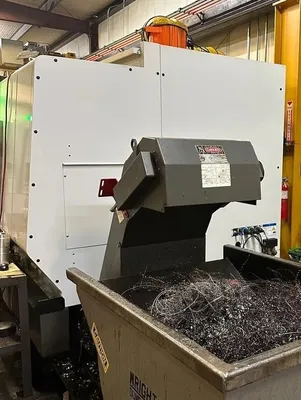

Chip Conveyor
All Available Manuals
* Tailstock Not Included*
