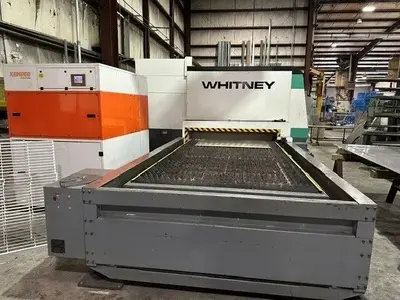

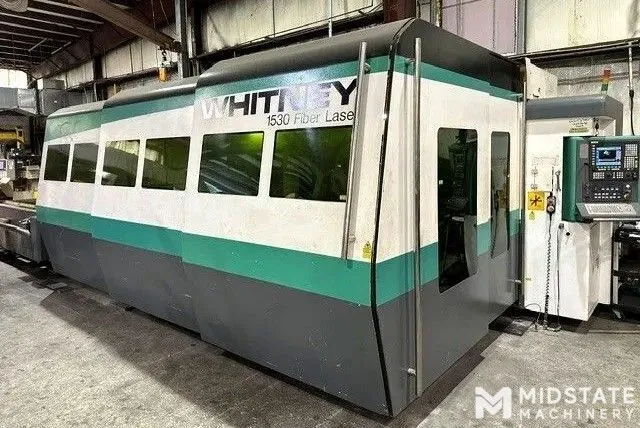

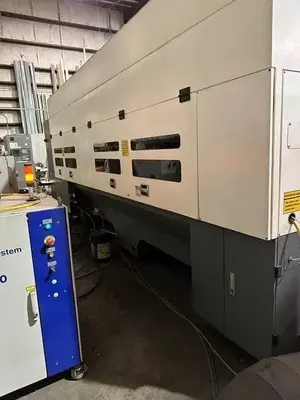

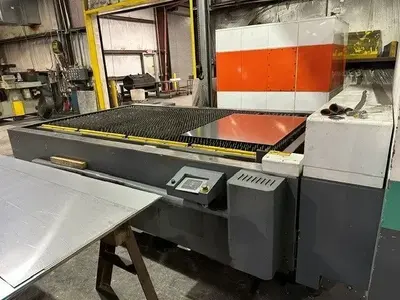

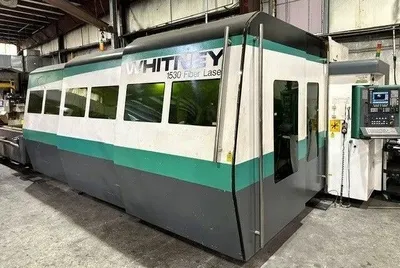

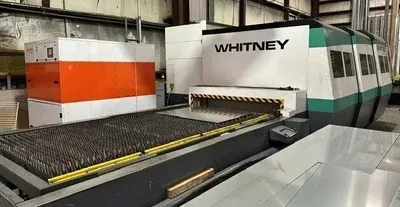

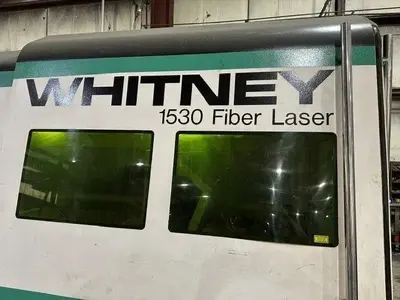

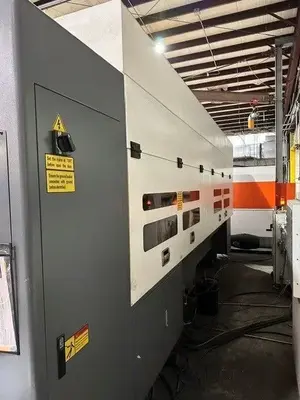

WHITNEY 1530 Fiber Laser Cutter, New in 2014

General Specifications:

Length 25'
Width 8'
Height 7'
Nominal sheet size X 60"
Nominal sheet size Y 120"
Cutting area X 118"
Cutting area Y 59"
Cutting area Z 3.9"
Max. positioning speed parallel axis x, y 3150 in
Max. simultaneous positioning speed 4,450"
Bilateral repeatability of positioning of one axis R (ISO 230-2:2014) 0.001 in
Averaged, bilateral position deviation of one axis M (ISO 230-2:2014) 0.002"
Max. workpiece weight 2000 lb
Machine weight 20000 lb
Table change over time 30 s
Power 2000 w
Polarization Polarized
Wavelength 1070
Pulse frequency 5000
Max sheet thicknesses (Steel) 0.75"
Max sheet thicknesses (Stainless Steel) 0.375"
Max sheet thicknesses (Aluminum) 0.313"
Max sheet thicknesses (Brass) 0.187"
Max sheet thicknesses (Copper) 0.125"
Total electrical consumption of system 20 kw

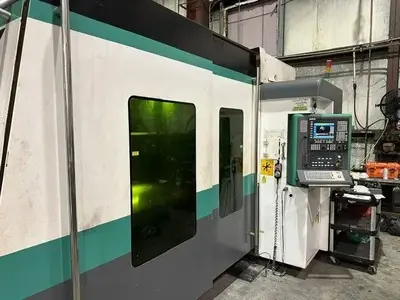

Control CNC
Dimensions 25 ft x 8 ft x 7 ft
Weight 20,000 lb
