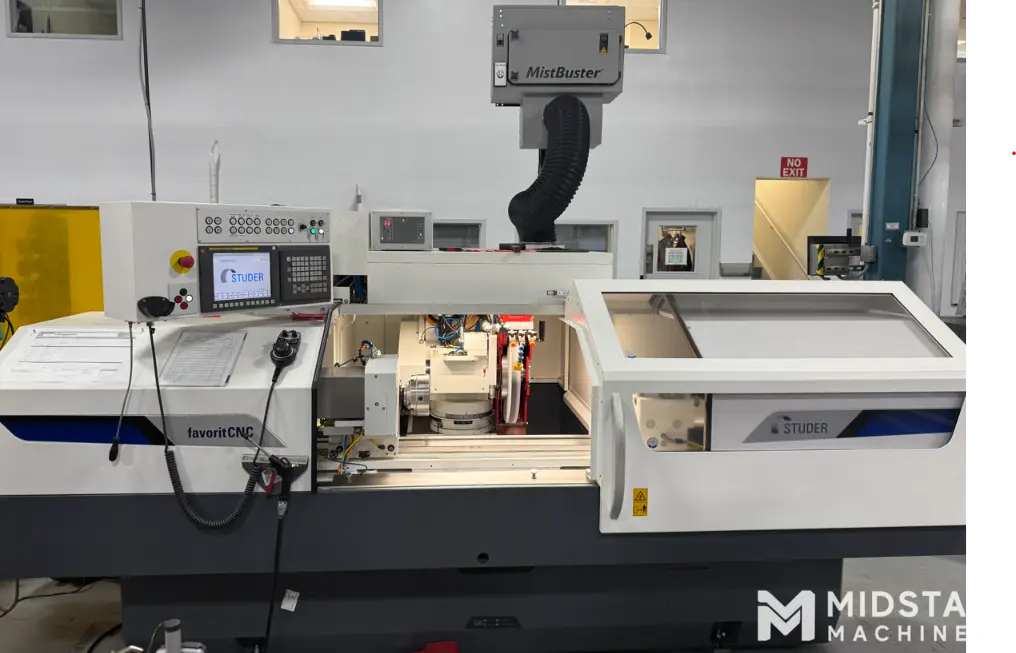

STUDER FAVORIT-CNC ID & OD Cylindrical Grinder, New in 2023
Have one to sell?
ConditionUsed
1 available
STUDER FAVORIT-CNC ID & OD Grinder, New in 2023.
**Very Low Hours**
General Specifications:
Linear Axes:
Max. Travel X 285 mm
Max. Travel Speed X 10'000 mm/min
Max. Travel Z 800 mm
Max. Travel Speed Z 20'000 mm/min
Spindle drive:
Max. Spindle Power 11.5 kW
Max. Number Of Revolutions 2'810 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 110 mm
Swiveling Axes:
Swiveling Range B 210 °
Swiveling Range C ∞ °
Workpiece Data:
Workpiece Length 650 mm
Workpiece Diameter 349 mm
Max. Workpiece Weight 80 kg
Distance Between Centers 1000 mm
Center Height 175 mm
6" 3 jaw chuck
7" magnetic chuck
Only ran oil
**Very Low Hours- approx 1300** (about 8 months of use)
