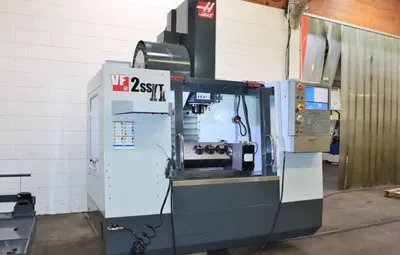

Haas VF-2SSYT Vertical Machining Center, New in 2015
Have one to sell?
ConditionUsed
1 available
Haas VF-2SSYT Vertical Machining Center, New in 2015
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 30+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons
Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Machine Weight: 8,500 lbs
AS OF AUGUST 2026, SPINDLE TIME - 4,908 HOURS
Haas CNC Control
Haas T5C3 5-Axis Rotary Table (Tilting 3-Head 5C Indexer)
4th/5th Axis Drive Wiring
Renishaw Wireless Probing System
Coordinate Rotation & Scaling
(8) Spare M-Functions
Spindle Orientation
Rigid Tapping
Macros
Ethernet
USB Port
750MB Extended Memory
Haas VF-2SSYT Vertical Machining Center, New in 2015
Imperial
| X-Axis | 30" |
| Y-Axis | 20" |
| Z-Axis | 20" |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 24 |
| Taper | CT or BT 40 |
| Table-W | 18" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Weight | 8,500 lbs |
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 30+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons
Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Machine Weight: 8,500 lbs
AS OF AUGUST 2026, SPINDLE TIME - 4,908 HOURS
Haas CNC Control
Haas T5C3 5-Axis Rotary Table (Tilting 3-Head 5C Indexer)
4th/5th Axis Drive Wiring
Renishaw Wireless Probing System
Coordinate Rotation & Scaling
(8) Spare M-Functions
Spindle Orientation
Rigid Tapping
Macros
Ethernet
USB Port
750MB Extended Memory
