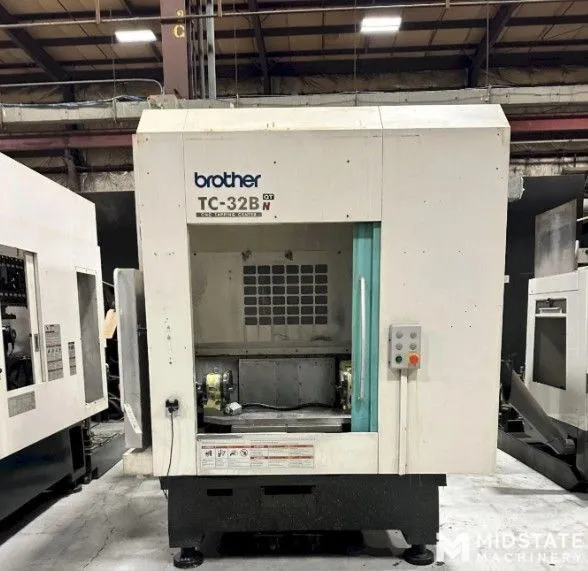

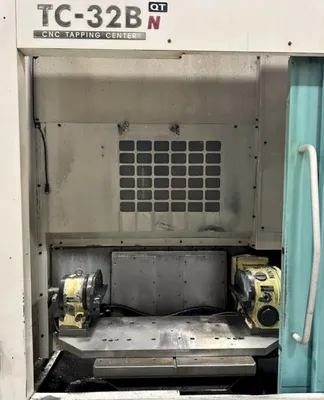

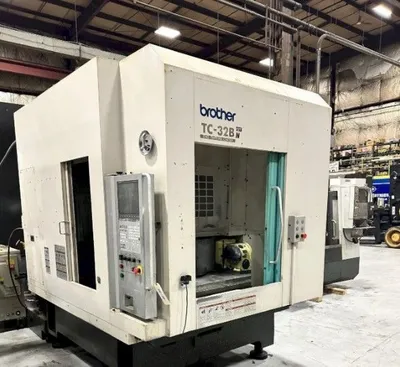

Brother TC-32BN Drilling and Tapping Center, New in 2013

General Specifications:

TRAVEL:
X-axis: 21.7
Y-axis: 15.7"
Z-axis: 16.3"
Distance between tabletop to spindle nose: 26"

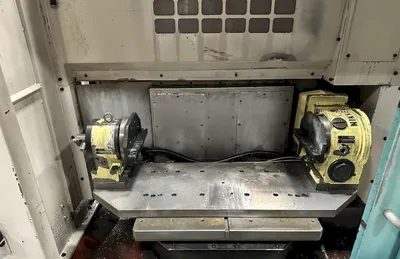

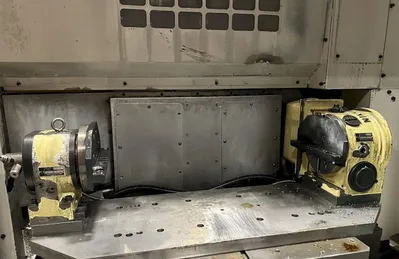

TABLE:
Work area size: 25.6" x 17.7"
Maximum loading capacity: 551 lbs.
Table surface: T slotted

SPINDLE:
Spindle speed IPM motor: 16 - 16,000 RPM
Tapping speed: 8,000 RPM
Spindle taper: 7/24, #30 Taper

FEED RATE:
Rapid traverse X, Y & Z-axis: 2,755 IPM
Cutting feed rate: 0.04-787 IPM

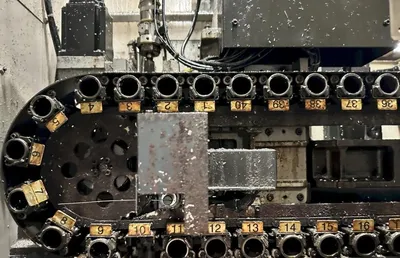

ATC:
Tool storage capacity: 40
Tool shank type: MAS-BT30
Pull stud type: (BT30) MAS-P30T-2
Maximum tool diameter: 4.9"
Maximum tool length: 9.8"
Maximum tool weight: (176 lbs. total in magazine): 7.7 lbs.
Tool selection: Random Path
Tool Change time: (tool-to-tool in seconds) (chip-to-chip in seconds) 0.9 / 2.4

MOTORS:
For IPM spindle: 13.41 / 9.8 HP
For axis feed X, Y & Z-axis: 1.74 HP
Z-axis thrust: 2005 ft-lbs.

POWER SOURCE:
Power supply: 200V-230V, 3-Ph. +- 10% 50/60Hz
Power capacity KVA for IPM (max): 18 (37)
Working air pressure MPa: 0.4-0.6 (4~6kg f/cm2 )
Required air flow L/min: 180

Machine Dimensions: 74.4" x 144.4" x 92.9"
Machine Weight: 10,200 lbs
