DN Solutions DVF4000 Vertical Machining Center, New in 2025
Have one to sell?
ConditionUsed
1 available

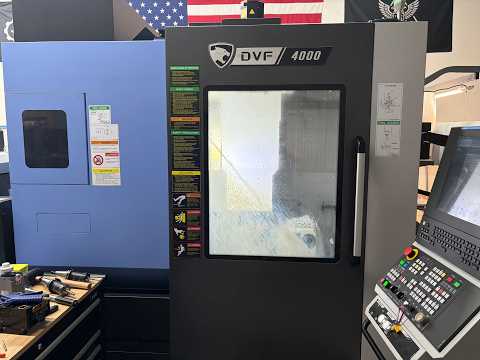

DN Solutions DVF4000 Vertical Machining Center, New in 2025
Only 400 Hours!
General Specifications:
Table Size: 15.75"
Max Part Diameter: 19.68"
Max Part Height: 18.89"
Max Load: 440 lbs.
X-Axis Travel: 24.4"
Y-Axis Travel: 17.32"
Z-Axis Travel: 16.92"
B-Axis Travel: +110° -30°
C-Axis Travel: 360°
Rapid Traverse Rate (X, Y, Z): 1,417 IPM
Spindle Speed: 15,000 RPM
Spindle Motor: 24.8 HP
Spindle Torque: 86.9 ft-lbs
Tool Length: 11.8"
Tool Diameter: 2.95/4.9"
Spindle Taper: CAT 40
Tool Positions: 40
Machine Dimensions: 109" x 109" x 87"
Machine Weight: 16,534 lbs
Fanuc DN Cufos CNC Control
Tool Setter
Probing
Through Spindle Coolant

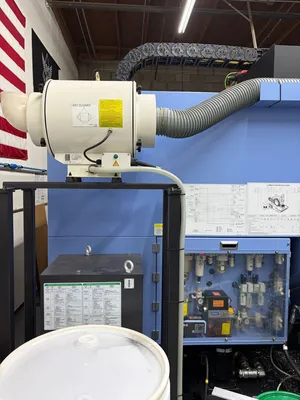

Mist Collector
Tool Break Detection
DN Solutions DVF4000 Vertical Machining Center, New in 2025
Only 400 Hours!
Imperial
| X-Axis | 24.4" |
| Y-Axis | 17.32" |
| Z-Axis | 16.92" |
| Power | 24 hp |
| RPM | 15,000 RPM |
| # ATC | 40 |
| Taper | CAT 40 |
| Table-W | 15.75" |
| Table-L | 15.75" |
| # Axis | 3 |
| Control | CNC (Fanuc DN CUFOS) |
| Dimensions | 109" x 109" x 87" |
| Weight | 16,534 lbs |
General Specifications:
Table Size: 15.75"
Max Part Diameter: 19.68"
Max Part Height: 18.89"
Max Load: 440 lbs.
X-Axis Travel: 24.4"
Y-Axis Travel: 17.32"
Z-Axis Travel: 16.92"
B-Axis Travel: +110° -30°
C-Axis Travel: 360°
Rapid Traverse Rate (X, Y, Z): 1,417 IPM
Spindle Speed: 15,000 RPM
Spindle Motor: 24.8 HP
Spindle Torque: 86.9 ft-lbs
Tool Length: 11.8"
Tool Diameter: 2.95/4.9"
Spindle Taper: CAT 40
Tool Positions: 40
Machine Dimensions: 109" x 109" x 87"
Machine Weight: 16,534 lbs
Fanuc DN Cufos CNC Control
Tool Setter
Probing
Through Spindle Coolant
Mist Collector
Tool Break Detection
