METHODS MV 1000L Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

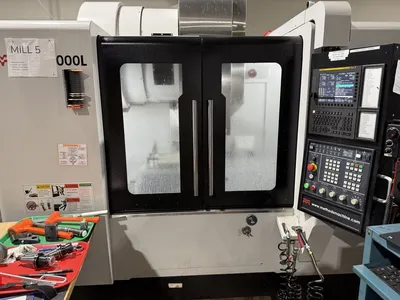

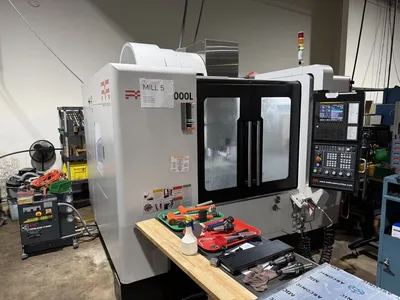

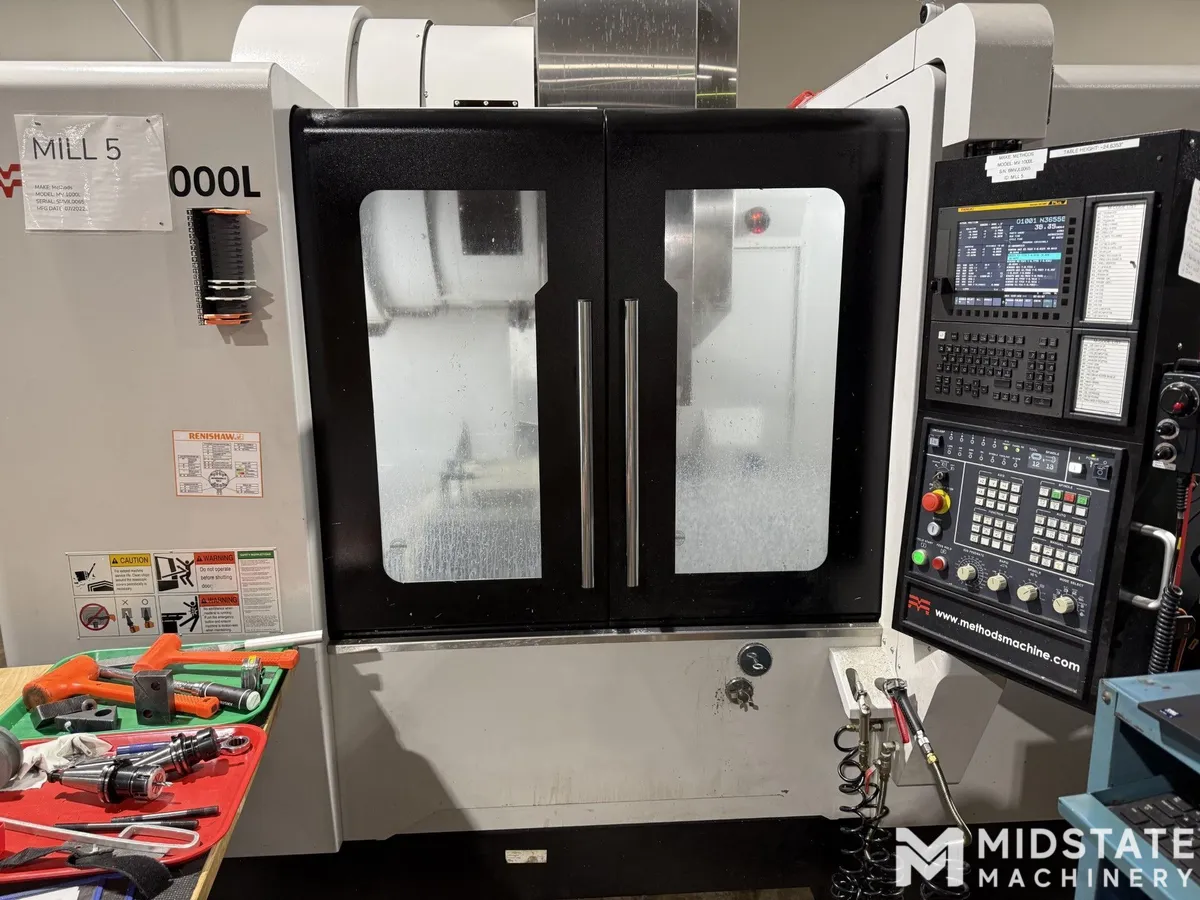

The 2022 Methods MV-1000L is a heavyweight, high-performance 3-axis CNC vertical machining center (VMC) engineered by Methods Machine Tools. Known for its rigid build and premium components like its 19 hand-scraped mating surfaces, this machine is designed to bridge the gap between high-speed precision finishing and aggressive heavy-duty roughing. It is widely used across demanding industries such as aerospace, medical, automotive, and die/mold manufacturing.
CNC Control: Equipped with a dependable FANUC 0i-MF Plus Control system.
Work Envelope & Travel: Features axes travels of 39.4" (X) x 20.47" (Y) x 20.7" (Z) with a 45.3" x 20.5" table size.
Spindle Performance: Features a 12,000 RPM, 20 HP direct-drive spindle utilizing a CAT40 BIG-PLUS dual-contact system for maximum rigidity and minimized tool deflection.
Motion & Speed: Utilizes precision linear roller guideways across all three axes, enabling rapid travel speeds of up to 2,362 IPM on X/Y and 1,181 IPM on Z.
Tool Changer: Built with a 30-tool automatic tool changer (ATC) delivering a lightning-fast tool-to-tool swap time of just 1.8 seconds.
Chip Management: Built-in dual chip augers, a hinge-type conveyor, and a comprehensive coolant flush and wash system come standard.
