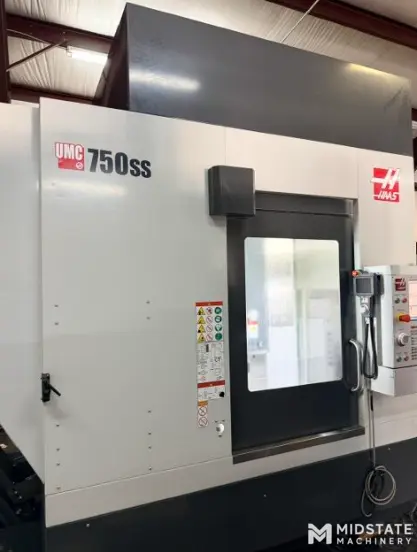

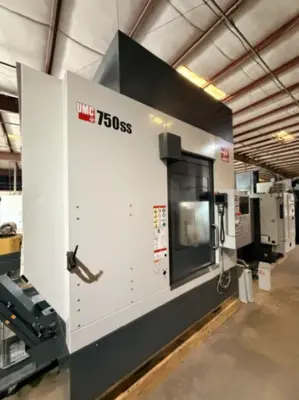

Haas UMC-750SS UMC 5-Axis Machining Center, New 2024
Have one to sell?
ConditionUsed
1 available
Haas UMC-750SS UMC 5-Axis Machining Center, New 2024
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle to Nose Platter: 24"
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Torque: 90 ft-lbf @ 2000 RPM
Taper: CT40 / BT 40 / HSK-A63
B-Axis Tilt
Travel: -35 - 100
Speed: 50 Degree/Second
Torque (Continuous): 2240 ft-lbf
C-Axis Rotation
Travel: 360 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 1854 ft-lbf
Part Swing: 27"
Platter
Platter Diameter: 19.7"
Weight on Platter: 660 lbs
Weight on Platter w/ Pallet Pool: 200 lbs
T-Slot Center Distance: 2.48"
Feedrates
X/Y/Z - Axis: 1200 IPM
Tool Changer
Capacity: 50
Tool Diameter: 5" / 3"
Tool Diameter: 5"
Tool Length: 12"
Tool Weight: 12 lbs
Machine Dimensions: 168" x 92.5" x 110"
Machine Weight: 14,250 lbs
Haas NextGen CNC Control
5-Axis Simultaneous Contouring Capability
Integral Rotary/Tilt Trunnion Table
Through Spindle Coolant (300 psi)
High Speed 50+1 Side Mount Tool Changer
Belt-Type Chip Conveyor (Left Rear Exit)
Wireless Intuitive Probing System
Rotary Scales
Remote Jog Handle with Touchscreen Display
95 Gallon Coolant Tank
High Speed Machining
Rigid Tapping
Top Cover
Spindle Orientation
Coordinate Rotation and Scaling
User Macro Variables
Chip Tray Filter Kit
Enclosure Exhaust
