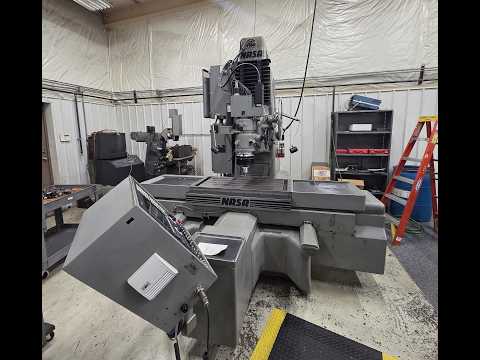

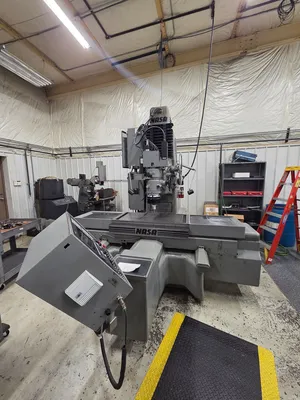

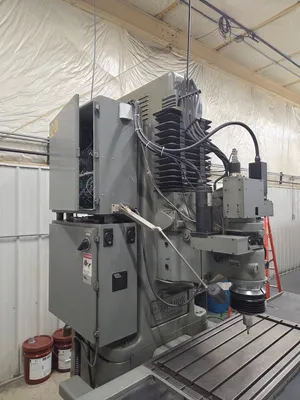

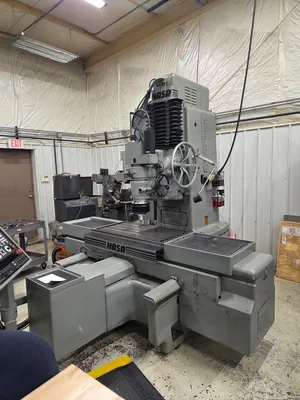

MOORE-FOSDICK 44G Jig Grinder

General Specifications:
24" CNC CROSS TRAVEL (Y AXIS)

42" CNC LONGITUDINAL TRAVEL (X AXIS)

360 DEGREES CNC ROTATION OF C AXIS (AUTOMATIC

C AXIS NORMALCY)

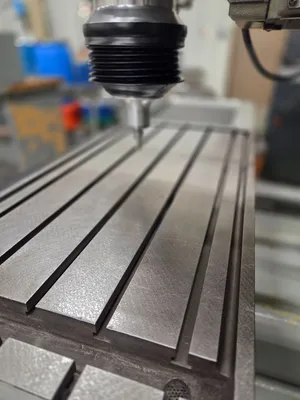

TABLE SIZE 22" X 44"

TABLE CAPACITY 4000 LBS

RAPID TRAVERSE RATE 20 IPM

CONTOURING RATE 15 IPM

TABLE TOP TO WHEEL COLLET 1" TO 27 1/2"

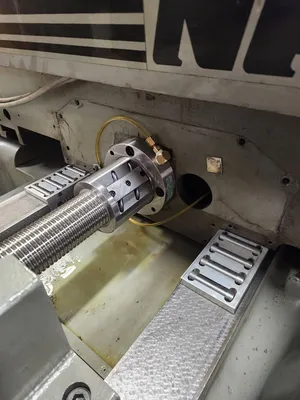

ULTRA PRECISION BALLSCREWS ON THE X & Y AXES, W/5000

LINE ENCODERS MOUNTED DIRECTLY ON THE BALLSCREWS

FOR HIGH ACCURACY

UNIQUE, PRECISION ROLLER BEARING WAY SYSTEM

CLOSED LOOP AC SERVO DRIVE MOTORS

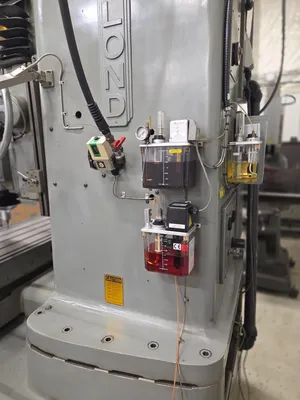

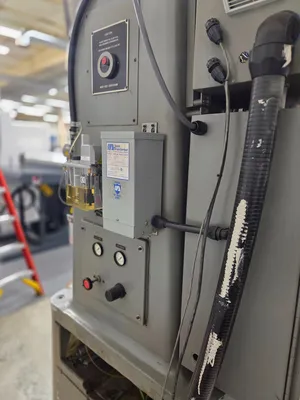

TWO (2) AUTOMATIC LUBRICATION SYSTEMS WITH LOW

LEVEL ALARMS FOR ROLLER WAY SYSTEM, BALLSCREWS

AND HEAD COMPONENTS

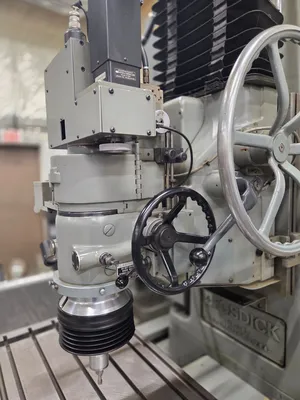

PROGRAMMABLE MAIN SPINDLE SPEEDS CW/CCW/OFF (PLANETARY)

PROGRAMMABLE CHOP GRIND ON/OFF WITH HEAD UP MICRO SWITCH

PROGRAMMABLE 110 V AC OUTLETS ON/OFF

PORTABLE MANUAL PULSE GENERATOR (HANDWHEEL) FOR EASY

SET-UP

X,Y & C HOME SWITCHES WITH INDICATOR LIGHTS

X & Y LIMIT SWITCHES

X & Y LIMIT SWITCH INDICATOR LIGHTS

PROGRAMMABLE U AXIS OUTFEED W/HOME AND LIMIT SWITCHES

MINIMUM PROGRAMMABLE RESOLUTION .000010"

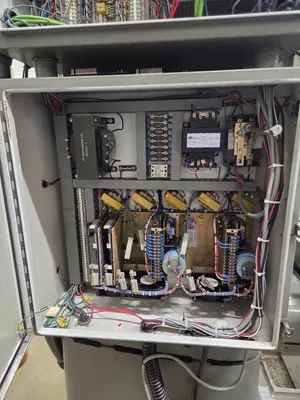

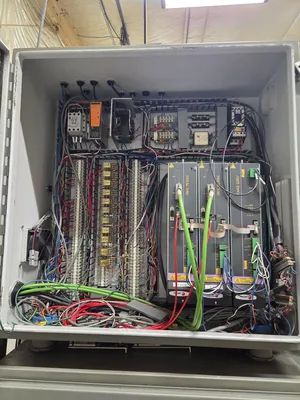

STAND ALONE CONTROL CABINET WITH ELECTRONICS

ORIGIAL RETORFIT WORK PERFORMED IN YEAR 2000:

COMPLETE MECHANICAL REBUILD, INCLUDING THE FOLLOWING:

NEW MAIN SPINDLE BEARINGS

NEW OUTFEED BEARINGS

NEW U-CUPS, PACKINGS, WPIER, SEALS AND O-RINGS

NEW HEAD THERMOMETER

NEW CHOP VALVES (2 WAY AND 4 WAY)

NEW MICRO SWITCHES

NEW LINK AND LINK PINS

RE-GRIND QUILLKEYWAY, AND "FIT" SLIDE AND SLEEVE

SCRAPING OF THE COLUMN, TABLE AND SADDLE FOR GEOMETRY CORECTION

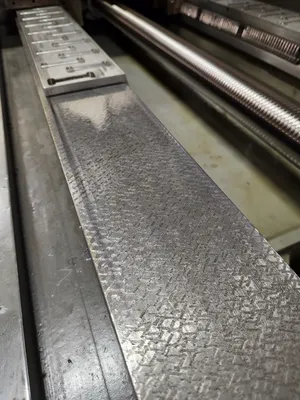

SPOTTING OF THE TABLE SURFACE

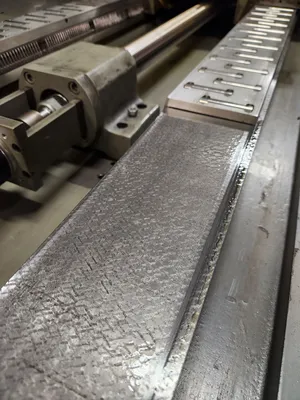

LAPPING OF THE TABLE AND SADDLE WAYS FOR PROPER ROLLER

BEARING CONTACT

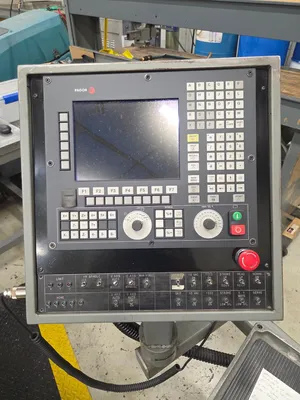

CONTROL SPECIFICATIONS

FIVE (5) AXIS, 32 BYTE, MICROPORCESSOR CNC

GRAPHICS DISPLAY WITH ZOOM FUNCTIONS

AUTOMATIC C AXIS NORMALCY

ABSOLUTE / INCREMENTAL PROGRAMMING

INCH/METRIC CONVERSION

MINIMUM RESOLUTION .000010"

WHEEL COMPENSATION

USB SUPPORT
