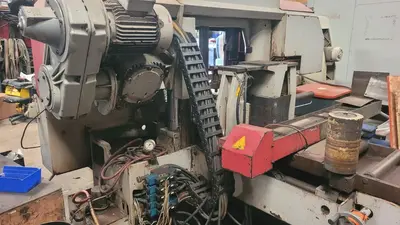

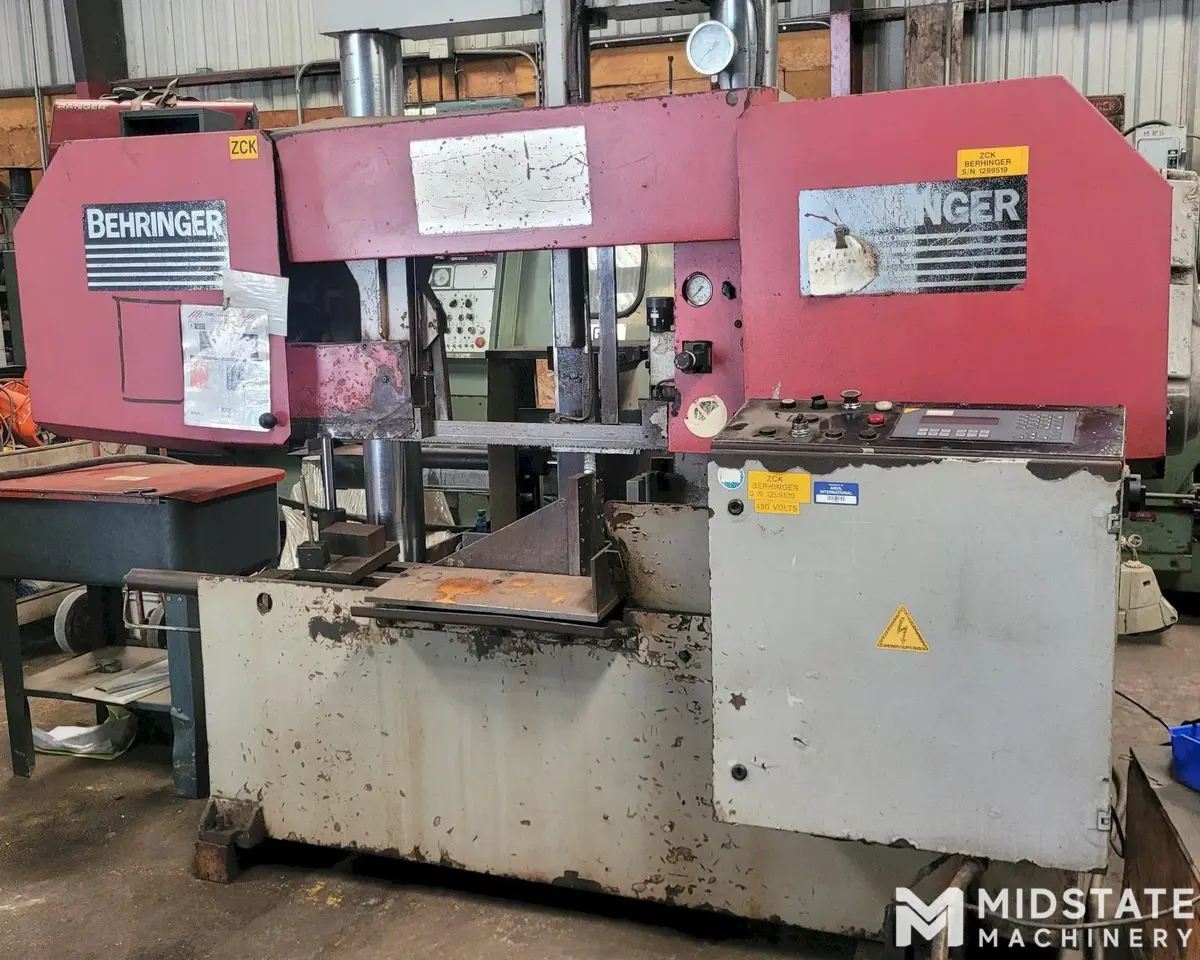

BEHRINGER HBP 430A Dual Column Horizontal Band Saw, New in 1999
Have one to sell?
ConditionUsed
1 available
BEHRINGER HBP 430A Dual Column Horizontal Band Saw, New in 1999.
General Specifications:
Cutting Capacity (Round): 17"
Cutting Capacity (Rectangle): 17" x 17"
Saw Blade Dimensions: 19'0" x 2" x .063"
Working Height: 27.6"
Drive Motor Power: 7.4 HP
Blade Speed Range: 65 - 426 SFM
Stroke Feed Length: 23.6"
Max Feed Length: 212.6"
Band Wheel Diameter: 24.8"
Diameter of Columns: 5.9"
Hydraulic Blade Guide Clamping
Automatic Movable Guide Arm Positioning
NC Control with 10 Program Capacity
Carbide Blade Guides
BEHRINGER HBP 430A Dual Column Horizontal Band Saw, New in 1999.
Imperial
| Rect-Cap (H) | 17" |
| Rect-Cap (W) | 17" |
| Rounds-Cap | 17" |
| Square-Cap | 17" |
| Power | 7.4 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 2" |
| Blade Thickness | 0.063" |
| Blade Length | 19' |
| Dimensions | 119" x 87"x 80" |
| Weight | 7500 lbs |
General Specifications:
Cutting Capacity (Round): 17"
Cutting Capacity (Rectangle): 17" x 17"
Saw Blade Dimensions: 19'0" x 2" x .063"
Working Height: 27.6"
Drive Motor Power: 7.4 HP
Blade Speed Range: 65 - 426 SFM
Stroke Feed Length: 23.6"
Max Feed Length: 212.6"
Band Wheel Diameter: 24.8"
Diameter of Columns: 5.9"
Hydraulic Blade Guide Clamping
Automatic Movable Guide Arm Positioning
NC Control with 10 Program Capacity
Carbide Blade Guides
