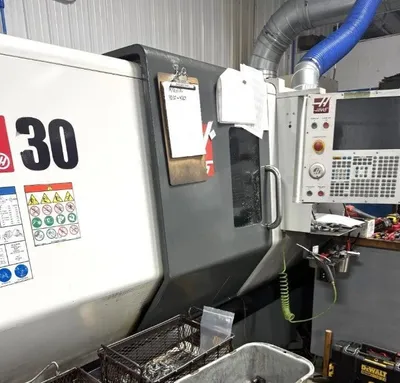

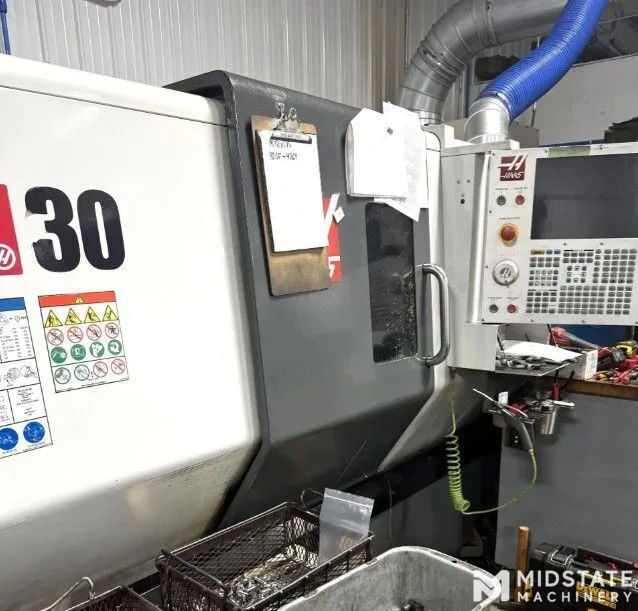

Haas ST-30 CNC Turning Center, New in 2019
Have one to sell?
ConditionUsed
1 available
Haas ST-30 CNC Turning Center, New in 2019
Tool Presetter
Tailstock
Under 3,000 Hours
Max Swing Over Front Apron: 31.75"
Max Swing Over Cross Slide: 20.75"
Max Cutting Diameter: 15"
Max Cutting Length: 32.5"
Between Centers: 30"
Chuck Size: 10"
Bar Capacity: 3"
Spindle Nose: A2-6
Spindle Bore: 3.5"
Max Spindle Speed: 3,400 RPM
Spindle Motor Power: 30 hp
Spindle Torque: 300 ft-lb @ 500 RPM
Spindle Torque Optional Gearbox: 1,000 ft-lb @ 150 RPM
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Traverse X: 472 ipm
Rapid Traverse Z: 945 ipm
Max Thrust X: 4,100 lbf
Max Thrust Z: 5,100 lbf
Tool Capacity: 12-station BOT
Coolant Capacity: 55 gal
Under 3,000 Hours

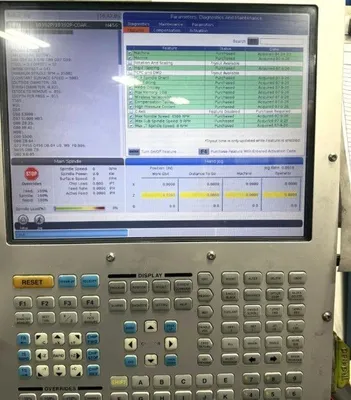

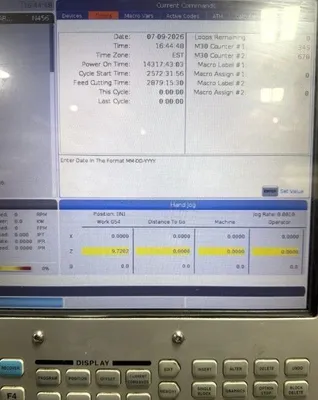

Haas Nextgen CNC Control

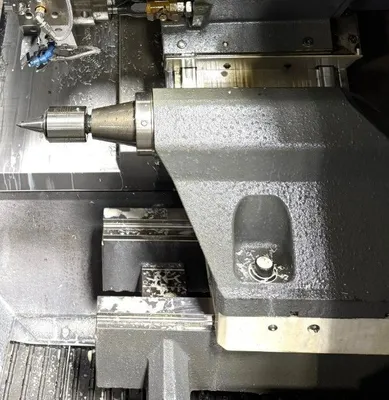

Programmable Tailstock
WIPS
Tool Presetter
Chip Conveyor
4,500 RPM Spindle Upgrade
Air Blast
High Pressure Coolant (300 PSI)
Visual Part Programming
Spindle Orientation
Rigid Tapping
Macros
Early Power Failure Detection
Ethernet
1GB Memory
Haas Connect
