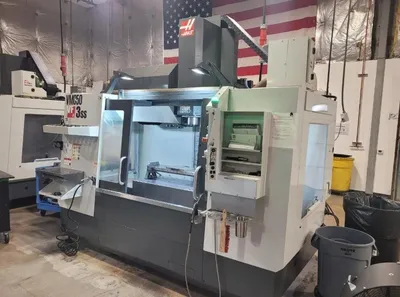

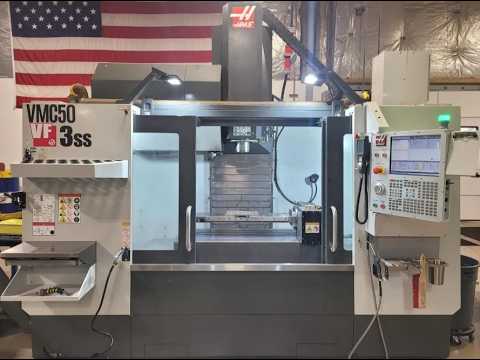

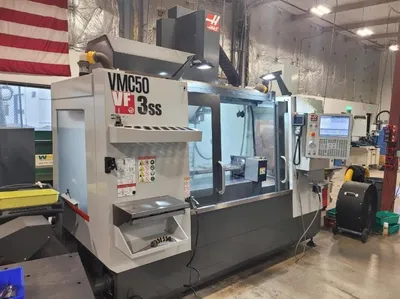

Haas VF-3SS Vertical Machining Center, New in 2024
Have one to sell?
ConditionUsed
1 available

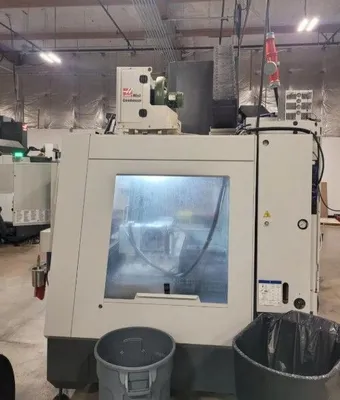

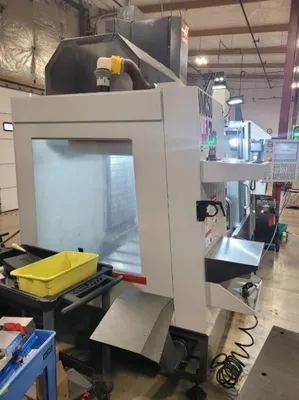

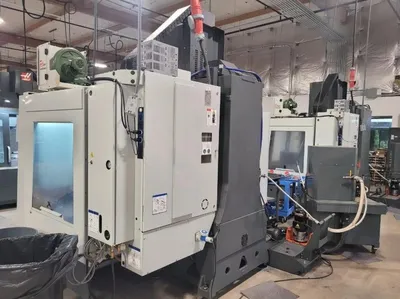

Haas VF-3SS Vertical Machining Center, New in 2024
Power On Time: 4,134
Cycle Start Time: 934
Feed Cutting Time: 791
General Specifications:

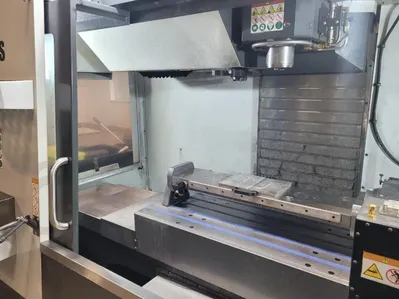

Table Size: 48" x 18"
Table Load: 1,750 lbs
X-Axis Travel: 40"
Y-Axis Travel: 20w"
Z-Axis Travel: 25"
Spindle Nose to Table: 4.2" - 29.2"

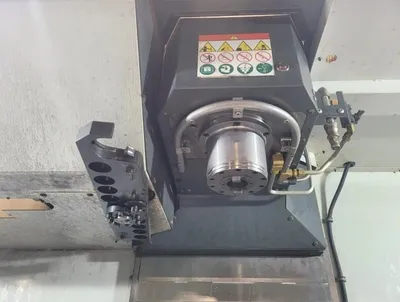

Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 90 ft-lbf @ 2,000 RPM
Spindle Taper: CT or BT 40, HSK-A63
Cutting Feedrate: 833 IPM
Rapid Feedrate (All Axes): 1,400 IPM
Thrust (All Axes): 3,085 lbf
Tool Changer: Side Mount
Tool Changer Capacity: 30+1
Tool Diameter (Full / Large, Adjacent Empty): 2.5" / 5"
Tool Length: 13"
Tool Weight: 12 lb
Machine Dimensions: 152” x 100” x 120”
Swarf Management System Dimensions: 50” x 36” x 60”

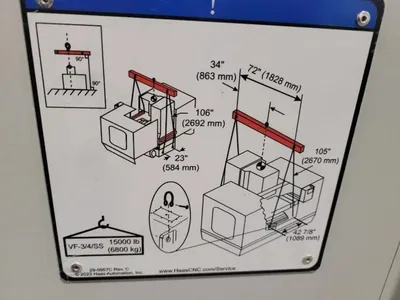

Machine Weight: 13,000 lbs
Power On Time: 4,134
Cycle Start Time: 934
Feed Cutting Time: 791

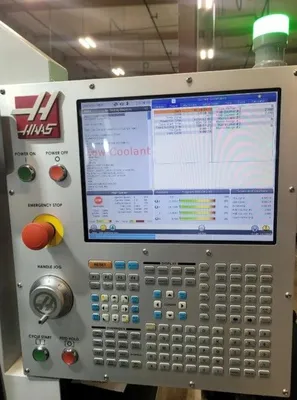

Haas CNC Control
4th-Axis Wired, Ready to Process

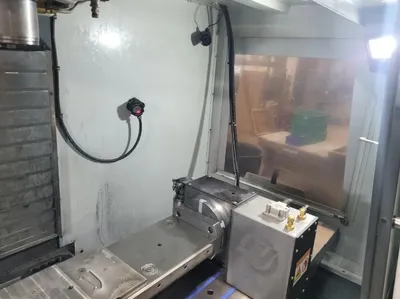

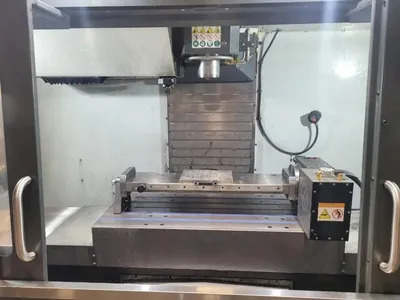

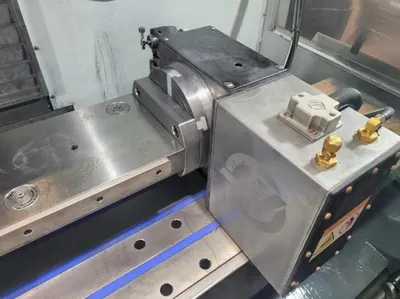

HRT210 Rotary Table
Rotary Brake Booster
Quick-Change Plate/Support for HRT210
WIPS, Renishaw, Wireless Probing

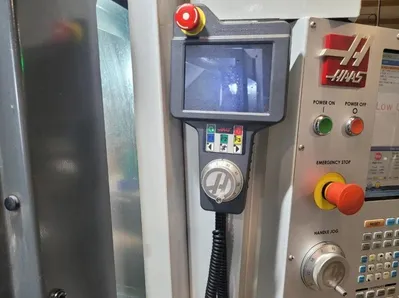

Remote Jog Handle/Pendant (RJH-TOUCH-XL)
Programmable Coolant Nozzle (P-COOL)
Through Tool Air Blast (TAB)
High Speed Machining (HSM)
Rigid Tapping
Coolant Tank
Variable Flow Coolant Pump
Chip Auger
USB Port

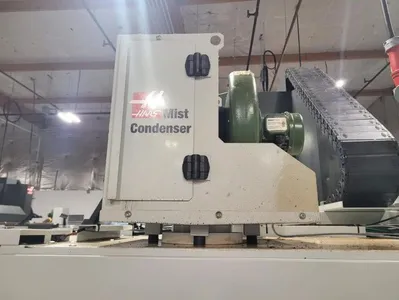

Mist Condenser
Through-Spindle Coolant Capable

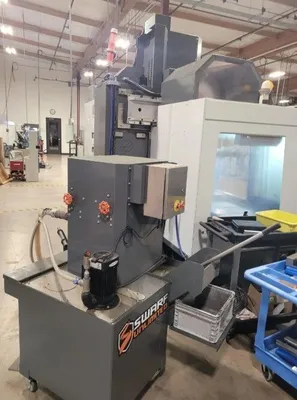

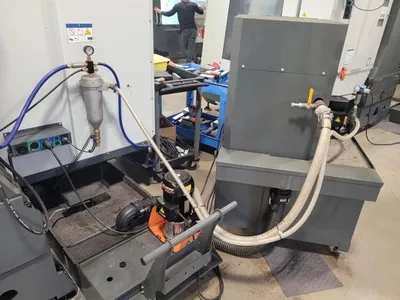

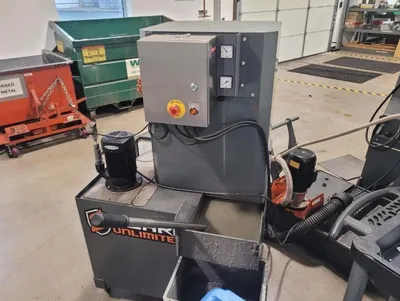

Swarf Unlimited Management System
Removable Sludge/Swarf Pots
Swarf Washdown System
Manuals/Documentation
Machine Under Power, Available for Inspection
