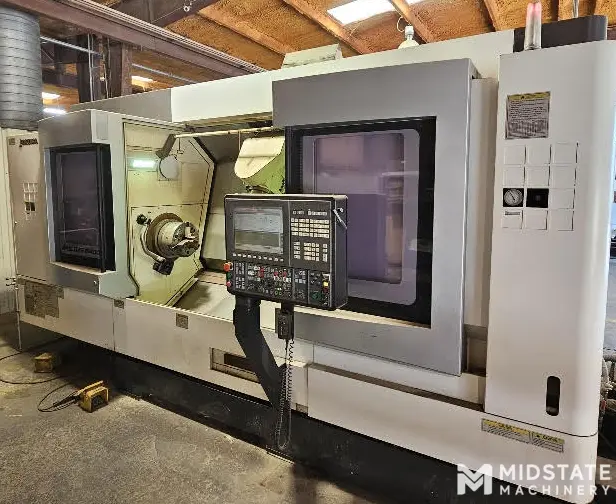

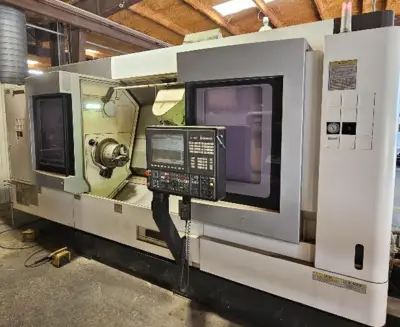

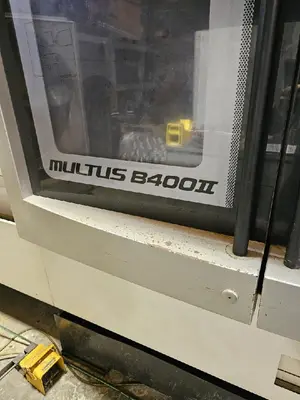

OKUMA MULTUS B400II-W 5-Axis CNC Lathe, New in 2012

Specifications and equipped with: Must be verified.

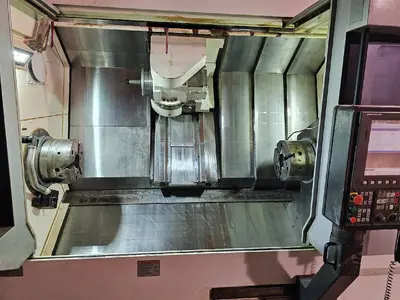

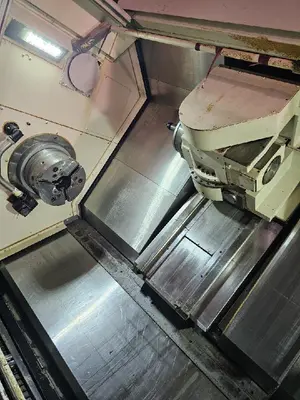

Comes with universal head, sub-spindle, live tooling, and Y-axis. .
Equipped with features such as Hi-Cut Pro, Admac 3D monitor, 80 station ATC.

Max Swing Over Saddle: 27.95"
Max Machining Diameter: 27.95"
Main Spindle Chuck Size: 12" Kitagawa B-12" 3-Jaw Power Chuck
sub spindle chuck size: 12" Kitagawa B-12, 12" 3-Jaw Power Chuck
Max Working Distance Between Spindles: 59.06"
X-Axis (Cross Travel): 27.17"
Z-Axis (Longitudinal Travel): 60.83"
Y-Axis Travel: 9.02"
B-Axis (Rotation of Universal Head): 225°
C-Axis (Indexing Positions of Main Spindle): .001°
Spindle Bore: 4.33"
Spindle Nose: A2-11
Spindle Horsepower: 40 HP-480 volt/ 3 phase motor.
SPINDLE SPEED RANGE: 38 - 3,800 RPM

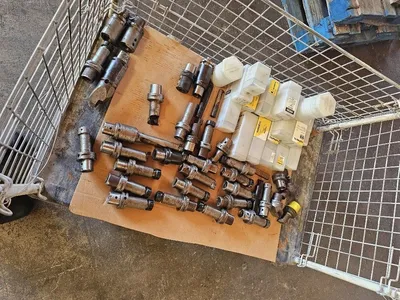

Capacity: 80 Station Capto C6 ATC
Live Tooling Horsepower: 14 HP
Live Tooling Speed Range: 90 - 6,000 RPM
B-axis range: 225°
0.001° with 6,000 rpm:
Main spindle and Sub-spindle: 12" Kitagawa B-15 12" 3-Jaw Power Chuck
5 components for shipping the Multus:
Dimensions Below: L x W x H:
Machine: 193”X9’X9’
Chip Conveyor: 200”X49 1/2”X6’

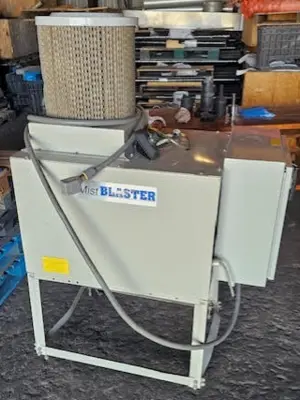

Chip Blaster: 25 ½”X 54”X 80”
Spindle Chiller: 40 ½”X14 ¼”X39”

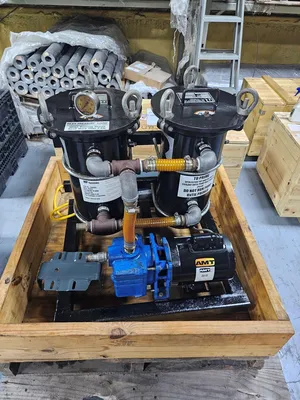

Oil Cooler: 17 ¾” X 17”X39”
Weight: 34,000lbs
