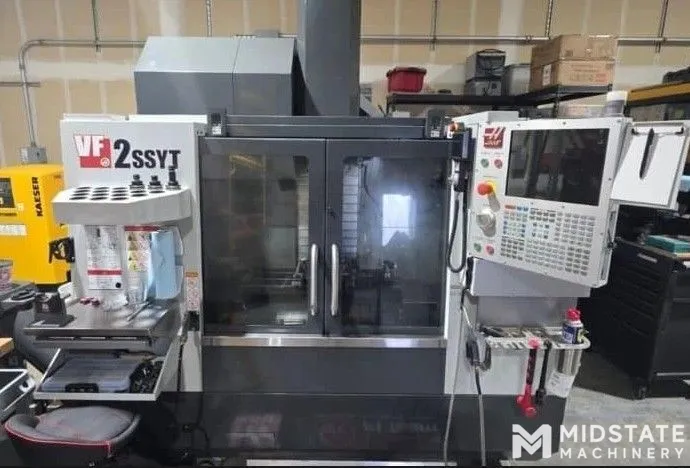

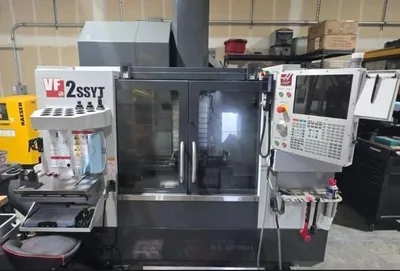

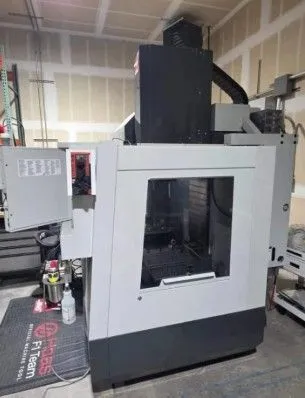

Haas VF-2SSYT Vertical Machining Center, New in 2024
Have one to sell?
ConditionUsed
1 available
Haas VF-2SSYT Vertical Machining Center, New in 2024
General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Table Size: 36" x 18"
Max. Table Weight: 1,500 lbs
Spindle Taper: 40 Taper
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Drive: Inline Direct-Drive
Max. Spindle Torque: 90 ft-lbf @ 2,000 RPM
Tool Changer Capacity: 30+1
Max. Cutting Feedrate: 833 IPM
Rapid Traverse Rate: 1,400 IPM
Coolant Capacity: 55 Gallons
Air Required: 4 SCFM @ 100 PSI
Electrical: 220 VAC, 3 Phase
Full Load Amps: 70 Amps
Machine Weight: 8,380 lbs

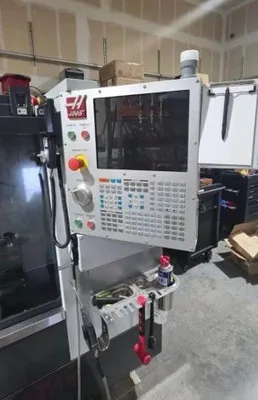

Haas CNC Control
Chip Auger
Wireless Intuitive Probing System (WIPS)
Coolant Through Spindle
Haas CNC Control

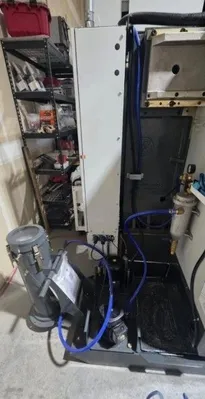

Coolant Tank
