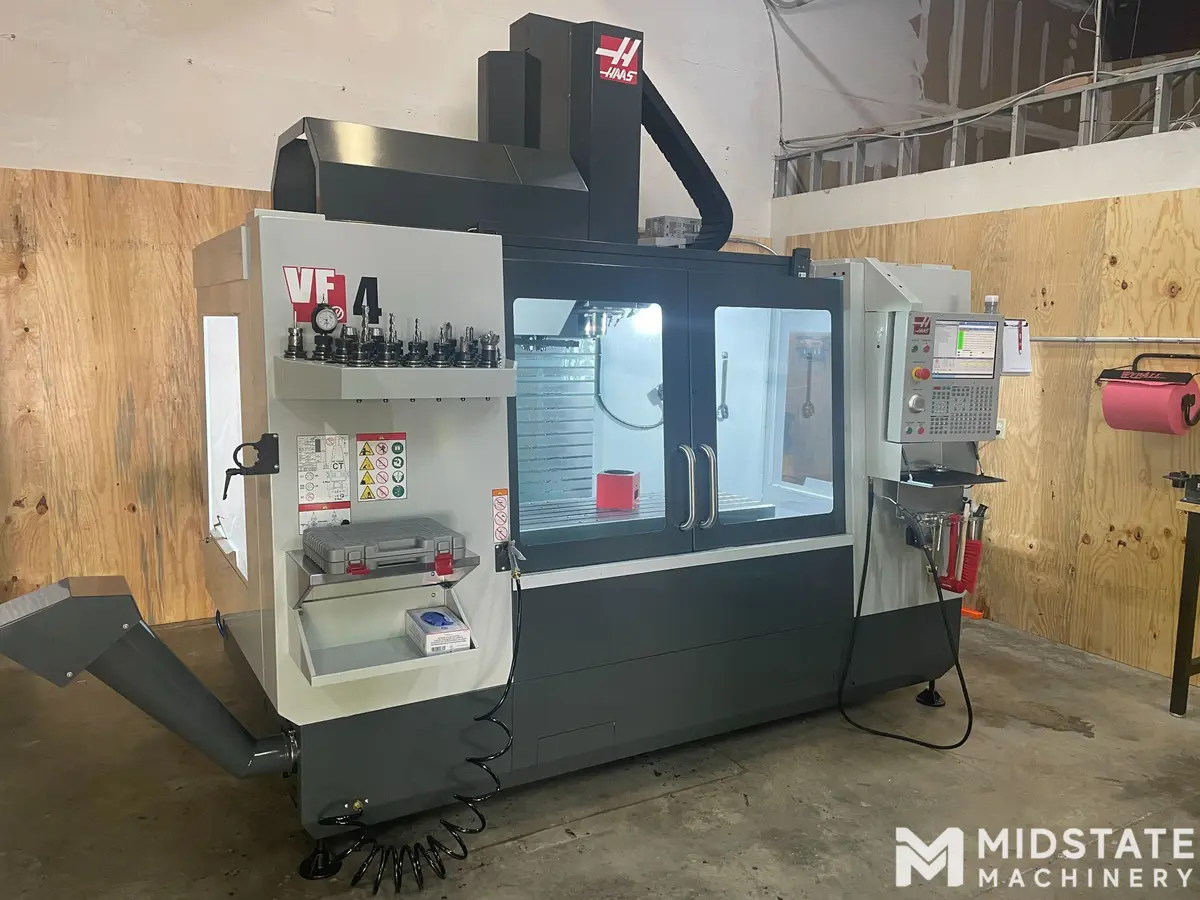

Haas VF-4 Vertical Machining Center, New in 2023
Have one to sell?
ConditionUsed
1 available
Haas VF-4 Vertical Machining Center, New in 2023
General Specifications:
Table size: 52" x 18"
Maximum Weight on Table: 3,500 lbs.
X-Axis Travel: 50"
Y-Axis Travel: 20"
Z-Axis Travel: 25"
Spindle Taper: CAT #40
Spindle Speeds: 8,100 RPM
Spindle Motor 30 Minutes/Continuous: 30 HP / 20 HP
Spindle Nose to Table Top: 4" - 29"
Number of Tool Positions: 30 Station ATC
Rapid Traverse Rates: 1000 IPM
Cutting Feedrates: 650 IPM
Machine Dimensions: 122" x 95" x 100"
Machine Weight: 13,300 lbs.
Haas CNC Control
4th Axis Drive
WIPS
Coordinate Rotation & Scaling
Visual Part Programming
Spindle Orientation
Macros
Through Spindle Coolant Ready
Programmable Coolant
Chip Auger
High Speed Machining
Mist Away Assembly w/ Auto On/Off
6" Kurt Vise
Mr. Deburr DB300 (w/ tank divider, V-104 timer, & plastic media kit)
***HRT210 NOT INCLUDED***
