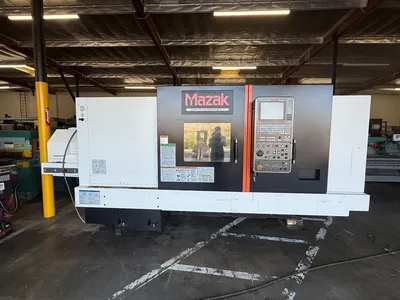

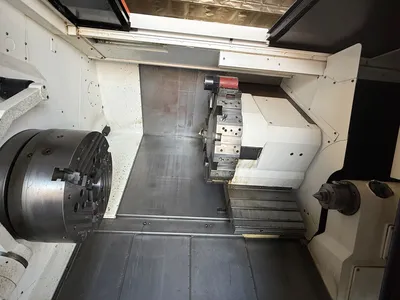

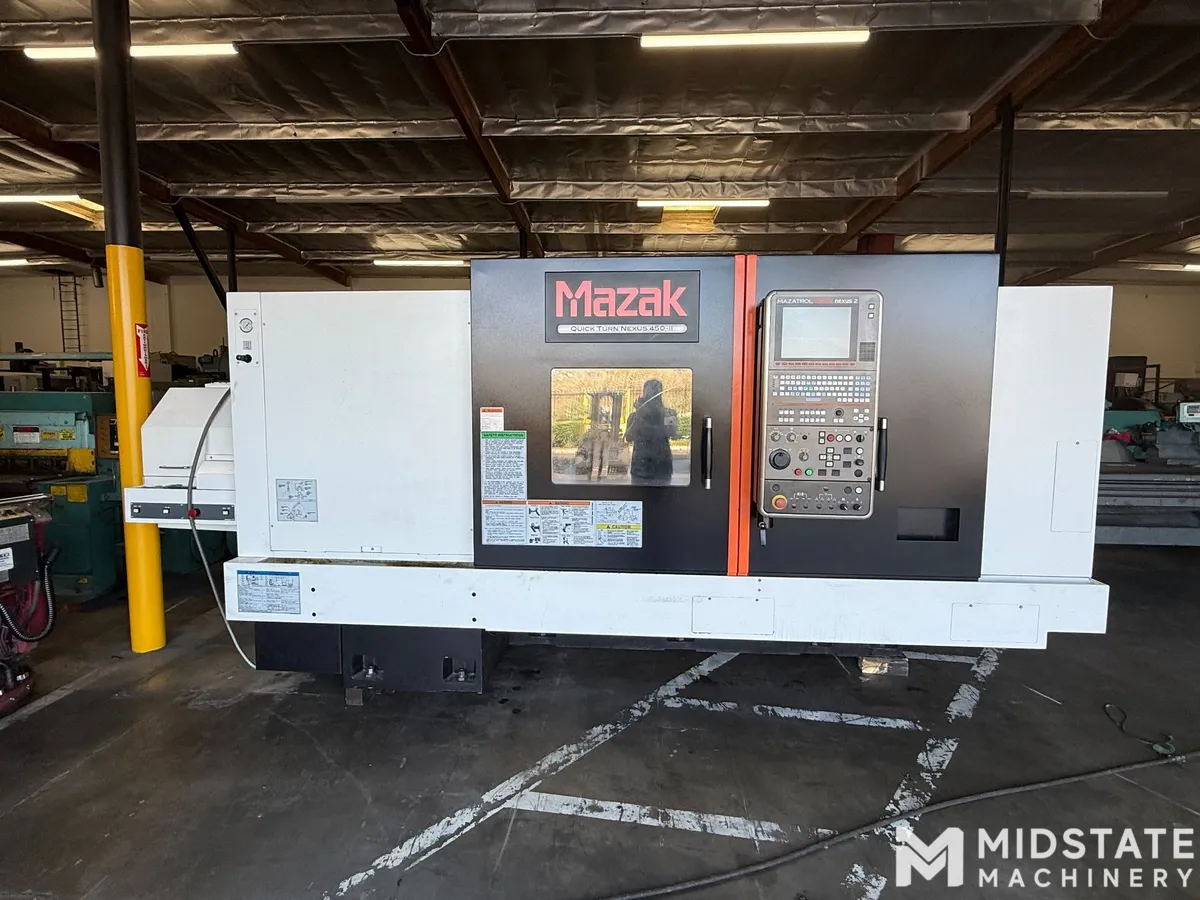

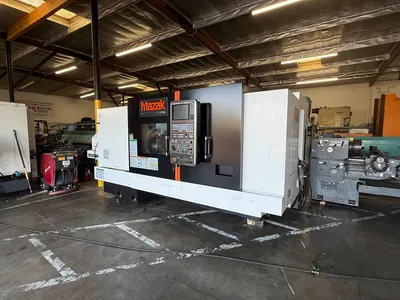

MAZAK Nexus Quick Turn 450-II CNC Lathe
Have one to sell?
ConditionUsed
1 available
MAZAK Nexus Quick Turn 450-II CNC Lathe
New: 2016
2016 Mazak Nexus Quick Turn 450-II CNC Lathe available. This used slant bed N/C CNC machine offers robust performance for precision machining. Ideal for enhancing production capabilities, it embodies Mazak’s reliable engineering.
2016 MAZAK Nexus Quick Turn Nexus 450-II CNC Lathe #8221
Specifications:
Chuck size: 18″
Bar capacity: 7.3″
Maximum turning diameter: 22.83″
Maximum turning length: 38.54″
Machine travels (x z): 12.2″ x 42.12″
Maximum spindle speed: 2,000 RPM
Spindle nose: A2-15
Spindle motor: 50HP
Turret configuration: 12 Tools Bidirectional
Machine dimensions: 159″ x 90″
Machine weight: 20,420 lbs
Electrical requirements: 220V/3Phz/60Hz/27kVA

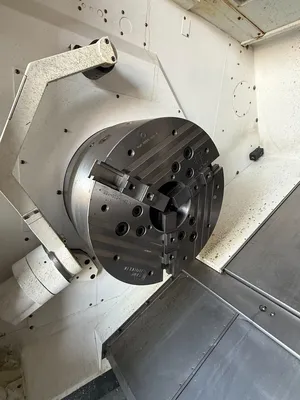

18″ 3-Jaw Hydraulic Thru-Hole Chuck

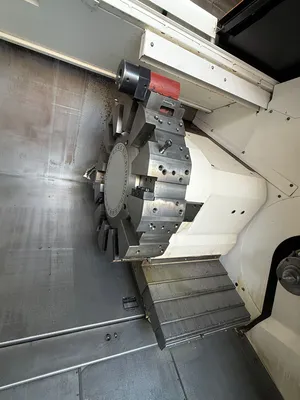

12D/24 Position Drum Turret

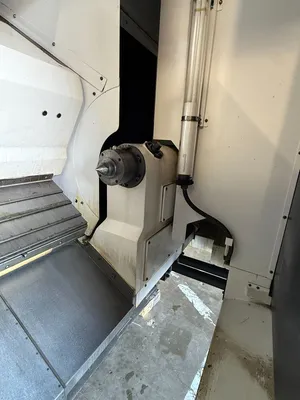

Programmable Tailstock
Tailstock Thrust Select (9-Level)
Large Spindle Bore
Tool Eye
High-Power Coolant (520W) (59 PSI, 16 GPM)
Work Light
Intelligent Safety Shield
Mazatrol Matrix II Nexus CNC Control
** Control Features
Windows XP Operating System
12.1″ Color LCD
USB I/F (2-PORT)
Lan Port
MT Connect Preparation
User Macros
EIA/ISO Input Function
Background Tool Path Check
Thread Cutting Function
Polar Coordinates Input (G122)
Velocity and Feedrate Control
Mazak Voice Adviser
Virtual Machining
OPTIONAL EQUIPMENT INCLUDED:
Re-Threading
Thread Start Point Compensation

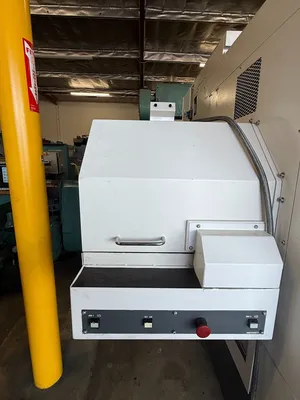

Jorgensen Chip Conveyor – Side 1000U
