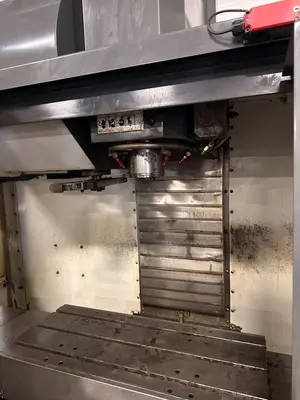

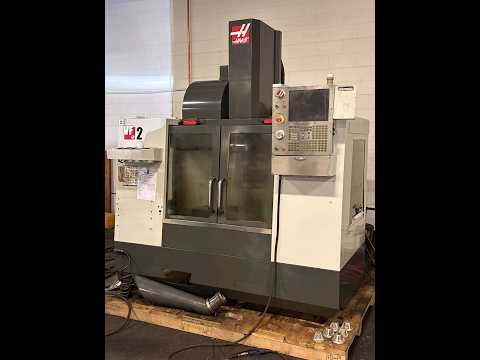

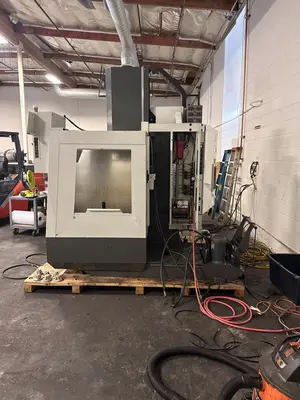

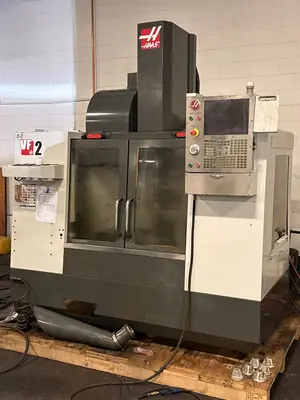

Haas VF-2 Vertical Machining Center, New in 2014
Have one to sell?
ConditionUsed
1 available
Haas VF-2 Vertical Machining Center, New in 2014
General Specifications:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Max Table Load: 3000 lbs
Spindle Speed: 8,100 RPM
Spindle Motor: 20 HP
Spindle Taper: CAT40
Rapids (X, Y, Z): 1400 IPM
Max Cutting Feed Rate: 833 IPM
Tool Capacity: 24
Machine Weight: 8,000 lbs
Machine Dimensions: 101" X 99" X 101"
Haas CNC Control
Programmable Coolant
Through Spindle Coolant
Side Mount Tool Changer
Internal High Volt Transformer
Chip Auger
Haas VF-2 Vertical Machining Center, New in 2014
Imperial
| X-Axis | 30" |
| Y-Axis | 16" |
| Z-Axis | 20" |
| Power | 20 hp |
| RPM | 8,100 RPM |
| # ATC | 24 |
| Taper | CT or BT 40 |
| Table-W | 14" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (Haas) |
| Dimensions | 101" X 99" X 101" |
| Weight | 8,000 lbs |
General Specifications:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Max Table Load: 3000 lbs
Spindle Speed: 8,100 RPM
Spindle Motor: 20 HP
Spindle Taper: CAT40
Rapids (X, Y, Z): 1400 IPM
Max Cutting Feed Rate: 833 IPM
Tool Capacity: 24
Machine Weight: 8,000 lbs
Machine Dimensions: 101" X 99" X 101"
Haas CNC Control
Programmable Coolant
Through Spindle Coolant
Side Mount Tool Changer
Internal High Volt Transformer
Chip Auger
