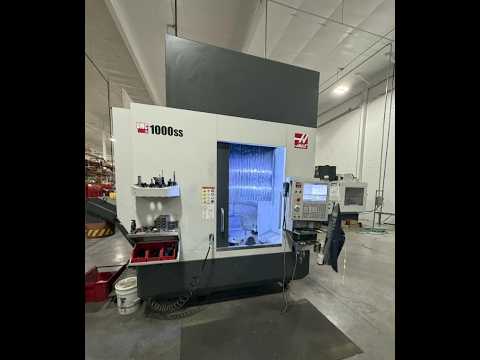

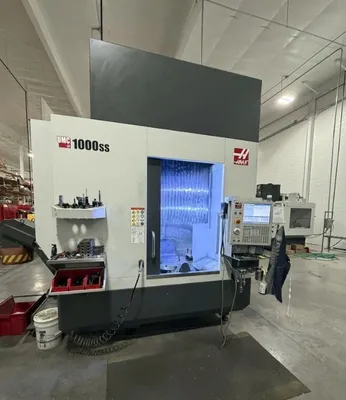

Haas UMC-1000SS Universal Machining Center, New in 2020
Have one to sell?
ConditionUsed
1 available
Haas UMC-1000SS Universal Machining Center, New in 2020
General Specifications:
X-Axis Travel: 40"
Y-Axis Travel: 25"
Z-Axis Travel: 25"
Spindle Nose to Platter (min/max): 4" / 29"
Max Rating: 30 hp

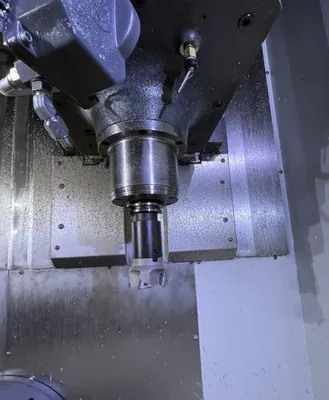

Max Speed: 12000 rpm
Max Torque: 90 ft-lbf @ 2000 rpm
Taper: CT40

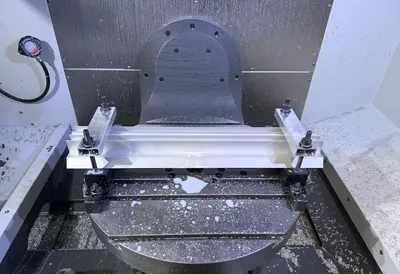

B-Axis Tilt: 120 ° to 35- °
Max Tilt Speed: 170 °/sec
Torque (Continuous): 2240 ft-lbf
Brake Torque: 2000 ft-lbf
C axis rotation: 360 °
C Axis - Max Tilt Speed: 179 °/sec
C Axis - Torque (Continuous): 1854 ft-lbf
C axis - Brake Torque: 900 ft-lbf
Max Part Swing: 34"
Max Cutting Feedrate: 833 IPM
Rapids X/Y/Z: 1200 IPM
Max Thrust X/Y: 3300 lbf
Max Thrust Z: 4050 lbf

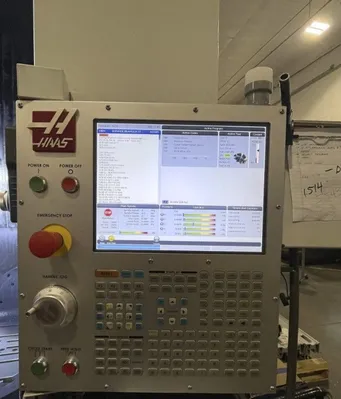

Haas CNC Control

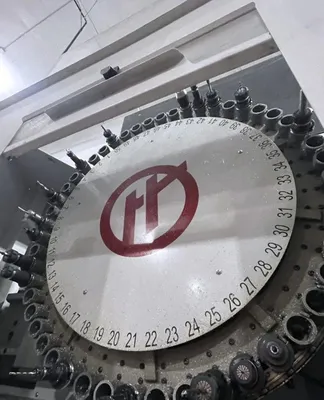

High-Speed 50+1 Side-Mount Tool Changer

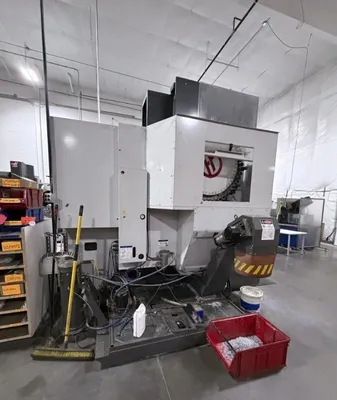

Belt-Type Chip Conveyor
95-Gallon Coolant Tank
Auxiliary Coolant Filter
Through Spindle Coolant
Programmable Coolant Nozzle

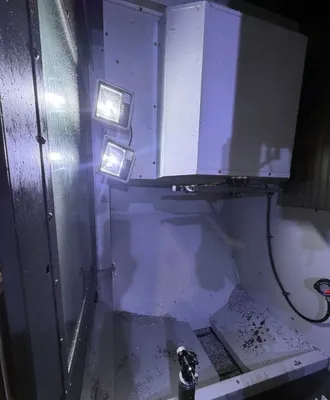

High Intensity Lighting

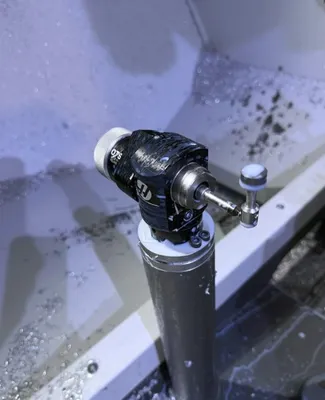

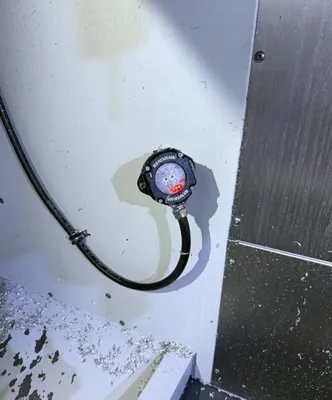

Wireless Intuitive Probing System (WIPS)
CNC Control Cabinet Cooler
Power Surge Protection
Early Power-Failure Detection Module
Second Home Position
ECO Mode
Advanced Tool Management
Media Display M-Code; M130
HaasConnect: Remote monitoring
Safe Run
HaasDrop
Standard High-Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Rigid Tapping
1GB Program Memory
Haas UMC-1000SS Universal Machining Center, New in 2020
Imperial
| X axis | 40" |
| Y axis | 25" |
| Z axis | 25" |
| # Axis | 5 |
| Power | 30 hp |
| RPM | 12,000 RPM |
| # ATC | 31 |
| Taper | 40 |
| Table-W | 25" |
| Table-L | 25" |
| Control | CNC (Haas) |
| Dimensions | 168" x 92.5" x 115" |
| Weight | 17,000 lbs |
General Specifications:
X-Axis Travel: 40"
Y-Axis Travel: 25"
Z-Axis Travel: 25"
Spindle Nose to Platter (min/max): 4" / 29"
Max Rating: 30 hp
Max Speed: 12000 rpm
Max Torque: 90 ft-lbf @ 2000 rpm
Taper: CT40
B-Axis Tilt: 120 ° to 35- °
Max Tilt Speed: 170 °/sec
Torque (Continuous): 2240 ft-lbf
Brake Torque: 2000 ft-lbf
C axis rotation: 360 °
C Axis - Max Tilt Speed: 179 °/sec
C Axis - Torque (Continuous): 1854 ft-lbf
C axis - Brake Torque: 900 ft-lbf
Max Part Swing: 34"
Max Cutting Feedrate: 833 IPM
Rapids X/Y/Z: 1200 IPM
Max Thrust X/Y: 3300 lbf
Max Thrust Z: 4050 lbf
Haas CNC Control
High-Speed 50+1 Side-Mount Tool Changer
Belt-Type Chip Conveyor
95-Gallon Coolant Tank
Auxiliary Coolant Filter
Through Spindle Coolant
Programmable Coolant Nozzle
High Intensity Lighting
Wireless Intuitive Probing System (WIPS)
CNC Control Cabinet Cooler
Power Surge Protection
Early Power-Failure Detection Module
Second Home Position
ECO Mode
Advanced Tool Management
Media Display M-Code; M130
HaasConnect: Remote monitoring
Safe Run
HaasDrop
Standard High-Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Rigid Tapping
1GB Program Memory
