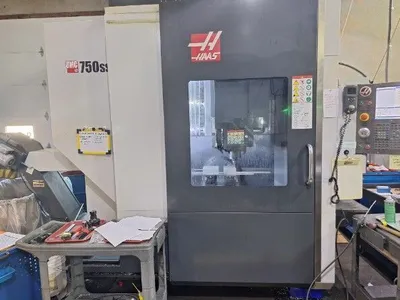

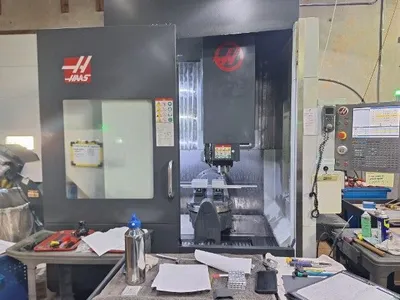

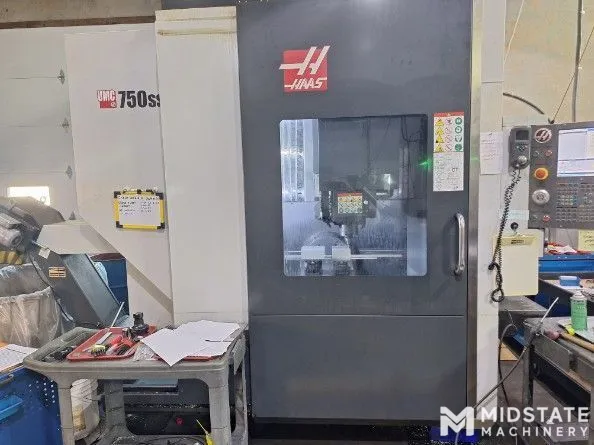

Haas UMC-750SS UMC 5-Axis Machining Center, New 2018

General Specifications:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle to Nose Platter: 24"
Spindle Speed: 15,000 RPM
Spindle Motor: 30 HP
Torque: 90 ft-lbf @ 2000 RPM
Taper: CT40 / BT 40 / HSK-A63

B-Axis Tilt
Travel: -35 - 100
Speed: 50 Degree/Second
Torque (Continuous): 2240 ft-lbf

C-Axis Rotation
Travel: 360 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 1854 ft-lbf
Part Swing: 27"

Platter
Platter Diameter: 19.7"
Weight on Platter: 660 lbs
Weight on Platter w/ Pallet Pool: 200 lbs
T-Slot Center Distance: 2.48"

Feedrates
X/Y/Z - Axis: 1200 IPM

Tool Changer
Capacity: 40
Tool Diameter: 5" / 3"
Tool Diameter: 5"
Tool Length: 12"
Tool Weight: 12 lbs

Machine Dimensions: 168" x 92.5" x 110"
Machine Weight: 14,250 lbs
