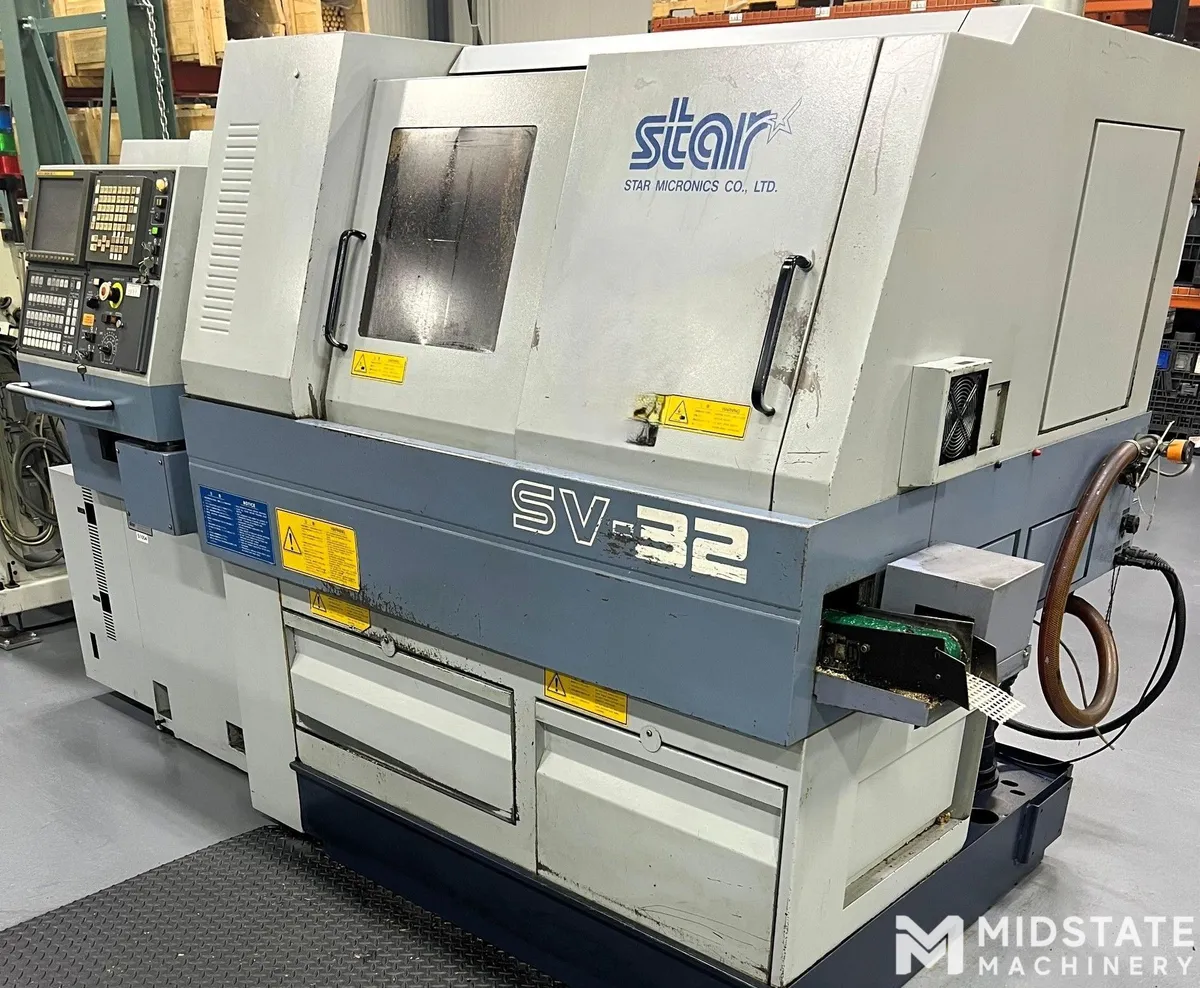

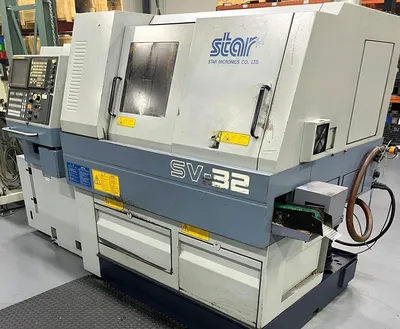

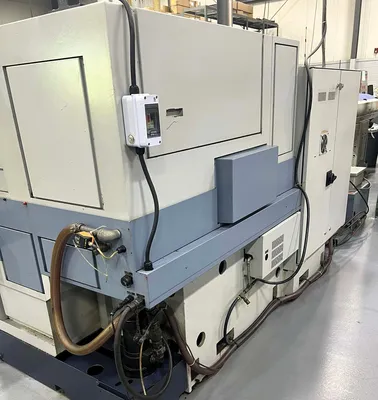

STAR SV-32 CNC Swiss Lathe, New in 2000
Have one to sell?
ConditionUsed
1 available
STAR SV-32 CNC Swiss Lathe, New in 2000.
Fanuc 16i-T Control.
Iemca Boss 432 12' Barfeed.
High Pressure Coolant.
Mist Collector.
Y-Axis Turret.
General Specifications:
- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 280 - 7.000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,01 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Z stroke : 150 [mm]
- Spindle speeds : 280 - 7.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,01 [°]
- Number of turrets : 1
UPPER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 5.700 [rpm]
- Live tools power : 2,8 [kW]
GUIDE BUSH HOLDER 1
- Number of positions : 4
- Number of motorized positions : 3
- Live tools speed : 6.000 [rpm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.645 x 1.403 [mm]
- Machine height : 1.680 [mm]
- Machine weight : 3.880 [kg]

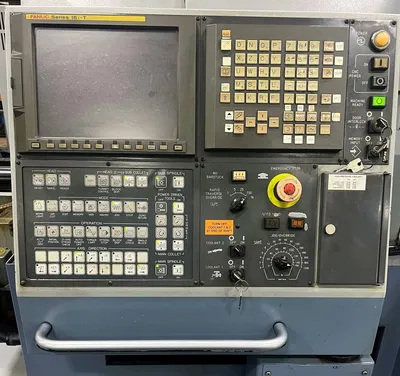

Fanuc 16iT Control

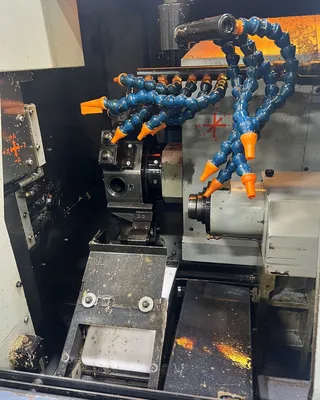

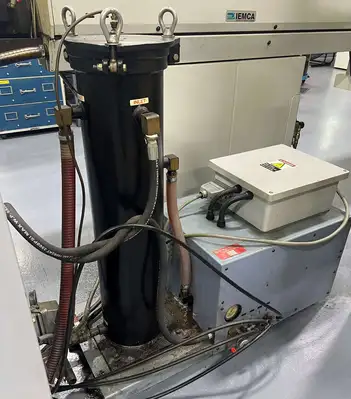

New England Tool High Pressure Coolant System – 2000 PSI / 4 Line

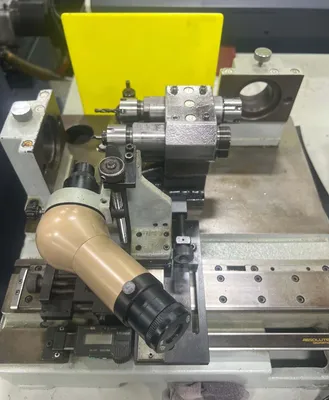

Tool Presetter

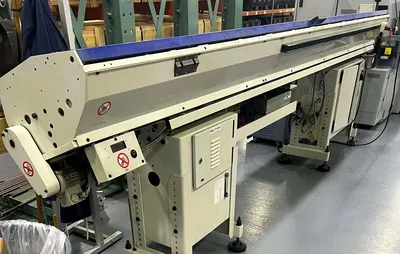

Iemca Boss 432 Magazine Bar Loader (12’ bars) w/35mm channel set

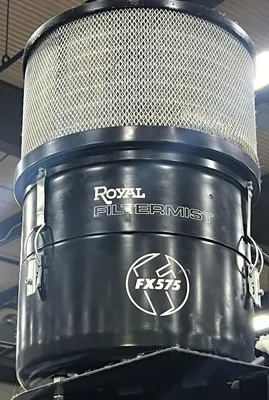

Royal Filter Mist collector
Part Conveyor

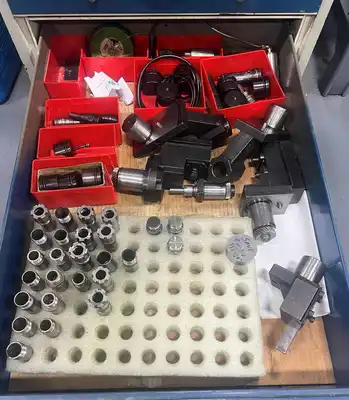

Tooling list (Includes tooling in the machine and out of machine):
Power-Driven Tooling -
(4) ER16 milling units
(3) ER11 counter face drilling units
(3) ER16 two-spindle cross drilling units
(1) High speed ER11 two-spindle cross drilling unit
(1) Adjustable skewed hole drilling unit (ER11)
(1) Two-spindle cut-off end drilling unit
Tool Holding Static Blocks -
(1) Two-station tool holder block
(1) Two-station inverse tool holder block
(2) Triple sleeve holder blocks (large diameter)
(2) Single sleeve holder blocks (deep drilling)
Additional Tooling Inventory (Approximate Quantities) -

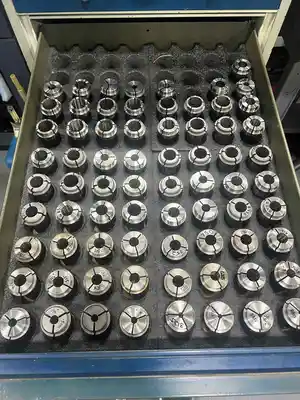

70 Main collets
70 Guide bushings
80 Sub collets
20 ER sleeves
All available manuals, tool kit, keys.
*Very Good Condition* *Limited Use* *Ran Oil*
