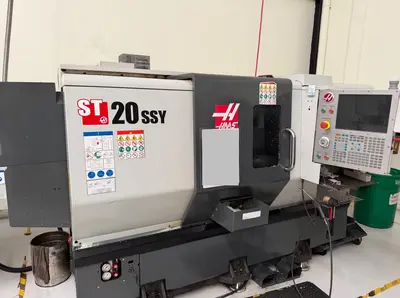

Haas ST-20SS CNC Turning Center, New in 2017
General Specifications:
Bar Capacity: 2"
Chuck Size: 8.3"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM

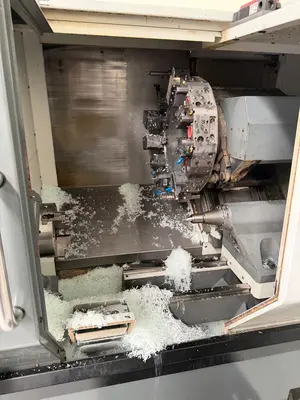

Turret Tools: 24 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 20.5"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Drive System Direct Speed
Max Torque 150 ft-lb
Coolant Capacity 55 gal
Machine Dimensions: 143" x 90" x 87"
Machine Weight: 8,820 LBS
Haas CNC Control
Belt-Type Chip Conveyor
Automatic Tool Measurement Arm
Early Power Failure Detection Module
Programmable Hydraulic Tailstock
VDI40 Inch Toolholder Kit

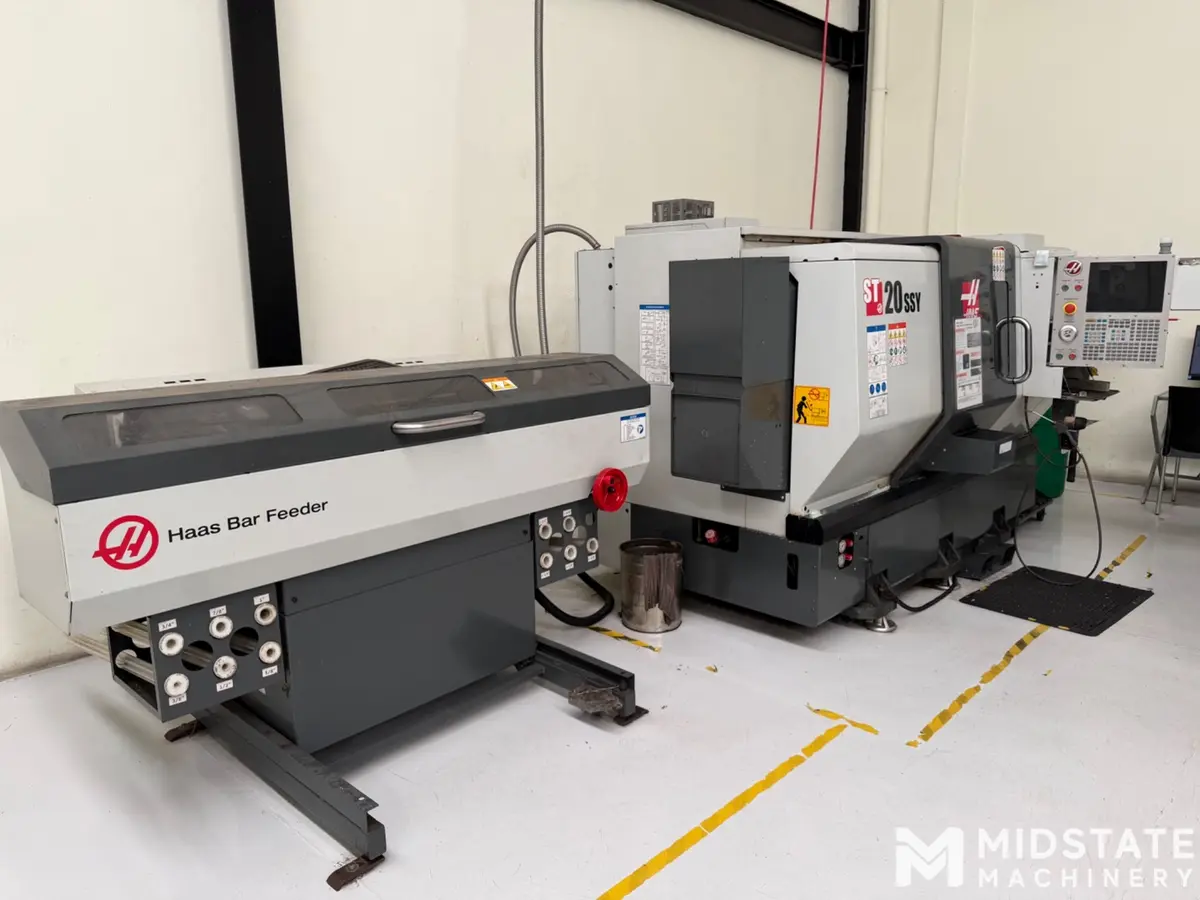

Haas Bar Feeder
Parts Catcher
