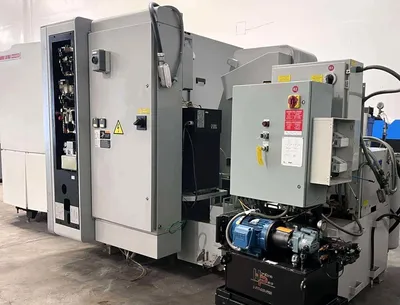

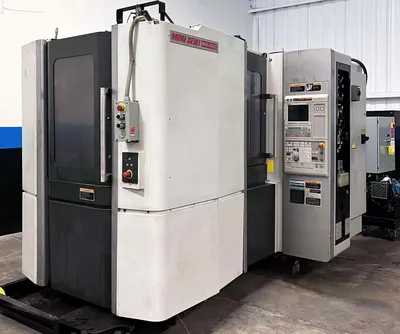

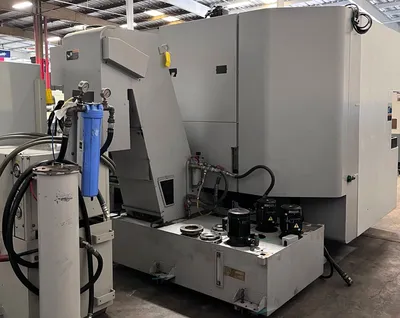

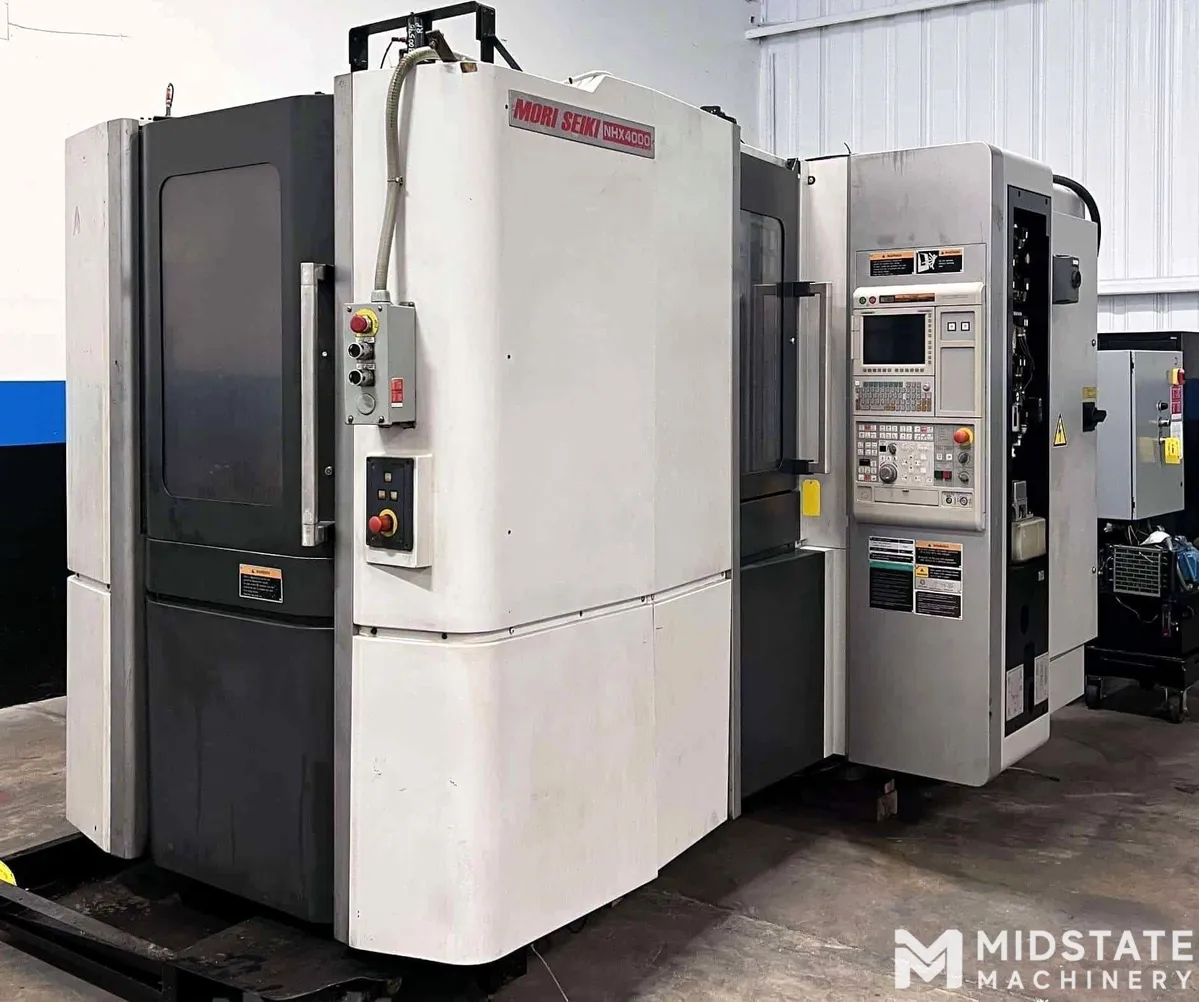

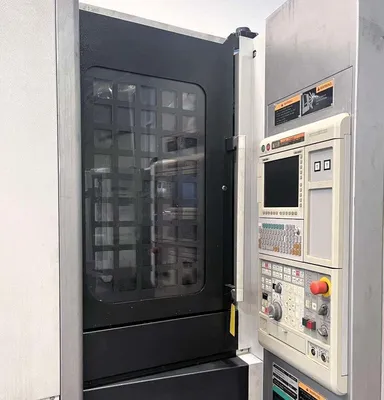

MORI SEIKI NHX4000 CNC Horizontal Machining Center, New in 2011

General Specifications:
X 22"
Y 22"
Z 26"
Power 40 hp
RPM 12,000 RPM
# ATC 40
Taper CAT-40
Pallet-W 15.7"
Pallet-L 15.7"
# Axis 4
Control CNC (Mori Seiki MSX-853IV CNC Control)
Dimensions 165″ X 105″ x 100″ High
Weight 16,755 lbs

Features:

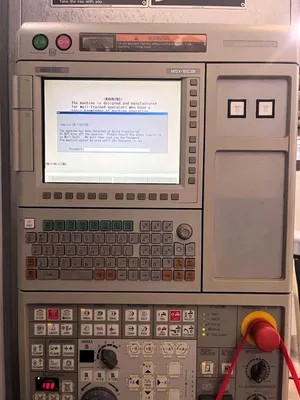

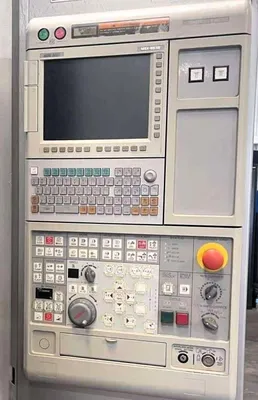

Mori Seiki MSX-853IV CNC Control
12,000 RPM High Precision Spindle
USB Ports
50 MB Memory
Pallet Seat Detection
Spindle Orientation
Rigid Tapping
Custom Macros
Fast Rapid Traverse Rate
Travels:
X Axis: 22.0″
Y Axis: 22.0″
Z Axis: 26.0″
B Axis: 0.001° ( Full 4th )

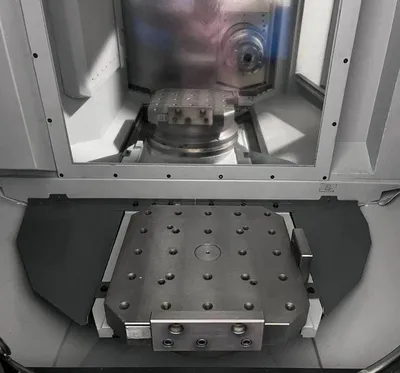

Table:
Length: 15.7″
Width: 15.7″
Max Weight on Table: 882 lbs
Max Workpiece Height: 35.4″
Index Time: 8 seconds

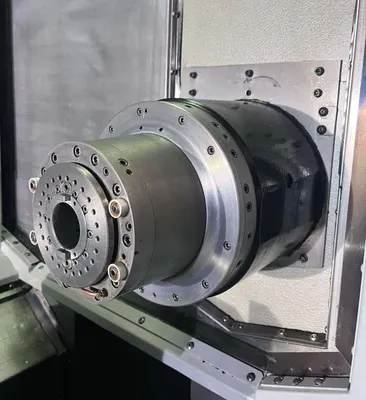

Spindle:
Taper Size: CAT-40
Max. Speed: 12,000 RPM
Power: 40 HP
Torque: 76.7 ft/lbs
Feed Rates:
Rapid X & Y : 2352 Inch Per Minute
Rapid Z : 2352 Inch Per Minute
Cutting Feedrate : 984 Inch Per Minute

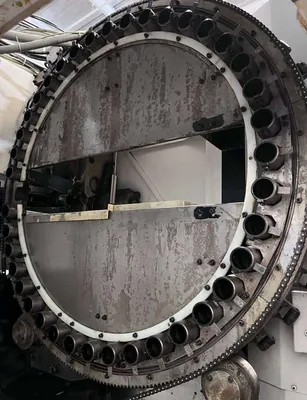

Tool Changer:
Capacity: 40 Tools
Taper: CAT-40
Max Tool Size: 6.6″
Max Tool Length: 17.7″
Max Tool Weight: 18 lbs.
Tool Change Time: 0.9 Second
General:
Air Required: 90 psi, 4 scfm

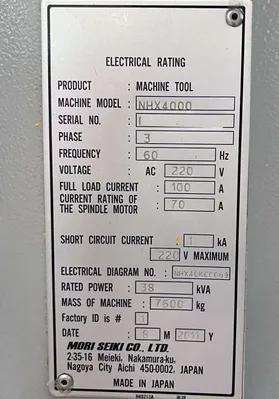

Power: 38 kva / 205-220v / 3-Phase
