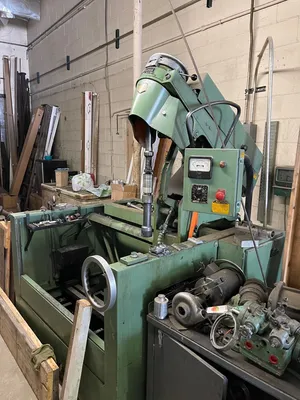

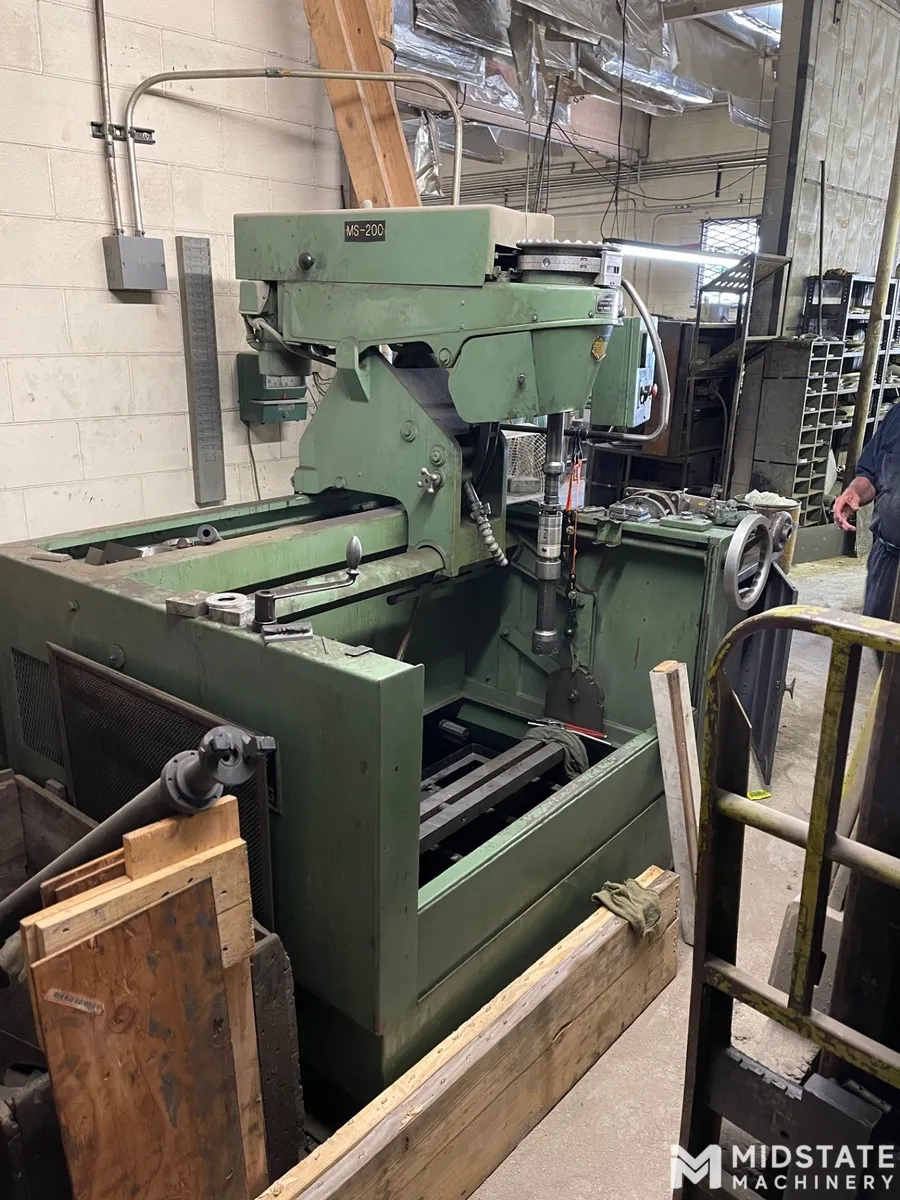

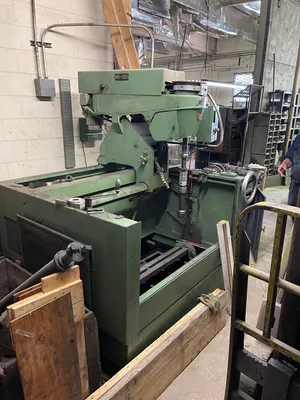

Sunnen CV-616E Cylinder King Honing Machine
Have one to sell?
ConditionUsed
1 available
Diameter Range............................3/4" – 8"
Length Range Depending on Diameter........Up to 18"
Spindle Speeds (4 speeds).................125, 170, 230, 310 RPM
Stroking Rate.............................41, 57, 80 SPM
Stroking Length...........................0 – 9"
Main Spindle Motor........................2 HP
Honing Oil Pump Motor.....................1/2 HP
Oil Cooler Motor..........................1/2 HP
Electrics.................................230/460V/3Ph/60Hz (currently configured for 460V)
Imperial
| Mandrel Dia. (min) | 0.75" |
| Mandrel Dia. (max) | 8" |
| Stroke (min) | 9" |
| Horz/Vert | Vert |
| Dimensions | 67" L x 70" W x 75" H |
| Weight | 2,400 Lbs |
Diameter Range............................3/4" – 8"
Length Range Depending on Diameter........Up to 18"
Spindle Speeds (4 speeds).................125, 170, 230, 310 RPM
Stroking Rate.............................41, 57, 80 SPM
Stroking Length...........................0 – 9"
Main Spindle Motor........................2 HP
Honing Oil Pump Motor.....................1/2 HP
Oil Cooler Motor..........................1/2 HP
Electrics.................................230/460V/3Ph/60Hz (currently configured for 460V)
