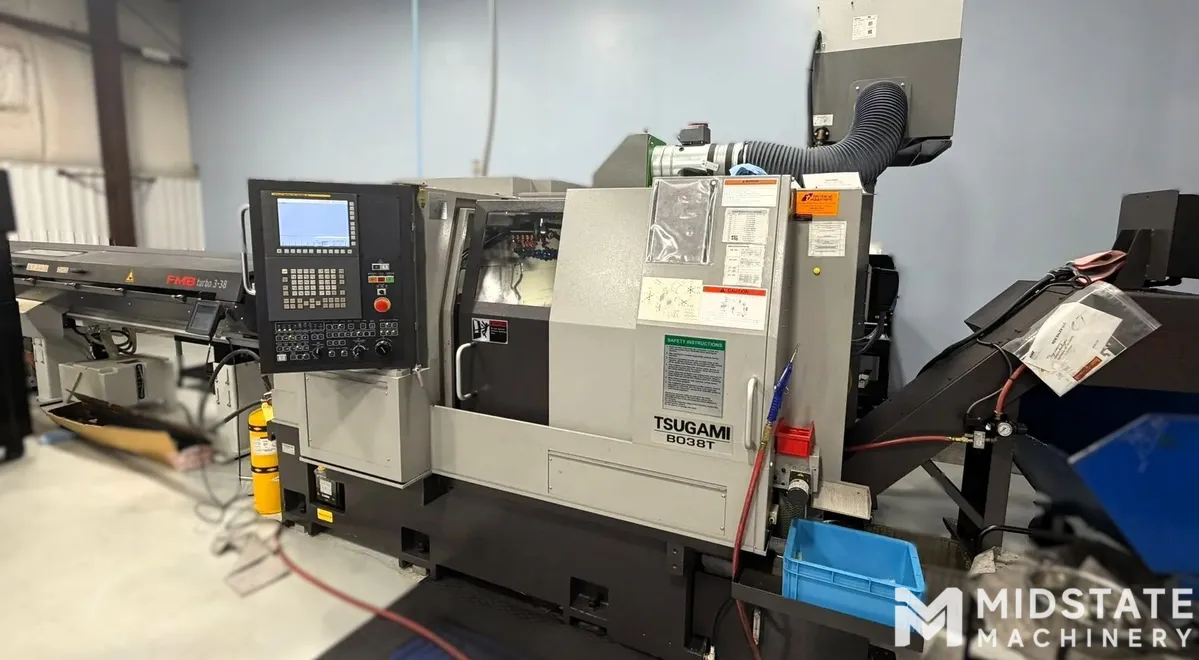

TSUGAMI BO-38T 9-Axis CNC Lathe, New in 2022
Have one to sell?
ConditionUsed
1 available
TSUGAMI BO-38T 9-Axis CNC Lathe, New in 2022.
FMB Turbo 3-38 Bar Feed.
**Only 500 Cutting Hours**
General Specifications:
Maximum Bar Stock 38 mm / 1.5″
# Axes 9
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) NO
Max Headstock Stroke w/ Guide Bushing 250 mm / 9.84”
# Tool Positions (std / max) 45 max
# Live Tool Positions (std / max) 8 Rotary Tools (Turret) 2 (Gang Slide)
Main Spindle Speed 200 – 5,000 rpm
Sub Spindle Speed 200 – 7,000 rpm
Live Tool Speed 200 – 8,000 rpm
Main Spindle Motor 7.5 / 11 kW
Weight 6,200 kg / 13,669 lbs.
Footprint: W x D x H 3,247 × 1,875× 1,840 mm
134.9″ x 73.8″ x 72.4″
Control FANUC 31i-B
FMB Turbo 3-38 Bar Feeder
MP Systems AT V-2 H08 SD High Pressure 2,000 PSI
Exomist HPM1000 Mist Collector
(5) Double Drilling Head Live Tools for the Turret
Various Static Tool Holders for Turret
LNS Turbo Micro Hinge Chip Conveyor
Program Storage Upgrade, 64k to 2Mb p/n J948
(3) Linear Scale - One Axis, high precision, high accuracy linear scale with 0.1 um resolution ensuring superior thermal stability
Air Oil Check Valve
Additional Air Blast for Ejection Rod
Air Blast by M-Code
*Excellent like new condition with 500 cutting hours
