HYUNDAI WIA KIT450 CNC Turning Center, New in 2017
Have one to sell?
ConditionUsed
1 available

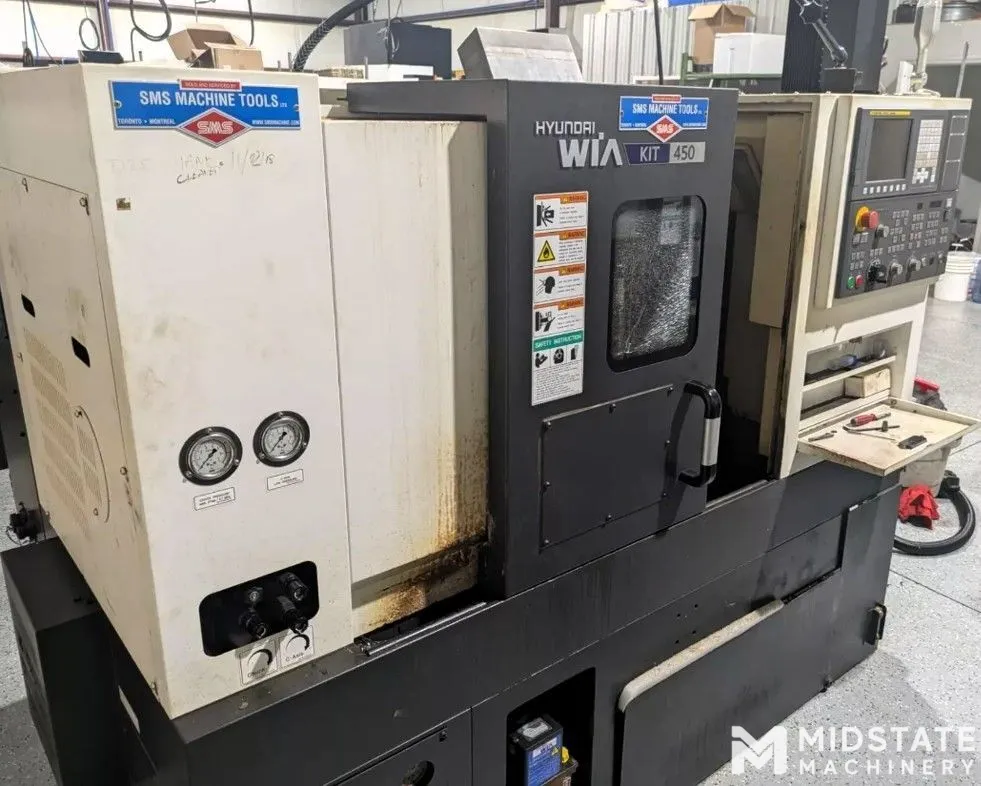

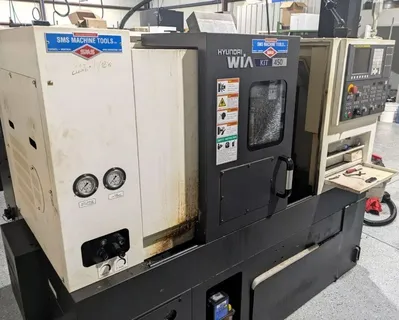

HYUNDAI WIA KIT450 CNC Turning Center, New in 2017.
General Specifications:
Swing over bed: 20.9″
Maximum turning diameter: 12.8″
Maximum turning length: 12.8″
Bar capacity: 1.8″
Chuck size: 6.5″
Spindle bore: 2.05″
Spindle speed: 50–6,000 RPM
Spindle motor power (Max/Continuous): 20/15 HP
Torque (Max/Continuous): 70 / 51 FT-LB
Spindly type: Belt-driven
Spindle nose: A2-5
Travel (X/Z): 450/300 mm(17.7″/11.8″)
Rapid traverse rate (X/Z): 1,181 / 1,417 in/min
Slide type: LM guide
Number of tools: 6
Tool size (OD/ID): 1″ / 1.25″
Electric power supply: 20 KVA
Voltage/frequency: 220V / 60hz
Machine dimensions: (82.7″ × 56.5″ x 72″)
Weight: (5,952 LBS)

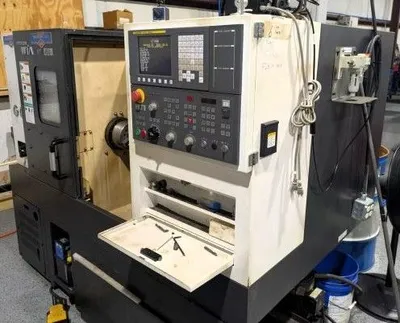

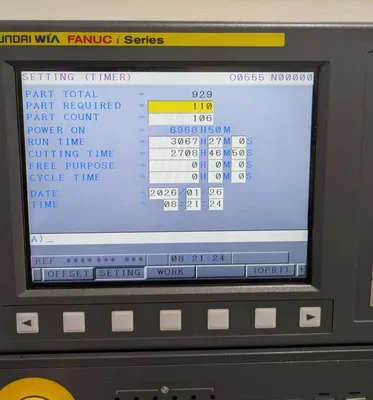

Fanuc i-Series Control
HYUNDAI WIA KIT450 CNC Turning Center, New in 2017.
Imperial
| Swing | 20.866" |
| Machining Length | 12.795" |
| Chuck Size | 6.5" |
| Bar Capacity | 1.8" |
| Power | 14.8 hp |
| Max RPM | 6,000 RPM |
| Turning Dia | 12.8" |
| Control | CNC (Fanuc i-Series) |
| Dimensions | 82.7″ × 56.5″ x 72″ |
| Weight | 5,952 lbs |
General Specifications:
Swing over bed: 20.9″
Maximum turning diameter: 12.8″
Maximum turning length: 12.8″
Bar capacity: 1.8″
Chuck size: 6.5″
Spindle bore: 2.05″
Spindle speed: 50–6,000 RPM
Spindle motor power (Max/Continuous): 20/15 HP
Torque (Max/Continuous): 70 / 51 FT-LB
Spindly type: Belt-driven
Spindle nose: A2-5
Travel (X/Z): 450/300 mm(17.7″/11.8″)
Rapid traverse rate (X/Z): 1,181 / 1,417 in/min
Slide type: LM guide
Number of tools: 6
Tool size (OD/ID): 1″ / 1.25″
Electric power supply: 20 KVA
Voltage/frequency: 220V / 60hz
Machine dimensions: (82.7″ × 56.5″ x 72″)
Weight: (5,952 LBS)
Fanuc i-Series Control
