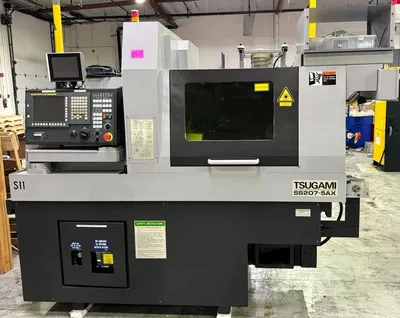

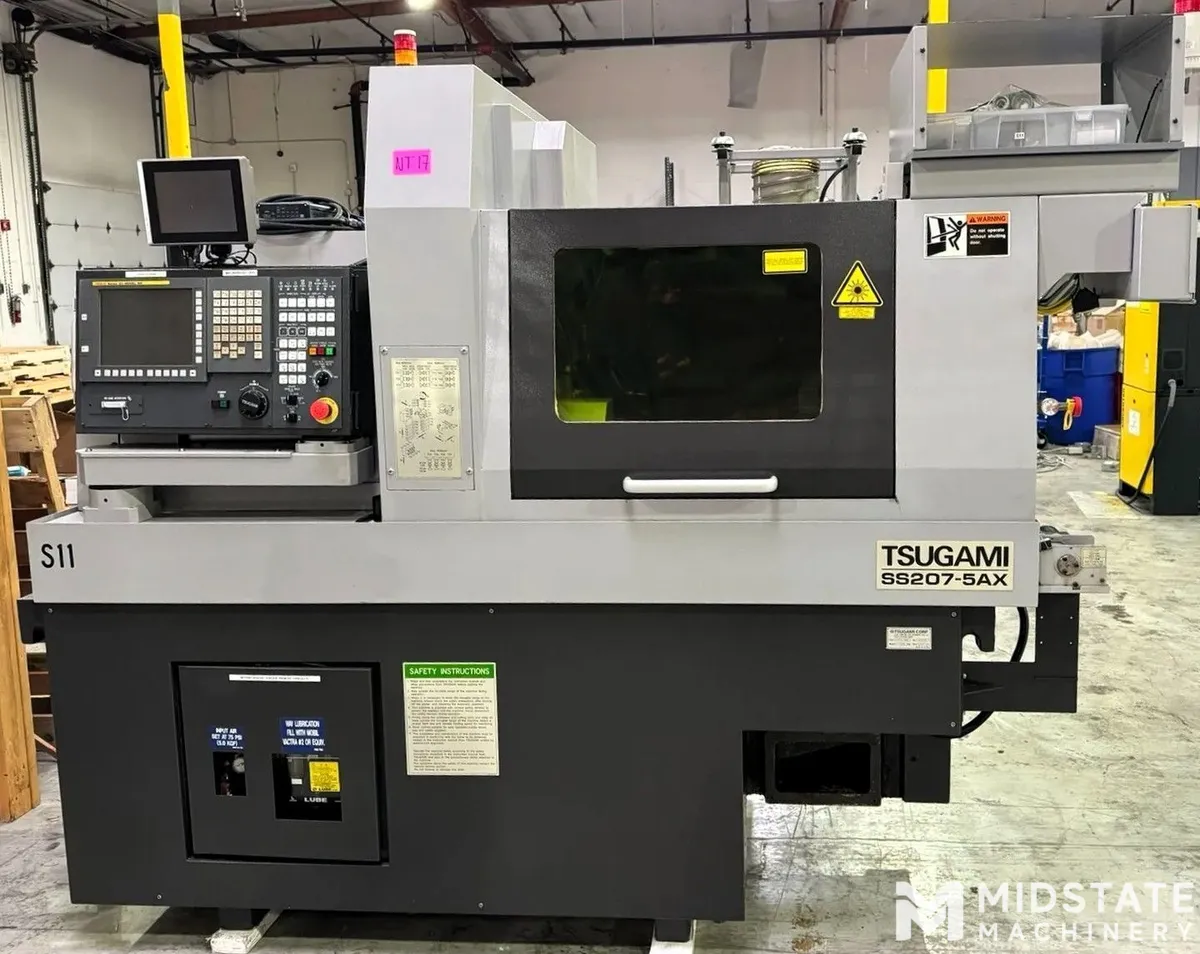

TSUGAMI SS207-5AX CNC Swiss Lathe w/ IMG 250L Laser, New in 2017
Have one to sell?
ConditionUsed
1 available
TSUGAMI SS207-5AX CNC Swiss Lathe w/ IMG 250L Laser, New in 2017.
Standard Specification SS207-5AX:
Maximum Machining Dia. .787 (20mm)
Maximum Machining Length 8.26" (210 mm) / Chucking
Main Spindle Speed 200~10,000
Rotary Tool Spindle Speed 200~8,000
Back Spindle Max. Dia. .787 (20 mm)
Back Spindle Front Ejection maximum length 3.2" (80mm)
Back Spindle Speed 200~10,000
Rapid Traverse Rate 32 M/min
Input Power 6KVA
Center Height 39.37 (1,000 mm)
Weight 7,260 lbs
B1 Axis Tool Spindle Position
Number of tool positions 6 (3 main and 3 sub)
Rotary tool speed 5,000 rpm
Main spindle tool collet ER16
Sub spindle tool collet ER11
Positioning angle 0 - 110 degree
Positioning method Servo controlled
TSUGAMI LASERSWISS SPECIFICATIONS:
Laser Specifications
Laser 250W Fiber
Cooling System Water Cooled
Laser Enclosure Classification Class 1
Max Cutting Speed 500mm/sec
Wavelength 1070 +/- 10nm
Frequency 2-20kHz
Pulse Width 0-CW
Power 25-250w
Nozzle Standoff Adjustment NC controlled
Variable Gas Pressure 5 to 350 psi
# of Gas Connections 2
Through Work Piece Coolant to 246 psi
Coolant as Fed From Front of Part to 1,000 psi
Tube Size Constraints
250W Fiber
Maximum Wall Thickness 0.039" (1.0mm)
Minimum OD 0.080" (2mm)
Maximum OD 0.787" (20mm)
Minimum OD: ID Ratio 3:1
2 Available 2017 & 2015

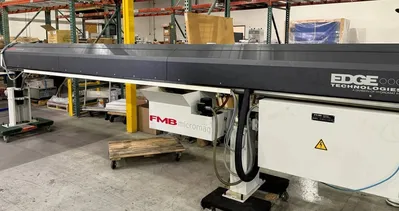

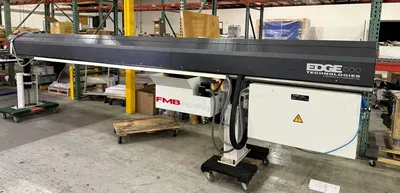

FMB Micromag .8-20mm 12’ Bar Feeder with Through
Pusher Coolant System
NSK High Speed Face Drill with EM3060 Motor, 90 Degree Spindle,
Motor Cord, Control Unit, Airline Kit, Mounting Bracket and
Installation Collets are CHK – Specify size, Max tool dia .250”, Max
RPM is 60,000
Rear Work Collection Through Sub Spindle Outside Machine
Includes: Exit Tube (specify size), Guarding, Collection Box
This device facilitates the ejection of Long parts through the sub
spindle

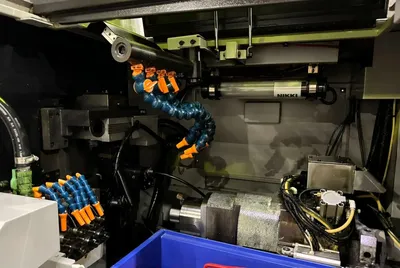

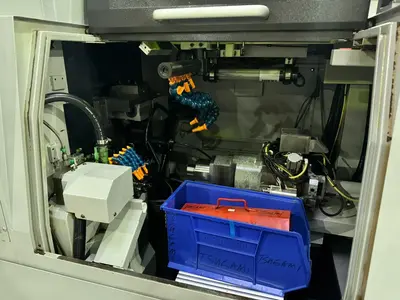

Standard Conventional Machining Equipment
(8) ½” Turning Tool Positions, (3) Live Tool Positions, (4) ID Positions for Main with ER Holders, (8) ID Positions
for Sub with (4) ER Holders, Parts Catcher with Conveyor and Basket, (2) Long Drill Positions, Servo Driven
Guide Bushing Assembly, Abile Software.
* The above tooling list was originally included when purchased new. Need to confirm that everything is still with it
