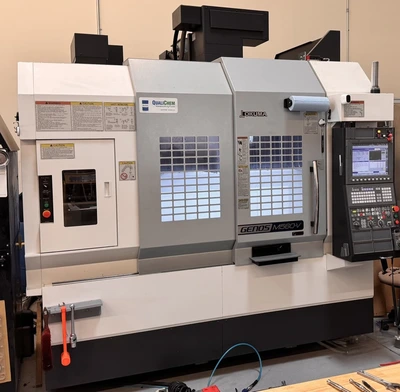

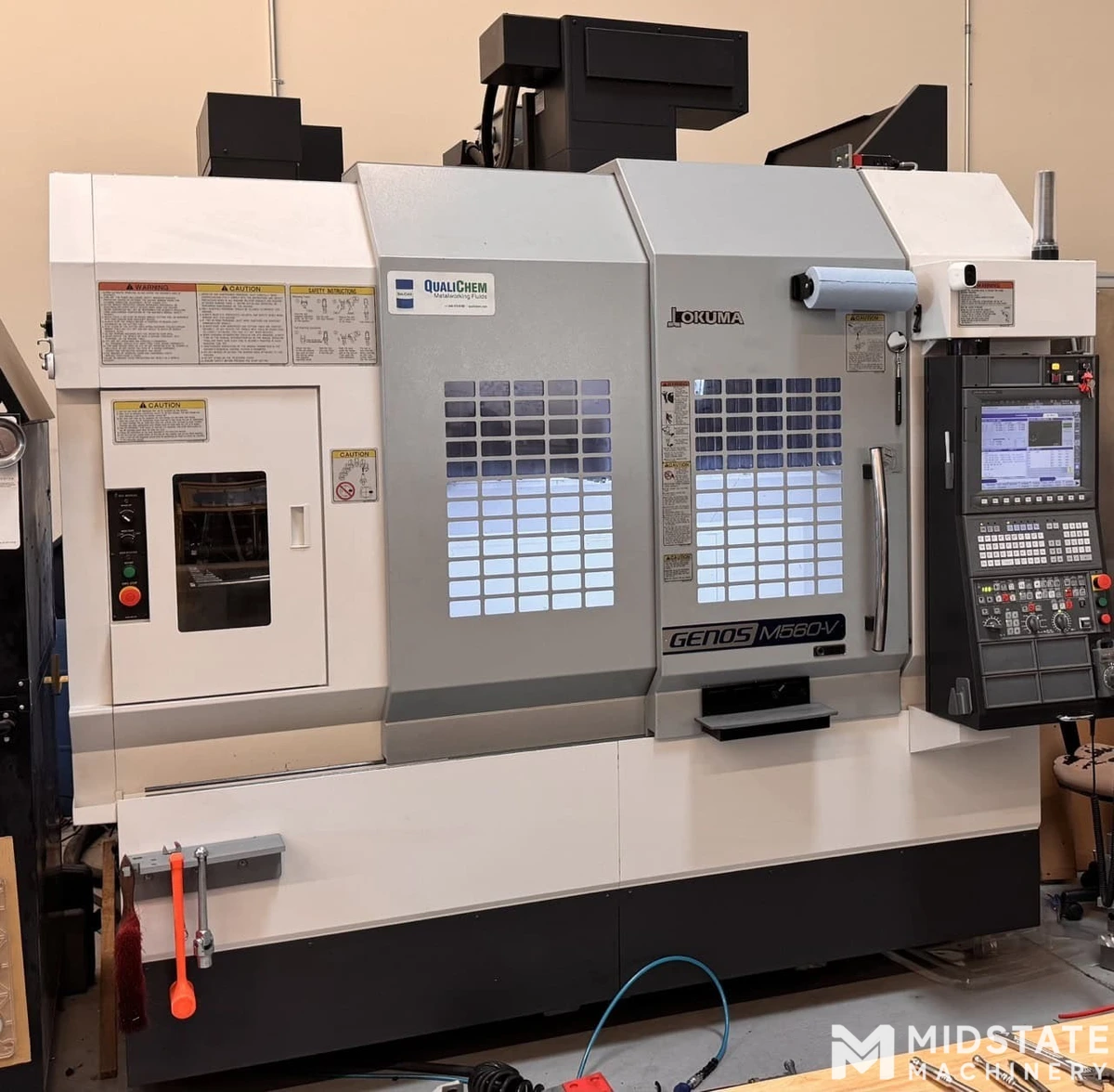

OKUMA GENOS M560-V CNC Vertical Machining Center, New 2021
Have one to sell?
ConditionUsed
1 available
OKUMA GENOS M560-V CNC Vertical Machining Center, New 2021.
15k RPM Spindle.
Tool Setter.
Renishaw OMP400.
Probe.
General Specifications:

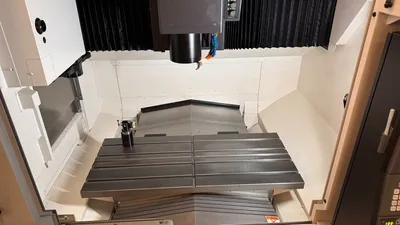

Table Size: 51.18″ x 22.05″
X Travel: 41.34″
Y Travel: 22.05″
Z Travel: 18.11″
Rapid X Rate: 1,575 IPM
Rapid Y Rate: 1,575 IPM
Rapid Z Rate: 1,262
Max Table Load: 1,980
Spindle Motor: 30 HP
Spindle Speeds: 15,000 RPM
Spindle Taper: CAT 40
Tool Capacity: 32
Approx. Shipping Weight: 17,000 Lbs.
Approx. Shipping Dimensions: 122″ L x 99″ W x 108″ H

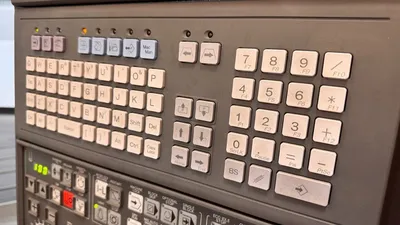

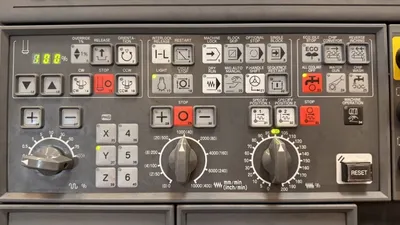

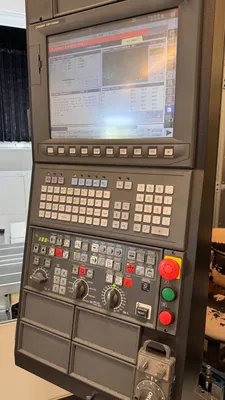

OSP-P300MA Controller
Renishaw OMP400
TSC Ready
No Conveyor
OKUMA GENOS M560-V CNC Vertical Machining Center, New 2021.
15k RPM Spindle.
Tool Setter.
Renishaw OMP400.
Probe.
Imperial
| X-Axis | 41.34" |
| Y-Axis | 22.05" |
| Z-Axis | 18.11" |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 32 |
| Taper | #40 |
| Table-W | 22.05" |
| Table-L | 51.18" |
| # Axis | 3 |
| Dimensions | 122″ L x 99″ W x 108″ H |
| Weight | 17,000 lbs |
General Specifications:
Table Size: 51.18″ x 22.05″
X Travel: 41.34″
Y Travel: 22.05″
Z Travel: 18.11″
Rapid X Rate: 1,575 IPM
Rapid Y Rate: 1,575 IPM
Rapid Z Rate: 1,262
Max Table Load: 1,980
Spindle Motor: 30 HP
Spindle Speeds: 15,000 RPM
Spindle Taper: CAT 40
Tool Capacity: 32
Approx. Shipping Weight: 17,000 Lbs.
Approx. Shipping Dimensions: 122″ L x 99″ W x 108″ H
OSP-P300MA Controller
Renishaw OMP400
TSC Ready
No Conveyor
