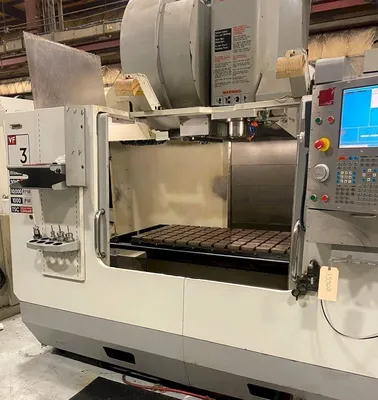

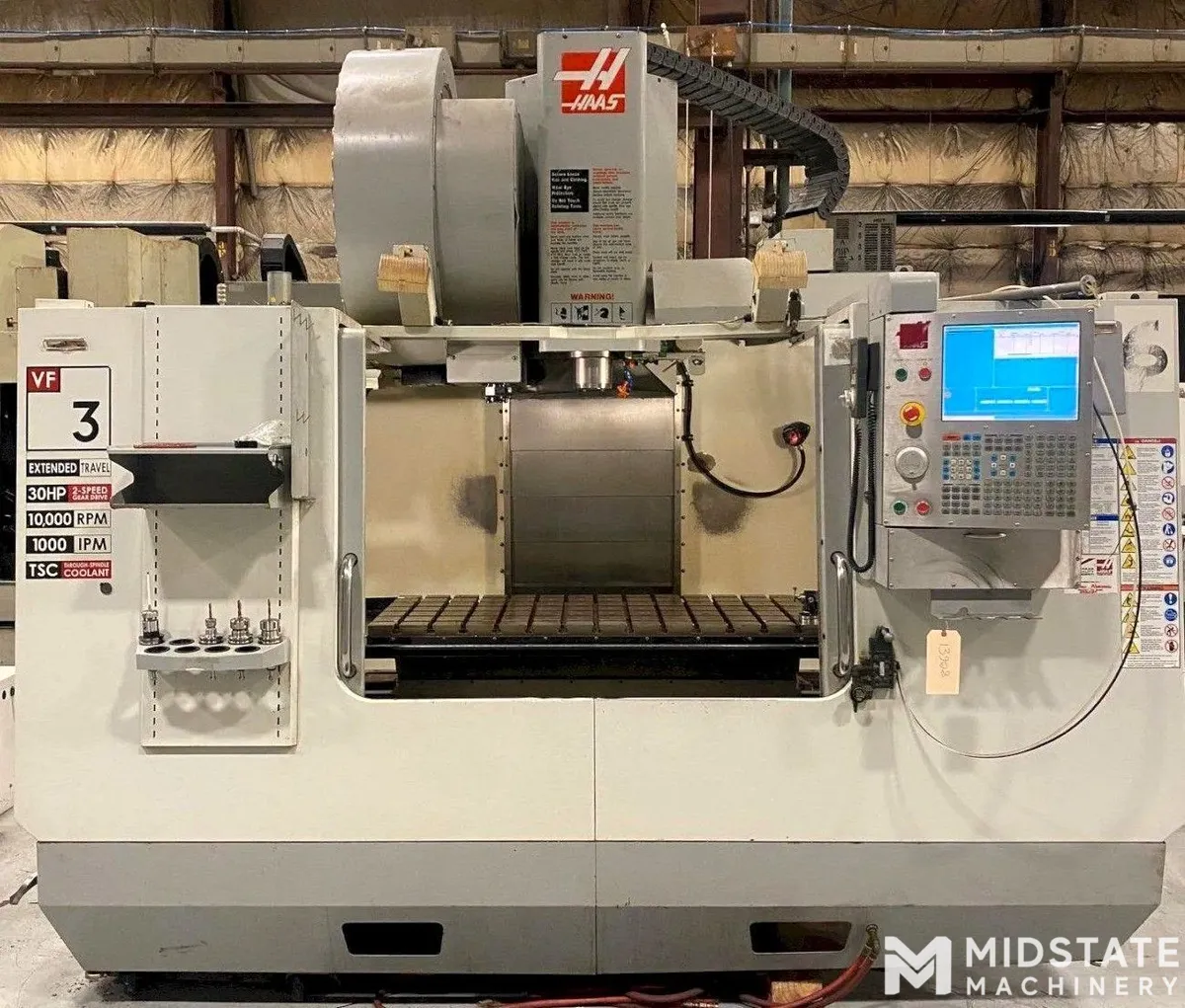

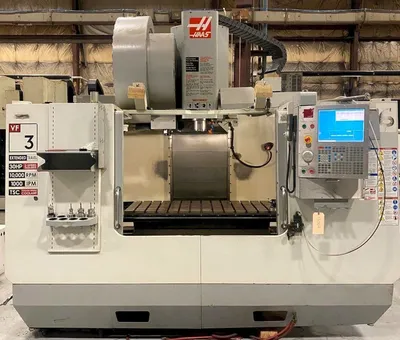

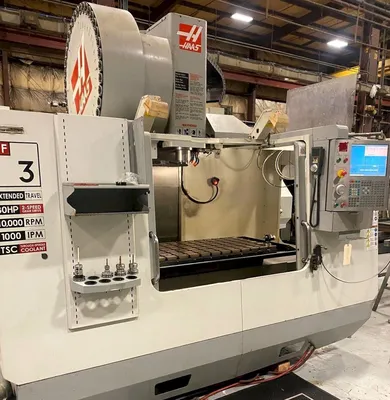

HAAS VF-3BYT CNC Vertical Machining Center, New in 2009
Have one to sell?
ConditionUsed
1 available
HAAS VF-3BYT CNC Vertical Machining Center, New in 2009
If needed, you can get a step down transformer from 480 to 220 45kva.
Taps are 190 to 260v on legend plate for machine

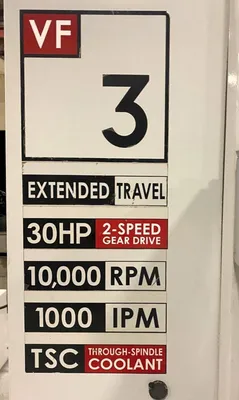

General Specifications:
# Axis 3 3

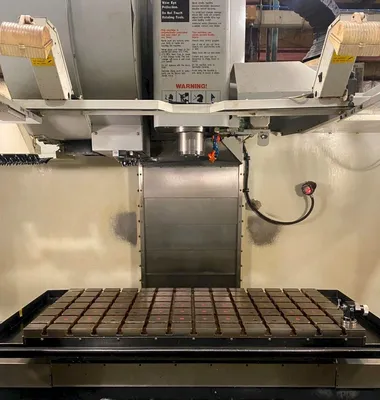

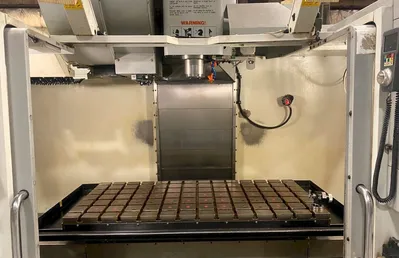

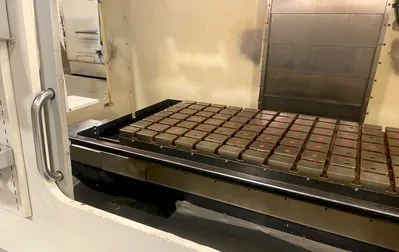

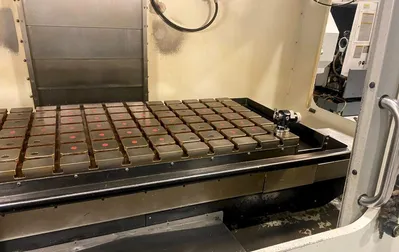

Table Size 54" x 24"
Table Capacity 3500 lb 1,587.57 kg
X-Axis Travel 40 in 1,016.00 mm
Y-Axis Travel 26 in 660.40 mm
Z-Axis Travel 25 in 635.00 mm

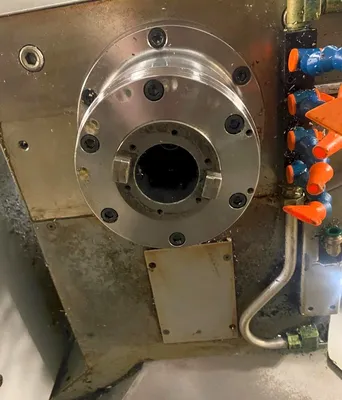

Spindle Taper CAT 40
Spindle Speed 10,000 rpm
Main Motor 30 hp
Tool Changer Capacity 40 40
Coolant Thru Spindle yes
Machine Dimensions 156" x 102" x 109"
Machine Weight 13000 lb 5,896.70 kg

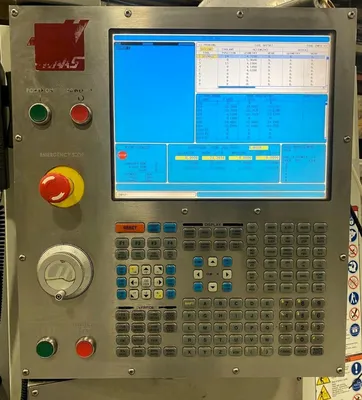

- Haas CNC Control

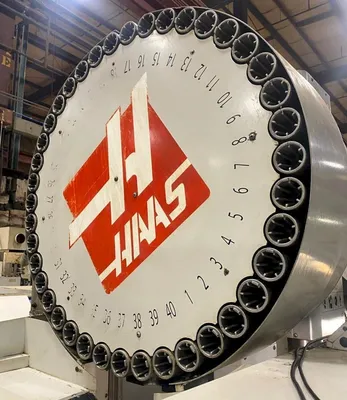

- 40 Station Sidemount Tool Changer
- High Pressure Coolant Thru Spindle
- Renishaw Probing

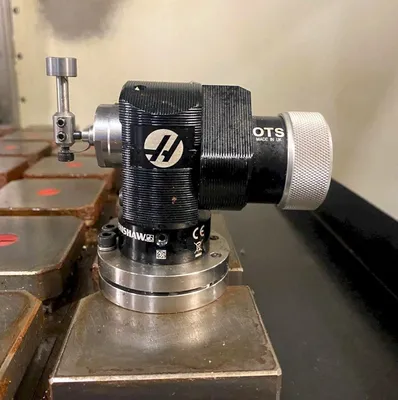

- Tool Touch Setter
- 2 Speed Gear Box
- 10,000 rpm Spindle
- Chip Auger
- Coolant Tank & Pumps
- Extended Y Axis Travel
- High Speed Machining (added in 2023)
- New Z-axis Ballscrew in 2023
HAAS VF-3BYT CNC Vertical Machining Center, New in 2009
If needed, you can get a step down transformer from 480 to 220 45kva.
Taps are 190 to 260v on legend plate for machine
Imperial
| X-Axis | 40" |
| Y-Axis | 26" |
| Z-Axis | 25" |
| Power | 30 hp |
| RPM | 8,100 RPM |
| # ATC | 40 |
| Taper | CAT 40 |
| Table-W | 54" |
| Table-L | 24" |
| # Axis | 3 |
| Control | CNC (HAAS CNC) |
| Dimensions | 156" x 102" x 109" |
| Weight | 13000 lbs |
General Specifications:
# Axis 3 3
Table Size 54" x 24"
Table Capacity 3500 lb 1,587.57 kg
X-Axis Travel 40 in 1,016.00 mm
Y-Axis Travel 26 in 660.40 mm
Z-Axis Travel 25 in 635.00 mm
Spindle Taper CAT 40
Spindle Speed 10,000 rpm
Main Motor 30 hp
Tool Changer Capacity 40 40
Coolant Thru Spindle yes
Machine Dimensions 156" x 102" x 109"
Machine Weight 13000 lb 5,896.70 kg
- Haas CNC Control
- 40 Station Sidemount Tool Changer
- High Pressure Coolant Thru Spindle
- Renishaw Probing
- Tool Touch Setter
- 2 Speed Gear Box
- 10,000 rpm Spindle
- Chip Auger
- Coolant Tank & Pumps
- Extended Y Axis Travel
- High Speed Machining (added in 2023)
- New Z-axis Ballscrew in 2023
