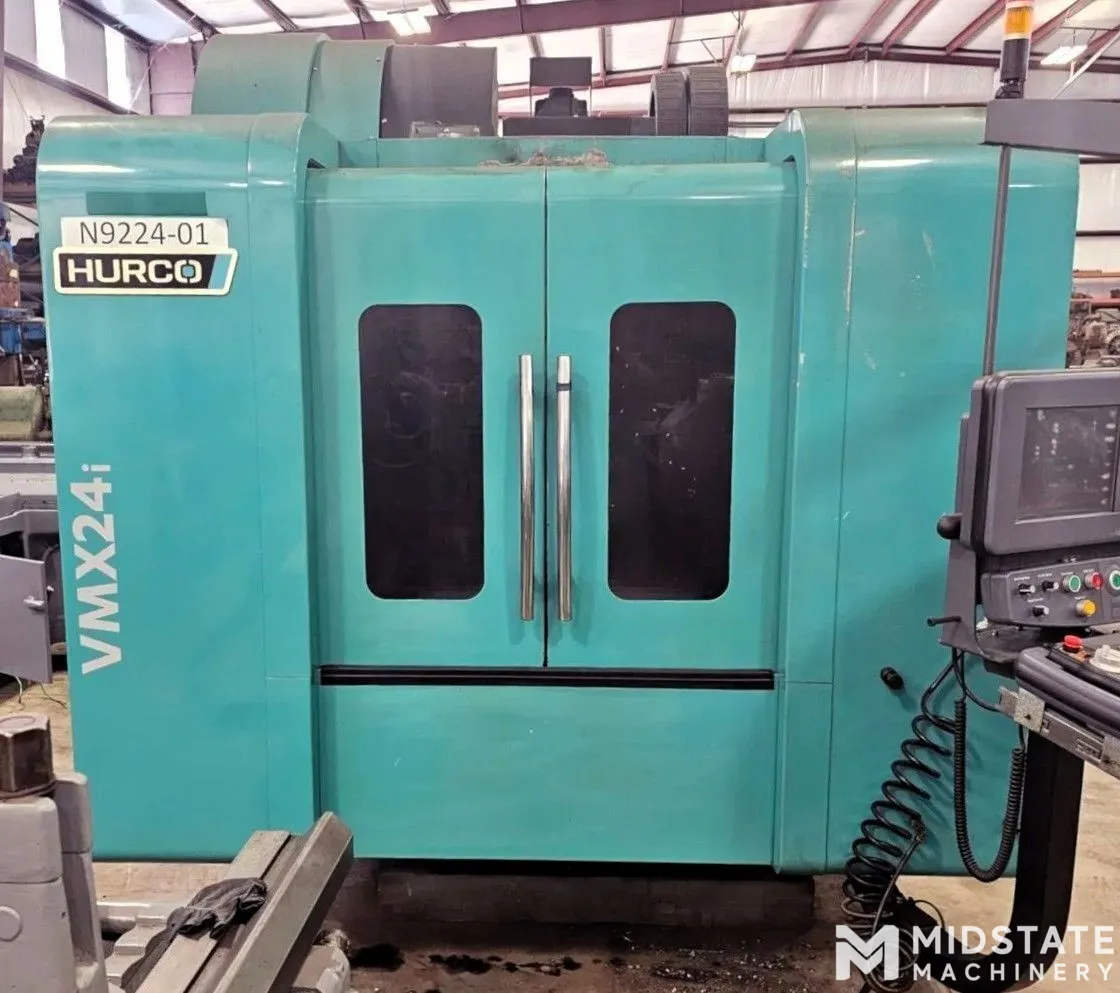

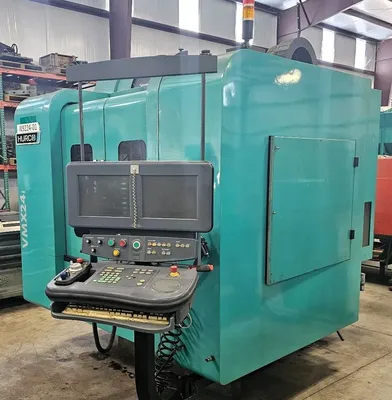

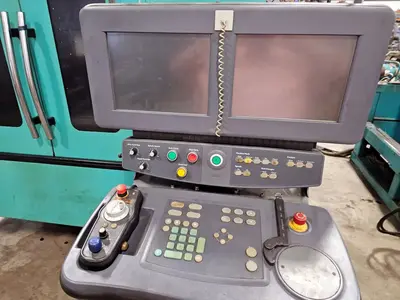

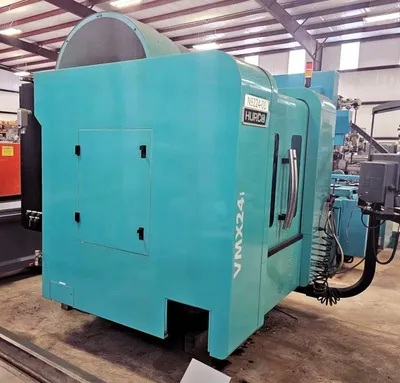

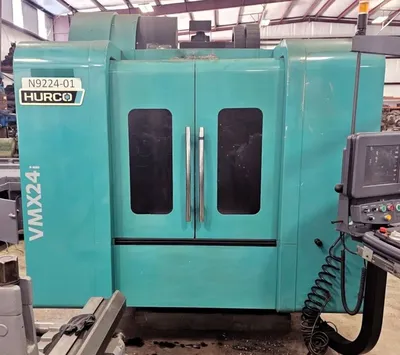

HURCO VMX24 CNC Vertical Machining Center, New in 2014

General Specifications:

Table Size........................................20″ x 30″
Maximum Weight on Table...........................3,300 lbs.
# Axis............................................3
Number Axis.......................................3
X-Axis Travel.....................................24"
Y-Axis Travel.....................................20"
Z-Axis Travel.....................................24"
Spindle Speed.....................................12,000 RPM
Spindle Taper.....................................CAT-40
Spindle Torque Peak...............................70 ft-lbs. @ 900 rpm
Main Motor........................................12
Tool Changer Capacity.............................30
Floor Space.......................................R-L 153″ x F-B 86″
Height............................................110″
Machine Weight....................................9,100 Lbs.
Chip Conveyor.....................................Yes
High Pressure Coolant.............................Yes
