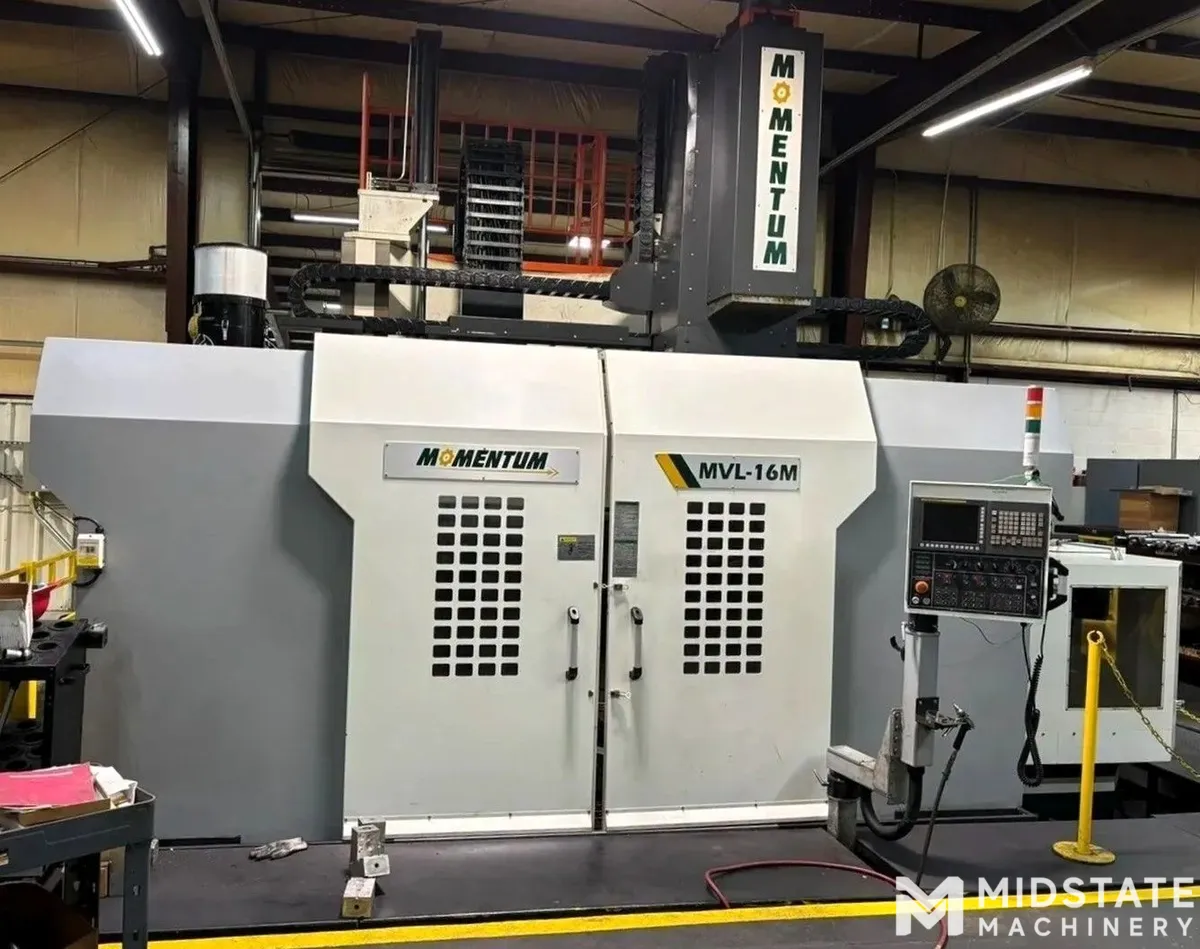

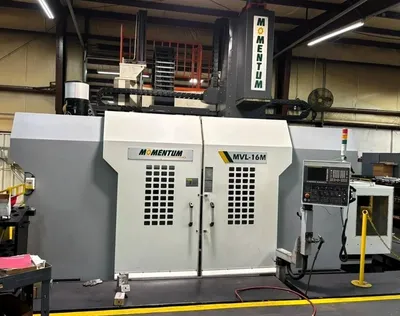

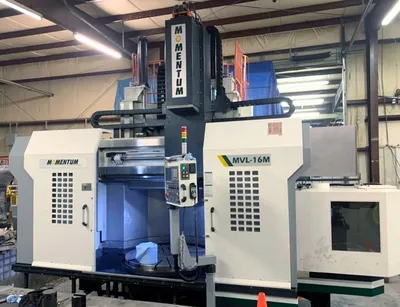

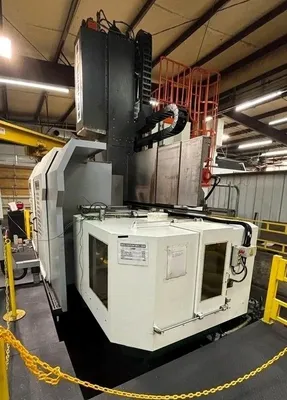

Momentum MVL-16M CNC Boring Mill w/ Live Tooling & C-Axis, New in 2021

General Specifications:

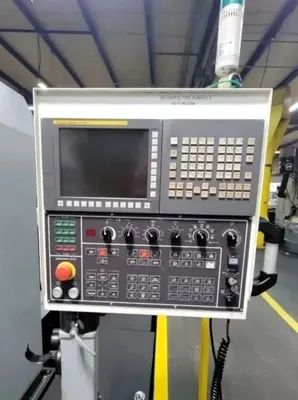

Control.................................................Fanuc Oi-TF CNC
Less Than 3,000 Hour of Turning Time
Capacity:

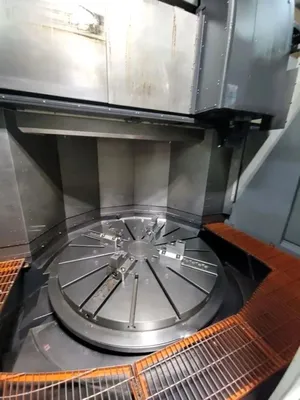

Table Diameter T-Slotted................................62.99"
Max. Table Weight.......................................22,046 Lbs.
Max. Table Torque.......................................17,701
Boring Mill Jaws........................................4
Maximum Turning Diameter................................78.74"
Maximum Height Under Ram Face...........................70.08"
Maximum Cutting Height..................................63.18"
Table Speeds Low / High Range...........................65 To 280 RPM
Milling Spindle Speeds..................................486-3000 RPM
Milling Spindle Taper...................................#50
Max Milling Spindle Torque..............................604
Ram Diameter............................................10"X10"
Ram Vertical Travel Z Axis..............................39.37"
Ram Horizontal Travel...................................45.87"
Rail Travel.............................................35.43"
Feed Rate...............................................0.039 To 78.4 IPM
Rapid Traverse..........................................393 IPM
Floor Space.............................................R-L 161" x F-B 204"
Machine Height..........................................213.78"
Machine Weight..........................................82,000 Lbs.
Main Motor..............................................73.7 / 60.3 HP / 60 HP T220/3/60
X And Z Axis Servo Motors...............................9.4 With 3:1 Reduction
Milling Spindle Horsepower..............................29.5
CF Axis Motor...........................................9.4 With 360:1 Reduction
Required Electrical Power...............................3-Ph 460V ±10%; 60Hz ±1%
Main Breaker Size.......................................175 Amp, 139 kVA @ 460V
CTS / Flood / Bed Wash Pumps Bar [PSI], L/min...........87 and 100
Tank Volume Liters Gallons...............................157
Tank Filtration, Basket / Secondary......................0.040/0.024]
