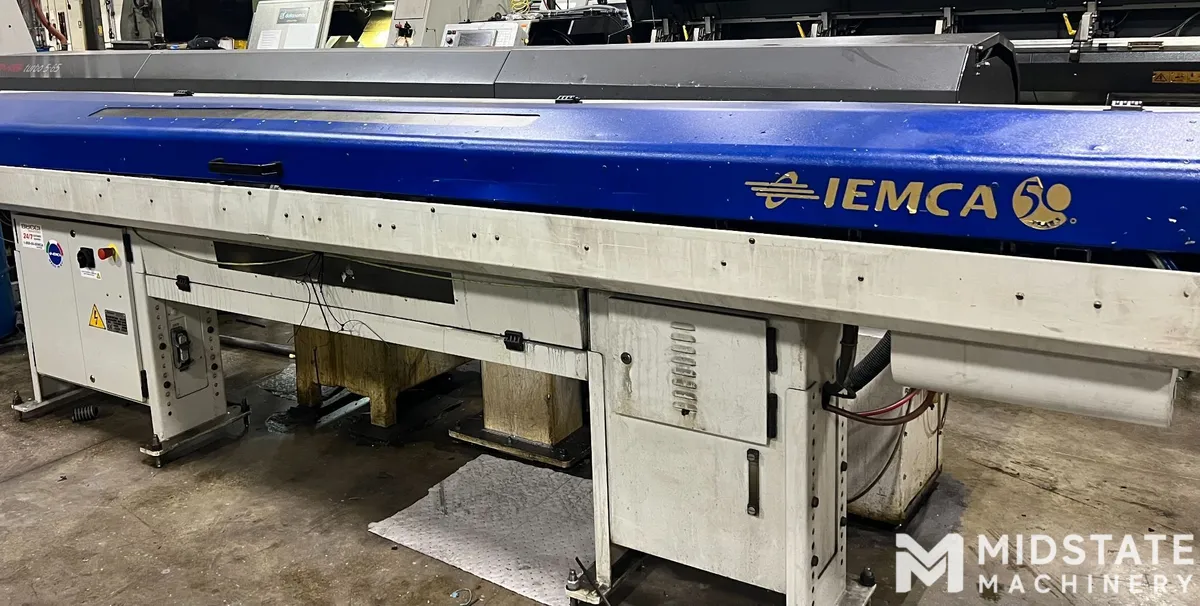

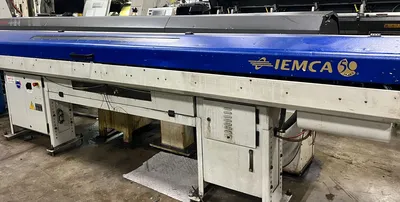

Iemca Elite 220 Magazine Barfeed, New in 2012

General Specifications:
Bar Size Capacity: 2mm - 20mm (.078" - .787")
Bar Length Capacity: 12'
Maximum Bar Length: Feeder Designation +2"
Minium Bar Length: 63"
Magazine Capacity:
-16 Bars up to .5" Diameter
-20 Bars up to .394" Diameter
-28 Bars up to .295" Diameter
Maximum Remnant Length: 15.75"
Operating Voltage: 230 Volts AC 3-Phase
Control Voltage: 24 Volts DC
Total Power Required: 1.8 Kw
Compressed Air Required: 90 PSI, 10 CFM
Feeding Speed: 39"/Sec (Adjustable)
Feeding Accuracy: +/- .008"
Bar Change Time: 19 Seconds for 12' Bar
Bar Straightness Required: .007"/Foot

Machine Dimensions: 170" x 17" x 50"
Machine Weight: 1,500 lbs
